12KW 48Vdc Hybrid Inverter 110/240Vac Split Phase Supports 6 Units in Parallel
SKU: POW-SunSmart 12KP

12KW 48Vdc Hybrid Inverter 110/240Vac Split Phase Supports 6 Units in Parallel

Sale price$1,599.00 USD Regular price$1,999.00 USD
Save 20%

01

Dual 200Amp MPPT Solar Charge Controllers for Higher Power

POW-SunSmart 12KP features 2 built-in 200Amp MPPT solar charge controllers, each with 99.9% efficiency and 22A current(Max. PV Input) in a single circuit. With support for 2 solar inputs and simultaneous tracking of 2 solar maximum power charging/carrying capacity functions, it maximizes your solar power efficiency.

02

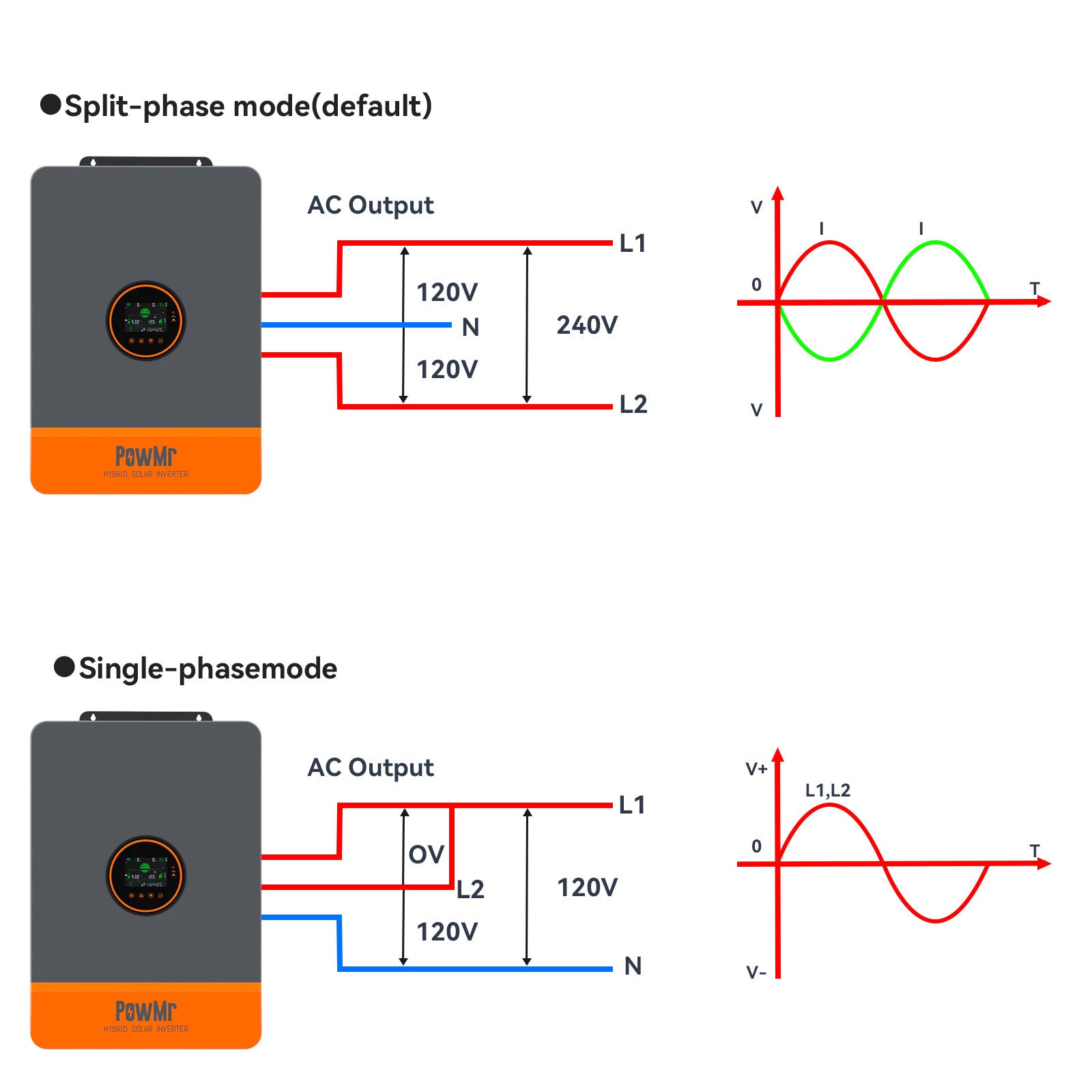

12kW Pure Sine Wave Split Phase Inverter

This 110V/240 Split Phase Inverter offers 4 voltage levels per phase: 100Vac, 105Vac, 110Vac, and 120Vac. It supports CAN, USB, and RS485 communication for enhanced connectivity. Experience reliable and efficient power conversion with this versatile inverter, perfect for a variety of applications.

03

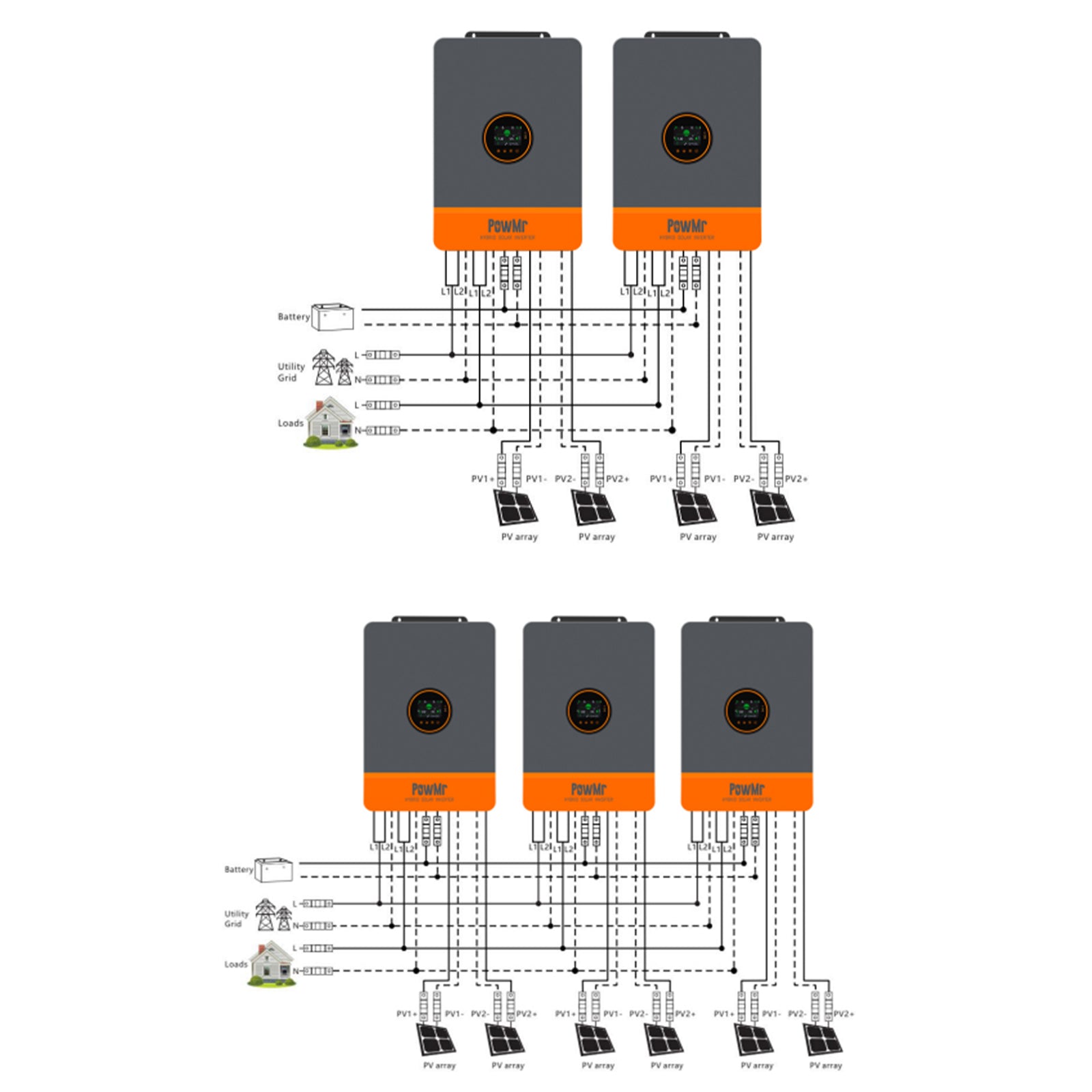

Support Up to 6 Units in Parallel Connection

The 12KW solar inverter charger allows connection of up to 6 units simultaneously. This configuration grants a total power output of up to 72000W, catering to various applications such as residential, office, commercial, and industrial use. With its dependable and efficient design, as well as its effortless expandability, this solar inverter charger is an ideal choice for extensive solar systems.

working modes of sunsmart 10k/10ke
04

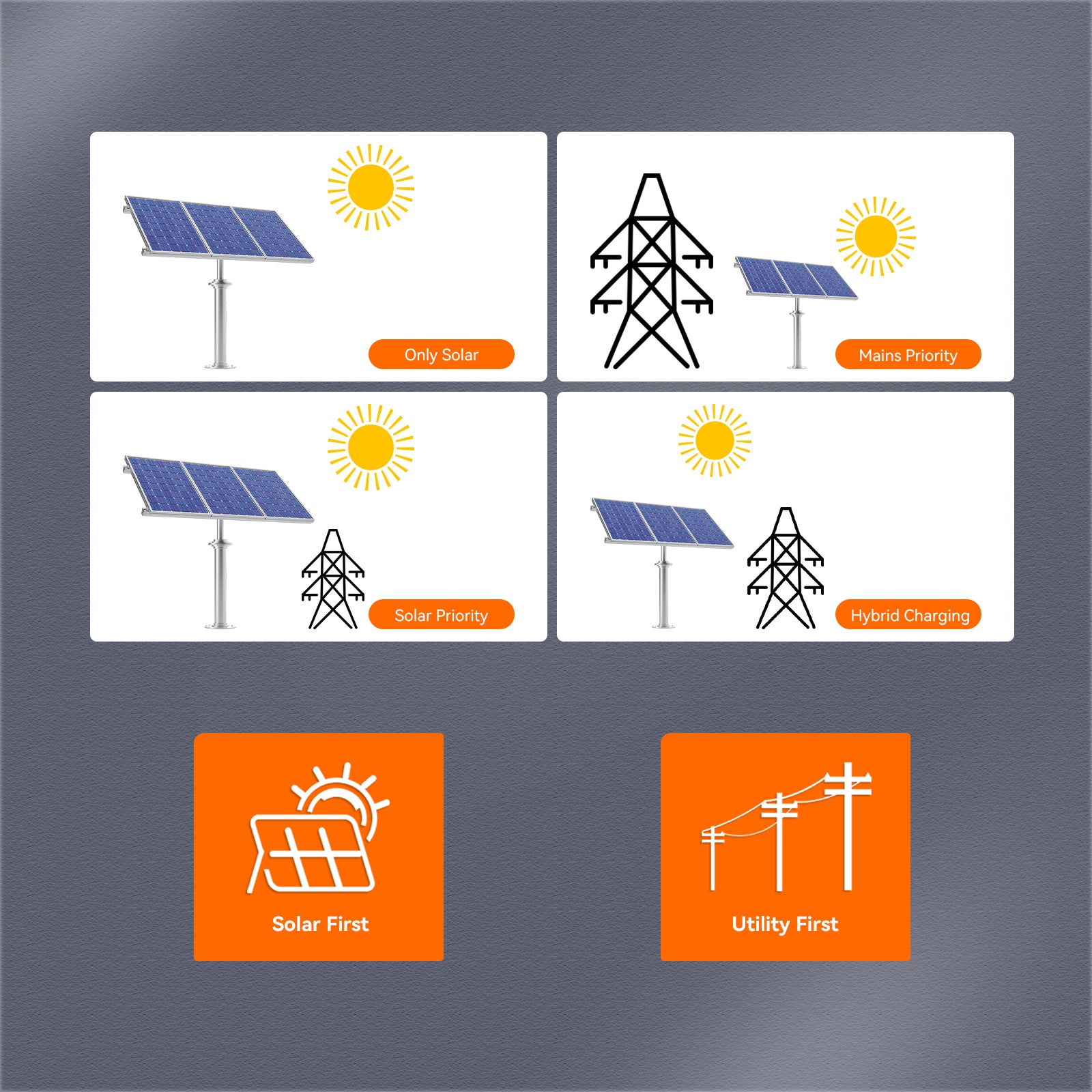

Flexible Charging & Output Modes

Versatile solar inverter that comes equipped with four charging modes (Solar Only, Mains Priority, Solar Priority, Hybrid Charging) and 2 output modes(Utility Bypass and Inverter Output). Also, it features full system protection, including protection against short circuits, over/under voltage, overload, and backfill, among other features.

05

Peak Shaving & Valley Filling

With the definable time-solt, this inverter charger enables efficient peak and valley power conversion. Excess solar energy generated during the day is intelligently stored in the battery, ready for use by home appliances during the evening peak of electricity consumption. This not only ensures reliable electricity usage but also significantly reduces energy expenses. Zero battery discharge time enables inverter as UPS power supply.
01

Dual 200Amp MPPT Solar Charge Controllers for Higher Power

POW-SunSmart 12KP features 2 built-in 200Amp MPPT solar charge controllers, each with 99.9% efficiency and 22A current(Max. PV Input) in a single circuit. With support for 2 solar inputs and simultaneous tracking of 2 solar maximum power charging/carrying capacity functions, it maximizes your solar power efficiency.

02

12kW Pure Sine Wave Split Phase Inverter

This 110V/240 Split Phase Inverter offers 4 voltage levels per phase: 100Vac, 105Vac, 110Vac, and 120Vac. It supports CAN, USB, and RS485 communication for enhanced connectivity. Experience reliable and efficient power conversion with this versatile inverter, perfect for a variety of applications.

03

Support Up to 6 Units in Parallel Connection

The 12KW solar inverter charger allows connection of up to 6 units simultaneously. This configuration grants a total power output of up to 72000W, catering to various applications such as residential, office, commercial, and industrial use. With its dependable and efficient design, as well as its effortless expandability, this solar inverter charger is an ideal choice for extensive solar systems.

04

Flexible Charging & Output Modes

Versatile solar inverter that comes equipped with four charging modes (Solar Only, Mains Priority, Solar Priority, Hybrid Charging) and 2 output modes(Utility Bypass and Inverter Output). Also, it features full system protection, including protection against short circuits, over/under voltage, overload, and backfill, among other features.

05

Peak Shaving & Valley Filling

With the definable time-solt, this inverter charger enables efficient peak and valley power conversion. Excess solar energy generated during the day is intelligently stored in the battery, ready for use by home appliances during the evening peak of electricity consumption. This not only ensures reliable electricity usage but also significantly reduces energy expenses. Zero battery discharge time enables inverter as UPS power supply.

working modes of sunsmart 10k/10ke

PowMr Hybrid Inverter Specification

Important Notice:

If you're planning to sell electricity, please contact us in advance before making a purchase. Thank you for choosing us.

Model

POW-SUNSMART 12KP

Rated Load Power (W)

12000

AC Output (V)

110/220 (±5% Ajustable)

DC Output (V)

48

Phase

Single Phase / Split Phase (110/240Vac)
