The industrial energy storage sector is rapidly expanding, becoming essential for resilience and cost efficiency. According to BloombergNEF (BNEF), the global market for energy storage is expected to grow 15-fold by 2030, driven by increasing industrial demand.
As businesses confront volatile energy prices and push for sustainability, strategic energy storage investments are essential rather than optional. This guide equips industry leaders with the knowledge to make informed decisions, providing insights into cost analysis, system sizing, technology comparisons, and adherence to important safety standards.
What is Industrial Energy Storage?
At its core, an industrial energy storage system is far more than a large-capacity battery. Due to its high energy density, elevated DC voltage, significant power rating, and complex operating conditions, such systems require advanced safety design, precise power control, and intelligent coordination across multiple subsystems. In practice, an industrial energy storage system functions as a sophisticated energy management asset, engineered to deliver measurable financial returns while enhancing power reliability and operational resilience.
A typical industrial energy storage system consists of a battery system, PCS, BMS, EMS, STS (optional), MPPT (optional), control system, power distribution system, and fire protection system.
Industrial Energy Storage System Architecture

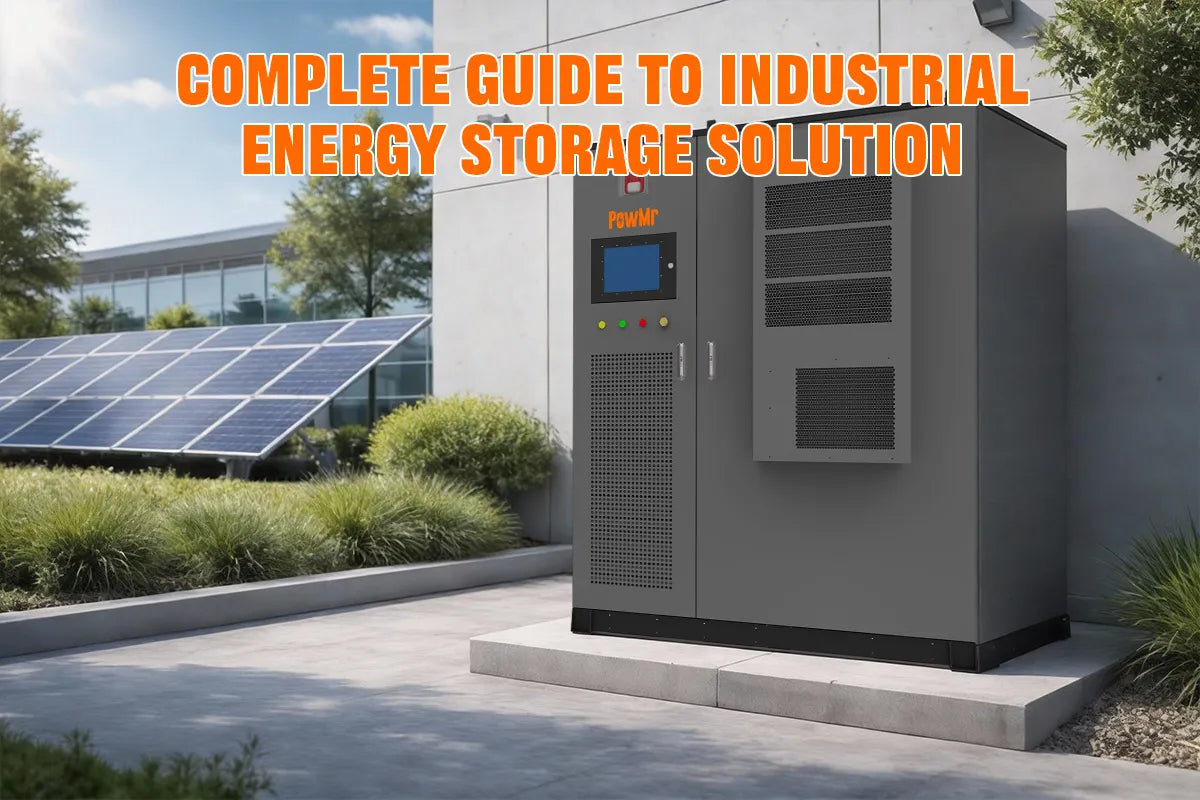

Industrial energy storage systems integrate modular batteries, power conversion, management intelligence, and optional PV and switching capabilities to optimize energy reliability, efficiency, and operational resilience. The PowMr POW-LIO241 illustrates how such systems combine these components into a compact, scalable, and high-performance solution with advanced energy management and hybrid PV-storage functionality.
Battery System
The heart of the system, typically composed of lithium-ion cells organized into modules and racks housed within a protective enclosure. This subsystem provides high energy density, fast response, and scalable capacity.
The PowMr POW-LIO241 uses Lithium Iron Phosphate (LFP) cells with a configuration of 1P240S, achieving a nominal DC voltage of 768 V and a total rated energy of 241 kWh. Its modular 1P16S design enables scalable deployment and easy maintenance. Operating from –20°C to 50°C with forced-air HVAC cooling, it offers high thermal and cycle stability for industrial workloads.
Battery Management System (BMS)
The BMS is the intelligence layer that monitors the health of each cell, manages charging and discharging, and ensures safe operation by preventing over-voltage, under-voltage, over-current, and thermal events.
In the PowMr POW-LIO241, the BMS continuously tracks voltage, current, state of charge (SOC), state of health (SOH), and temperature for every cell, while communicating with the PCS via CAN bus to enforce protective charging and discharging limits, enable real-time fault detection, and support predictive maintenance for reliable, long-lasting operation.
Fire Suppression System
A dedicated safety subsystem designed to detect and mitigate thermal runaway events. Industrial systems commonly employ gas-based or aerosol fire suppression solutions tailored specifically for lithium-ion battery installations.
PowMr POW-LIO241 incorporates an aerosol-based fire suppression system with smoke and flame detection sensors. The system monitors temperature, smoke, and flame conditions inside the cabinet, enabling autonomous fire prevention and mitigation. This multi-layer safety approach ensures secure, long-term operation in industrial and commercial environments.
Power Conversion System (PCS)
PCS (Power Conversion System) manages electricity between batteries, loads, and the grid, controlling charging, discharging, grid synchronization, and energy management functions such as peak shaving and frequency regulation.
For example, the PowMr POW-LIO241 features a PCS with a 100kW bidirectional three-phase inverter using four-bridge-arm topology, enabling active and reactive power control, unbalanced load handling, and parallel operation for scalable energy flow coordination between batteries, facility loads, and the grid.
Energy Management System (EMS)
The intelligence layer of the entire system. The EMS determines when and how the battery charges and discharges by predictive analytics and optimization. Using advanced algorithms, it analyzes utility tariffs, weather forecasts, market signals, and facility load profiles to maximize economic performance.
The EMS of PowMr solution enables peak shaving, valley filling, energy arbitrage, and backup power strategies while supporting grid-connected, off-grid, and hybrid operation modes. By analyzing load profiles, utility tariffs, and PV generation data, it optimizes the timing and magnitude of battery dispatch. Communication via Ethernet with IEC 61850 and Modbus TCP/IP protocols, along with NTP time synchronization, ensures coordinated and precise system operation.
Optional PV and Switching Capabilities
Static Transfer Switch (STS) – Optional
The STS ensures continuous power to critical loads by seamlessly switching between the grid and battery supply during outages. By detecting power interruptions instantly, it transfers load in milliseconds, preventing downtime for sensitive equipment and maintaining operational reliability in industrial and commercial applications.
PowMr POW-LIO241 optionally integrates a 200kW STS capable of switching in less than 20 milliseconds, enabling uninterrupted operation for industrial and commercial applications where power continuity is essential.
Maximum Power Point Tracking (MPPT) – Optional
By the end of 2024, the global installed capacity of PV + battery storage surpassed 85 GW (170 GWh). As more battery storage pairs with solar generation, industrial systems increasingly integrate Maximum Power Point Tracking (MPPT) to optimize energy extraction under varying sunlight.
With up to 120 kW PV input across four channels (200–900 V), the PowMr POW-LIO241 enables hybrid PV-storage operation, reducing grid reliance and lowering energy costs for industrial and commercial sites.
Types of Industrial Energy Storage Technologies
While lithium-ion technology remains the market leader, choosing the right chemistry is a critical decision. The choice hinges on the primary application, safety protocols, and desired operational lifespan. Research from the National Renewable Energy Laboratory (NREL) continues to highlight the maturation of various technologies for specific industrial needs.
Market Landscape: Technology Comparison & Pricing Analysis
Based on 2024-2026 U.S. market data, here's how major industrial energy storage technologies compare:
| Technology | Capacity Range | Price ($/kWh) | Best For |
|---|---|---|---|
| Lithium Iron Phosphate (LFP) | 200 kWh – 10+ MWh | $180–$380 | Manufacturing peak shaving, daily cycling, process backup |
| Lithium NMC | 200 kWh – 5 MWh | $250–$500 | High energy density applications, mobile equipment |
| Flow Batteries | 1 MWh – 50+ MWh | $300–$600 | Long-duration discharge (6–10 hours), heavy industry |
| Lead-Acid | 100 kWh – 1 MWh | $150–$300 | Legacy backup systems, forklift charging |
Note: Prices reflect complete system costs including battery, inverter, BMS, EMS, enclosure, and installation labor. Large-scale projects (>1 MWh) typically achieve 20-30% lower $/kWh through economies of scale.
At $182.57/kWh ($43,999 for 241 kWh), the PowMr POW-LIO241 offers industrial-grade performance at light industrial pricing, positioned 52% below typical industrial ESS ($380-$450/kWh equipment cost).
For a 241 kWh standalone system, competing industrial solutions typically range from $72,000 to $91,000, while the PowMr POW-LIO241 delivers the same capacity for $43,999, representing savings of $28,000 to $47,000.
How to Size Your Industrial Energy Storage System
Proper system sizing is the foundation of a successful energy storage investment. Under-sizing leaves savings unrealized, while over-sizing increases upfront cost and extends payback periods. A structured sizing process helps industrial decision-makers balance performance, economics, and risk.
Industrial ESS sizing ultimately answers three core questions:
- How much power must be reduced? (kW). This determines the PCS (inverter) rating
- How long must the reduction be sustained? (hours). This defines the discharge duration
- How much energy is required? (kWh). This determines battery capacity
The relationship between these parameters is:
Energy (kWh) = Power (kW) × Duration (hours) ÷ System Efficiency
Step 1. Understand Your Facility's Demand Profile
Begin by collecting at least 12 months of utility interval data (15-minute or hourly readings). This data shows how your facility consumes power, when peaks occur, and how long they last, forming the foundation for accurate ESS sizing.
| What to Find | Where to Find It | Why It Matters |
|---|---|---|
| Peak Demand (kW) | Highest power reading on monthly bills | Determines your target for reduction |
| Peak Timing | Hour/day when peaks occur | Shows when to discharge batteries |
| Peak Duration | How long peaks last | Determines battery capacity needed |
| Demand Charge Rate | Utility bill ($/kW/month) | Calculates your ROI potential |
| Baseline Demand | Typical low-load periods | Shows when to charge batteries |
Industrial electricity rate structures make ESS sizing fundamentally different from commercial or residential applications. Demand charges typically account for 40–70% of total electricity costs and are based on the highest 15–30-minute peak each billing cycle.
Additional mechanisms such as ratchet clauses, seasonal premiums, and coincident peak charges amplify peak risk, making worst-case sizing economically justified. Focus on demand charge reduction to quantify the financial opportunity, as peak shaving drives the majority of savings.
Step 2. Calculate Required Power Capacity (kW)
The next step is to size the PCS, which determines how much power you can draw from or send to the battery.
Required Power (kW) = Peak Reduction Target × Safety Margin
The required PCS power can be calculated by multiplying the peak reduction target by a safety margin of 30 to 40 percent. This margin accounts for system inefficiencies, future load growth, simultaneous backup power needs, and unbalanced three-phase loads, ensuring the system meets peak reduction targets while providing operational flexibility.
Step 3. Calculate Required Energy Capacity (kWh)
Required Energy (kWh) = (Power Output × Duration × Safety Factor) ÷ (Usable DoD × System Efficiency)
Battery capacity determines how long the ESS can sustain the required power output during peak events. The required energy in kilowatt-hours is calculated by multiplying the power output by the duration of the peak and a safety factor, then dividing by the usable depth of discharge and the system efficiency.
Safety factors of 1.2 to 1.5 are used to account for battery degradation over time, while LFP batteries typically allow 80 percent usable DoD to maximize lifespan.
These considerations are important because a conservative DoD extends battery life from approximately 4,000 cycles to over 6,000 cycles, efficiency losses are minor compared to demand charge savings, and safety factors ensure the system continues to meet performance targets even after ten years of operation.
Key Benefits for Industrial Energy Storage System
An investment in energy storage is a strategic move that delivers tangible financial and operational benefits.
- Demand Charge Reduction: This remains the primary value driver. Industrial facilities pay significant "demand charges" based on their highest 15-minute power consumption peak each month. A battery system dispatches power during these peaks, effectively lowering this ceiling. A well-managed demand charge reduction battery typically cuts 20-40% from this portion of a utility bill.
- Energy Arbitrage (Time-of-Use Savings): For facilities on time-of-use (TOU) rates, the system charges with cheap off-peak energy and discharges during expensive on-peak hours, yielding an additional 5-15% in bill savings.
- Enhanced Power Quality: Voltage sags or frequency fluctuations can damage sensitive manufacturing equipment, leading to costly downtime. An IESS acts as a buffer, providing clean, stable power and protecting critical machinery.
- Operational Resilience: In the event of a grid outage, the storage system provides seamless backup power to critical loads, preventing production losses that can amount to millions of dollars per hour.
- Renewable Energy Integration: For facilities with onsite solar, storage allows you to capture excess solar generation for later use, maximizing the value of your renewable asset and creating a foundation for Microgrid systems.
