Wiring your solar panels is more than just connecting a few cables. It’s about designing a safe, efficient system that matches your power needs and works seamlessly with the rest of your solar setup. A solar panel wiring diagram is the blueprint that makes this possible.
In this guide, we’ll walk through how to design your wiring layout, the essential components you’ll need, and how to interpret or create diagrams for both grid-tied and off-grid systems.
Importance of a solar panel wiring diagram
A solar array wiring diagram is a visual blueprint that shows how multiple solar panels are electrically connected to form a complete solar array.
It illustrates not only the wiring configurations but also how these panels connect to key system components like the charge controller, inverter, and batteries.
Additionally, the diagram indicates the proper placement of essential protective devices such as fuses and circuit breakers.
Correct wiring is critical because it:
- Ensures the solar array's output meet the specifications of other component in a solar system
- Maximizes power output and efficiency
- Prevents safety hazards like electrical shorts and overvoltage
- Simplifies troubleshooting and maintenance
1. System sizing
Everything begins with understanding how much energy your system needs to produce. Calculate your average daily electricity consumption, usually measured in kilowatt-hours (kWh). This step is critical because it influences the size and number of solar panels, the battery bank capacity, and the inverter size.
With your energy needs in hand, you can start choosing components that fit those requirements and designing a wiring layout to support them.
2. Choose the core equiments
A wiring diagram brings together all the key components of your solar system, reflecting the interplay between your system’s core parts. Here’s a brief look at the basic of the diagram before you put pen to paper.
- Solar panels: Once you know the solar panel wattage needed, you can design how to physically wire, arrange the panels to achieve that wattage and system voltage and determine how many solar panels do you need.
- Solar charge controller: Determine the type of charge controller needed and if parallel charge controllers are required to regulate energy from different solar strings charging a common battery, based on your panel arrangement.
- Inverter: Inverter wiring varies by type. Basic power inverters have simple DC inputs, while inverter-chargers include built-in charge controllers. Also, single-phase, split-phase, or three-phase AC outputs affect connections to your electrical panel.
- Energy storage battery: Battery connections must be planned to match charging voltage from the charge controller or inverter-charger and to minimize energy loss while maintaining current balance. Proper arrangement and grouping reduce high current issues and improve system efficiency.
3. Draw out your connections
Once you’ve chosen your components, translate the plan into a clear diagram. Wiring is more than linking positive and negative terminal. Each section of the system requires different cable sizes and protections.
- The size and type of wire cable between each part will vary, starting from the solar panels, then moving to the charge controller, battery bank, inverter, and finally your loads.
- Consider whether your panels will be wired in series, parallel, or a hybrid arrangement, as this affects both wire size and protective devices.
- Include all accessories such as breakers, fuses, combiner boxes, and disconnects in their proper locations.
Solar panels connection diagram
In this section, we provide examples of solar panel connection diagrams in both series and parallel configurations. The goal is to highlight the essential hardware needed for each setup so you can prepare the right equipment before installation.
For detailed step-by-step instructions, please refer to our dedicated guides:
1️⃣ How to connect solar panels in series
2️⃣ How to connect solar panels in parallel
Solar panels series connection diagram
When wiring panels in series, the positive terminal of one panel connects to the negative terminal of the next. This setup increases the total system voltage while keeping the current the same, which can be useful for reducing line losses over longer cable runs.
Solar panels series wiring hardwares required:
- Solar panel wire: Usually smaller gauge is sufficient since current remains low, same size from the panel to the breaker and charge controller.
- MC4 connectors: Secure and weatherproof connections between panels.
- DC circuit breakers: Provide overcurrent protection for each string.
- Bypass diodes (Optional): Prevent one shaded or faulty panel from drastically reducing the entire string's power output
Solar panels parallel connection diagram

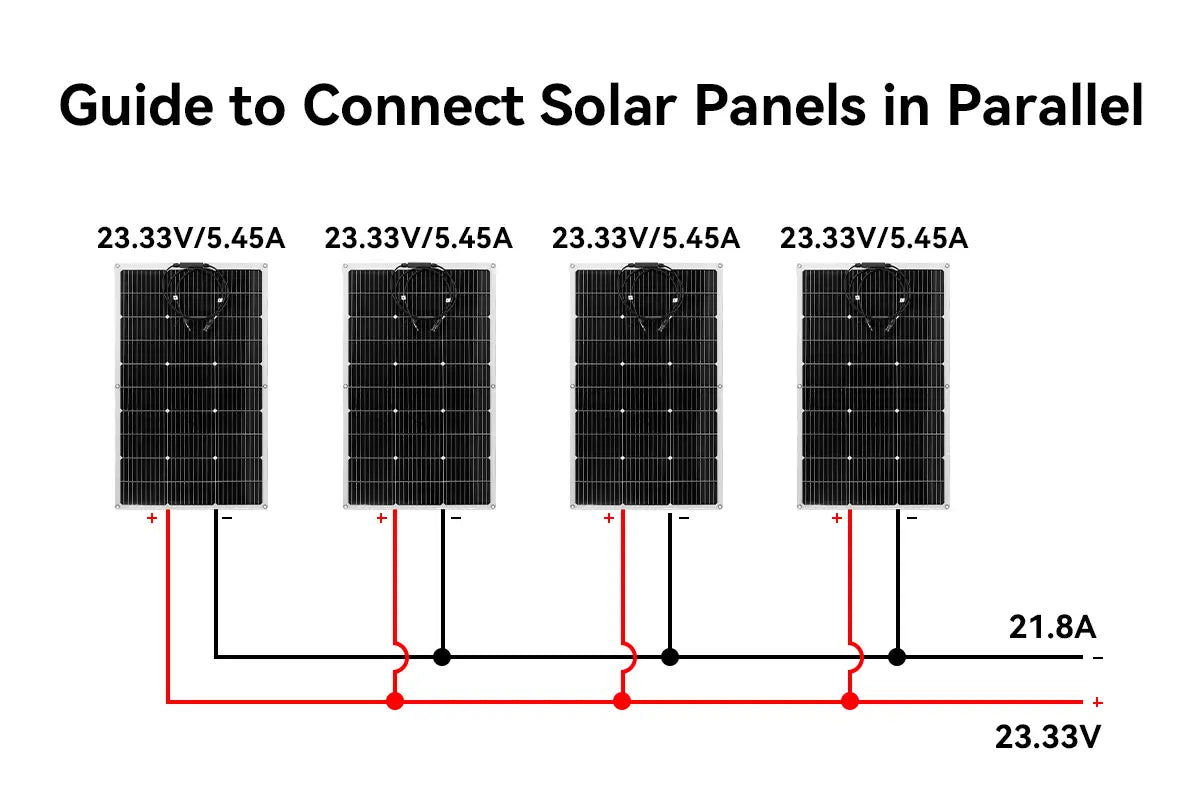

When wiring panels in parallel, all positive terminals are connected together and all negative terminals are connected together. This keeps the system voltage the same as a single panel but increases the total current, which requires attention to cable sizing and protection.
Solar panel parallel wiring hardwares required:
- Solar panel wire: Ensure branch wires match panel current; main wire handles total combined current.
- MC4 connectors: Secure panel-to-panel connections for each wire run.
- MC4 branch connectors: Allow multiple panel outputs to be combined in parallel.
- Solar panel fuses: Protect each panel or parallel string from overcurrent.
- Combiner/breaker box: Includes busbars for current distribution and DC breakers for protection.
Other common accessories for solar system installation
Beyond wiring hardware for solar panels, a complete solar system requires additional components to ensure safety, efficiency, and functionality. Below are essential accessories for different parts of the system:
- Battery busbar helps organize battery wiring and provides a low-resistance path for current. It allows multiple cables to connect neatly while maintaining secure electrical connections.
- Battery management system (BMS) monitors battery health, balances cells, and protects against overcharging, over-discharging, and short circuits. This is especially important for lithium batteries.
- DC circuit breaker for battery acts as a safety switch between the battery and other DC components. It makes it easier to disconnect power for maintenance or during emergencies.
- AC distribution panel directs the inverter’s AC output to different circuits or appliances and includes built-in breakers for overload protection.
- Manual or automatic transfer switch is needed if you want to switch the AC load source between the inverter and an alternative AC supply such as the grid, a generator, or shore power for RVs.
These elements cover the fundamentals of solar wiring, with adjustments needed for different applications. Let's explore the differences between RV and residential systems.
Off grid solar system diagram
A typical off-grid solar setup includes solar panels (wired in series, parallel, or a combination), a charge controller (PWM or MPPT) to regulate charging, a battery bank for energy storage, a comapct battery inverter or power inverter to convert DC to AC power, and various wiring accessories such as connectors, fuses, breakers, BMS and busbars for parallel batteries.
Additional parts are necessary in RV or mobile setups:
- Roof entry gland seals and protects the point where cables pass through the roof.
- DC fuse box or DC panel powers and protects 12V appliances such as lights, fans, and refrigerators.
- Shore power inlet allows the batteries to be charged from a campground or other external AC power source.
Home solar wiring diagram
A home solar system usually uses higher voltage (e.g., 48V battery storage or direct grid-tied operation) and often connects to the utility grid. This requires more careful planning for:
- Solar panel arrangement according to roof orientation and tilt.
- Compliance with local codes for grounding, conduit routing, and disconnect switches.
- Inverter selection, often an all-in-one hybrid inverter that can handle solar input, battery storage, and grid connection.

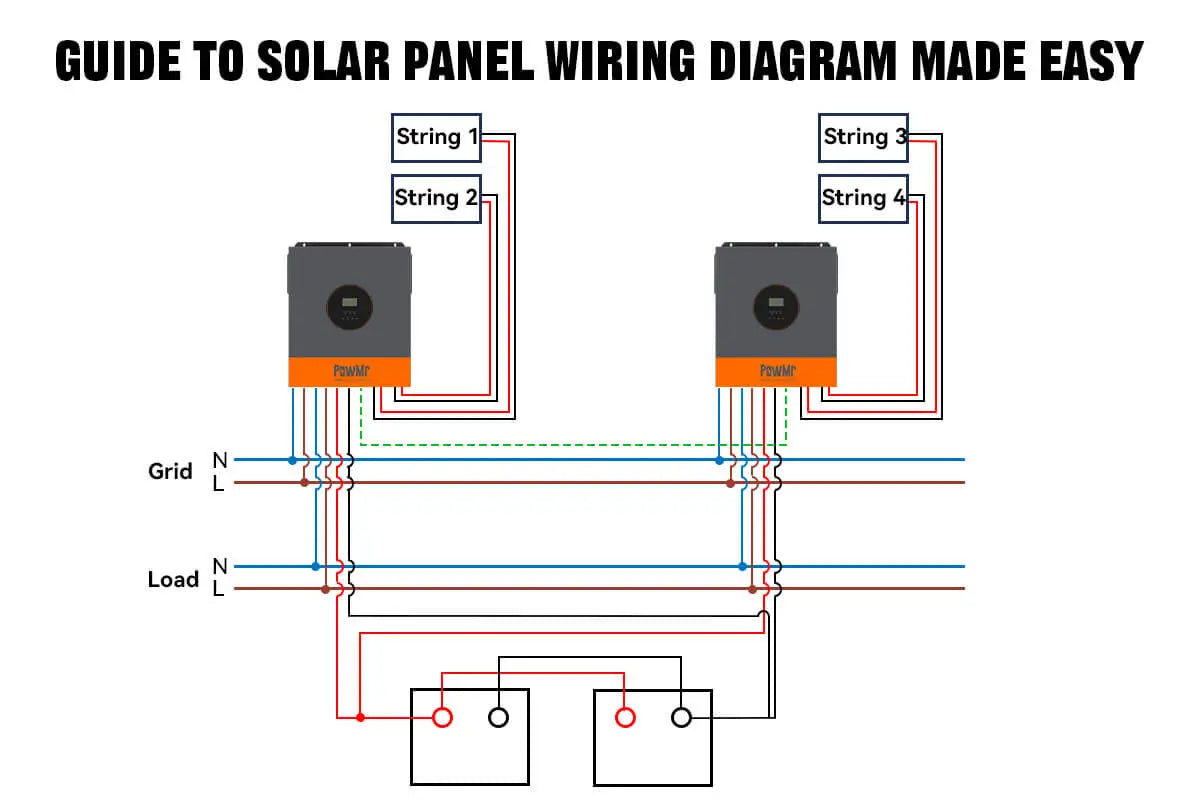

When designing wiring diagram for a home solar system, the AC side can be more complex than in small off grid systems. This is because the setup may need to connect to the utility grid in single-phase, split-phase, or three-phase configurations. The AC wiring must be done correctly for Line(L) and Neutral(N) connections, and in some cases, Earth(E) grounding.
For some residential solar setup may have others parts:
- Critical loads subpanel supplies power to essential appliances during outages.
- Main service disconnect is a safety requirement for utility workers when servicing the system.
- Net metering meter (for grid-tied systems) tracks excess power exported to the grid.
FAQ - Does a solar array need to be ground
Yes, a solar array should be grounded for safety and performance. Grounding helps protect people and equipment from electric shock in case of a fault. It also reduces the risk of fire caused by stray electrical currents and can help protect against lightning damage.
In an RV, system grounding often connects the negative side of the DC system to the vehicle chassis, which serves as the grounding point.
In a home, system grounding typically connects the system’s neutral conductor to a dedicated ground rod driven into the earth.
