SKU: PBS-800W

800W Balcony PV Solar Power System

Sale price$699.00 USD Regular price$899.00 USD
Save 22%
What is included 800W system:
Half Cell Shingled 410W All Black Solar Panel 2pc
800W 220V Solar Grid VDE Micro Inverter 1pc
Solar Panel Bracket 2sets







600W-Balcony-PV-Solar-Power-System-1

Most energy comes from the sun and it’s time to take advantage

Save on Energy Costs

Specification

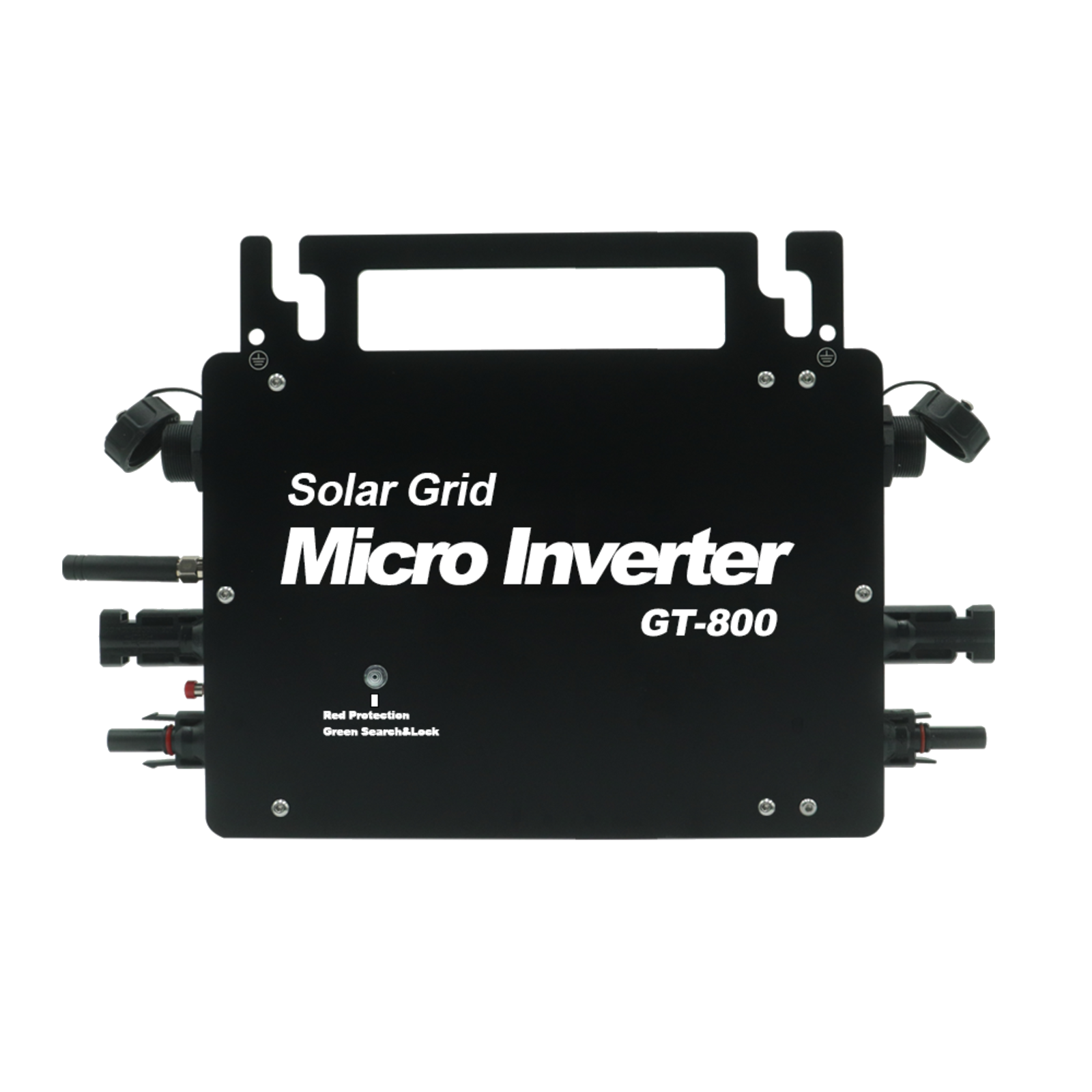

800W 220V Solar Grid VDE Micro Inverter

Number of input MC4 Connector: 2sets
MPPT Voltage Range: 22V-48V
Operation Voltage Range: 20V-50V
Maximum Input Voltage: 50V
Startup Voltage: 22V
Maximum Input Power: 800W
Maximum Input Current: 10.5A
Peak Efficiency: 95%

Half Cell Shingled 410W All Black Solar Panel

Maximum Power (Pmax/W): 410
Open Circuit Voltage(Voc/V): 37.17
Short Circuit Current(Isc/A): 13.86
Maximun Power Voltage(Vmp/V): 30.80
Maximum Power Current(Imp/A): 13.15
Module Efficiency(%): 20.70
Connector: MC4 Compatible
Dimensions: 1722mm*1134mm*30mm

Balcony PV Mounting System

Wind Load: up to 60m/s
Snow Load: up to 1.5KN/㎡
Material: AL6005-T5 (Anodized)
Applicable Solar Module: Framed
Panel Layout: Landscape
Small Components: AL6005-T5 (Anodized)
Color: Silver or Customized
Warranty: 10-Year Warranty

Why Choose Balcony System

Smooth Set up

The system is a plug-and-play system composed of solar panel, micro inverter and angle-adjustable bracket, which can be installed by yourself. Modular design without extra commission enables quicker and easier installation, the angle of the bracket can be adjusted to obtain the maximum power generation.

Multiple Scenarios

Designed to be installed on balconies, gardens, flat roofs, walls and other limited outdoor spaces, the solar power system is a cost-effective and environmentally friendly way to generate electricity and reduce energy costs.

Cost Saving

This 600W balcony power system brings freedom to the home by exclusively harnessing the power of solar energy. Free yourself from monthly electric bills and make your lifestyle less dependent on the grid. Its relaxed and friendly setup allows the use of unobstructed energy from balconies.

Adjustable Angle

The 600w balcony solar power system allows for manual adjustment of the PV module angle to maximize energy output. Users can set a recommended angle or make manual adjustments based on seasonal time changes.
