Power Inverter Pure Sine Wave 1500w EPEVER DC 12V AC Output 220V Solar Off-Grid Pure Sine Wave Power Inverters Safety EN/IEC62109

Overview

IPower-Plus is a new generation of pure sine wave inverter compatible with the lithium battery system. This new inverter adopts surge current suppression technology to effectively prevent the surge current from damaging the lithium battery cells and BMS
(Battery Management System). Also, adopting the voltage and current double closed-loop control algorithm brings the inverter a faster response and better resistance to the load impact. The inverter selects key components with a high power density and long lifespan to
provide a stable and reliable power guarantee. The optional communication solutions allow users to monitor the real-time status or change the parameters wherever. The inverter can be widely used in DC to AC areas, such as solar AC power system, vehicle system, RV
power supply, security monitoring system, emergency lighting system, field power system, household power system, etc. With an excellent EMC (Electro Magnetic Compatibility) characteristic, the power inverter is also suitable for occasions with high power quality requirements.

Features:

Completely electrically isolated design for input and output
Full digital double closed-loop control
Excellent EMC characteristic, widely applied to higher quality power system
Advanced SPWM technology and pure sine wave output.
Input surge current suppression technology, applying to the lithium battery system
Outstanding load resistance to impact, applying to the air conditioners, washing machines, refrigerators, etc.
High power density and high-quality components to ensure the reliability
Output power factor up to 1
Low loss of zero loads and standby. Low THD (Total Harmonic Distortion). High conversion efficiency
Extensive protections: input reverse polarity/under voltage/over voltage, output overload/short circuit/overheating
Air cooling controlled by temperature and load

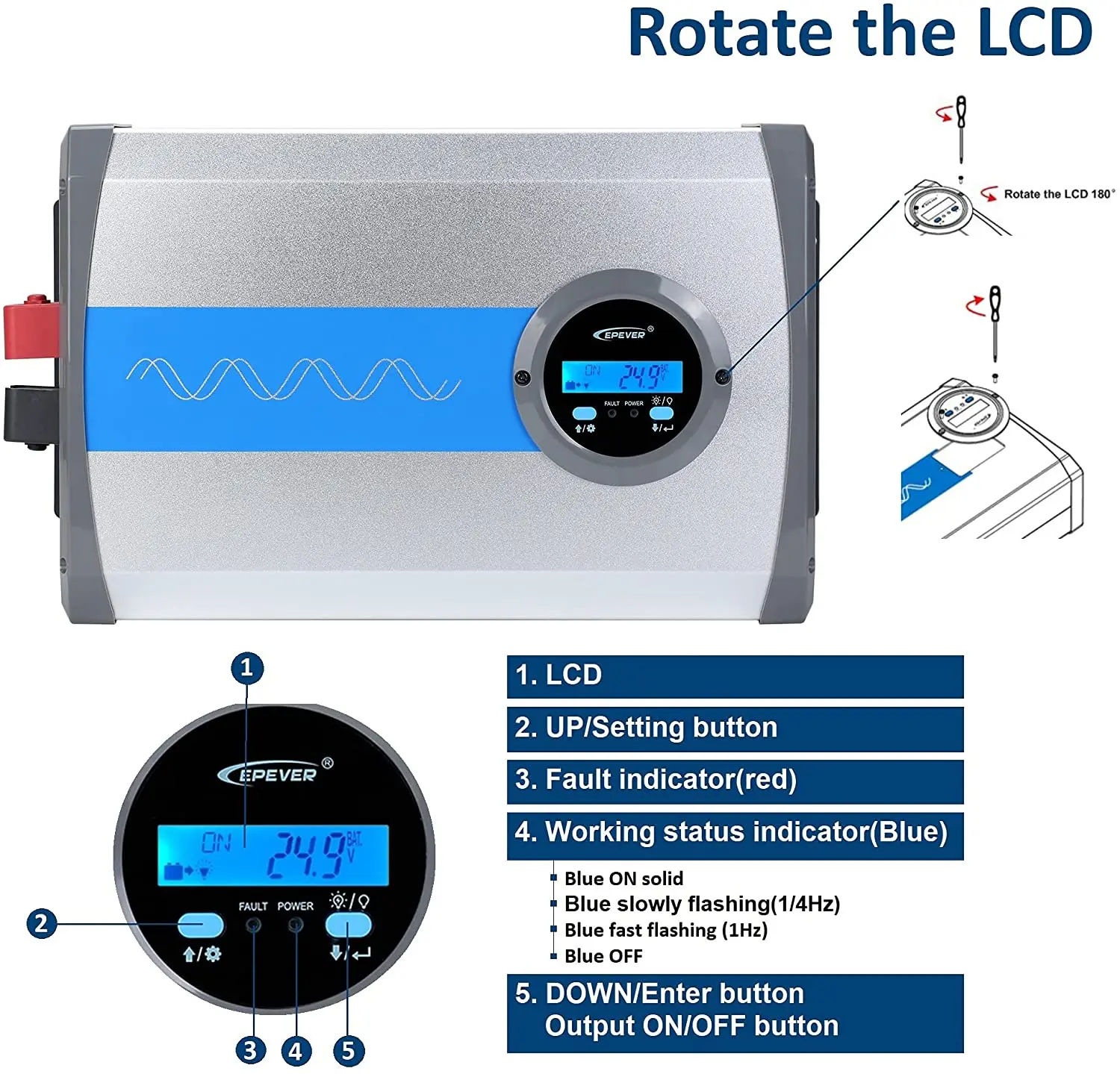

Rotatable LCD meter to simplify the system wiring
Friendly LCD meter to simply monitor and parameter configure
Remote control by the phone Apps and PC software
Configurable output voltage and output frequency①
Charging mobile phones, DC fans, and other electrical equipment by the USB port②
Support a variety of options by connecting with the RS485 com. port③
External switch contact design to allow remote control
IEC62109, EN61000, RoHS approved

① Configuring the parameters via the local LCD meter, remote LCD meter, phone Apps, and PC software.
② This function is unavailable for an inverter with 48V input voltage.
③ There is no communication isolation design for inverters with 12V/24 input voltage. This function(communication isolation design) is just for inverters with 48V input voltage.

IPower-Plus is a high-frequency pure sine wave inverter that can convert 12/24/48VDC to 220/230V AC (or 110V/120V AC) and power the AC loads.
It is designed according to the international standard with higher quality, reliability, and safety. Ranging from 500W to 5000W.
Ipower-Plus is compatible with lithium-ion batteries perfectly and suits any situation of DC to AC, such as RVs, boats, residentials, and places where require high-quality electrical power.

Parameters	IP1500-11-Plus(T)	IP1500-12-Plus(T)
Continuous output power	1500W@35℃@Rated input voltage
Surge power	3000W@5S
Surge current when power on	＜100A
Output voltage	110VAC(±3%);	220VAC(±3%);
	120VAC(-7%~+3%)	230VAC(-7%~+3%)
Output frequency	50/60Hz±0.2%
Output wave	Pure Sine Wave
Output distortion THD	THD≤4%(Resistive load)	THD≤3%(Resistive load)
Load power factor	0.2~1(VA≤output continuous power)
Rated input voltage	12VDC
Input voltage range	10.8~16.0VDC
Rated output efficiency①	＞88%	＞89%
Max. output efficiency②	＞93%(30% loads)
Idle current	＜0.2A
No-load current	＜1.0A@12V	＜1.2A@12V
USB output	5VDC/ Max.1A
RS485 com. port	5VDC/ 200mA
Mechanical parameters
Input terminal	M6
Dimension (Length x Width x Height)	387×231.5×123mm
Mounting dimension	361×145mm
Mounting Holes	Φ6mm
Net Weight	6kg
Working temperature	-20℃~+60℃(Refer to the Reduced capacity curve)
Storage temperature	-35℃~ +70℃
Relative humidity	< 95%(N.C.)
Enclosure	IP20
Altitude	＜5000m (If the altitude is more than 1000 meters, the rated power will be reduced according to GB7260.)
① It means the rated output efficiency when the load power is continuous output power under the rated DC input voltage. (25℃ ) ② It means the max. output efficiency when the inverter is connected with different loads under the rated DC input voltage.

Overview:IPower-Plus is a new generation of pure sine wave inverter compatible with the lithium battery system. This new inverter adopts surge current suppression technology to effectively prevent the surge current from damaging the lithium battery cells and BMS (Battery Management System). Also, adopting the voltage and current double closed-loop control algorithm brings the inverter a faster response and better resistance to the load mpact. The inverter selects key components with a high power density and long lifespan to provide a stable and reliable power guarantee. The optional communication solutions allow users to monitor the real-time status or change the parameters wherever. The inverter can be widely used in DC to AC areas, such as solar AC power system, vehicle system, RV power supply, security monitoring system, emergency lighting system, field power system ousehold power system, etc. With an excellent EMC (Electro Magnetic Compatibility) characteristic, the inverter is also suitable for occasions with high power quality requirements.

IP1500-11-Plus(T) 1500W 12V/110V
IP1500-12-Plus(T) 1500W 12V/220V

Features:  Completely electrically isolated design for input and output  Full digital double closed-loop control  Excellent EMC characteristic, widely applied to higher quality power system  Advanced SPWM technology and pure sine wave output.  Input surge current suppression technology, applying to the lithium battery system  Outstanding load resistance to impact, applying to the air conditioners, washing machines, refrigerators, etc.  High power density and high-quality components to ensure the reliability  Output power factor up to 1  Low loss of zero loads and standby. Low THD (Total Harmonic Distortion). High conversion efficiency
 Extensive protections: input reverse polarity/under voltage/over voltage, output overload/short circuit/overheating  Air cooling controlled by temperature and load  Rotatable LCD meter to simplify the system wiring  Friendly LCD meter to simply monitor and parameter configure  Remote control by the phone Apps and PC software  Configurable output voltage and output frequency①  Charging mobile phones, DC fans, and other electrical equipment by the USB port②  Support a variety of options by connecting with the RS485 com. port③  External switch contact design to allow remote control  IEC62109, EN61000, RoHS approved

① Configuring the parameters via the local LCD meter, remote LCD meter, phone Apps, and PC software. ② This function is unavailable for inverters with 48V input voltage. ③ There is no communication isolation design for inverters with 12V/24 input voltage. This function(communication isolation design) is just for inverters with 48V input voltage.

Specification

Parameters	IP1500-11-Plus	IP1500-12-Plus
Continuous output power	1500W@35℃@Rated input voltage
Surge power	3000W@5S
Surge current when power on	＜100A
Output voltage	110VAC(±3%); 120VAC(-7%~+3%)	220VAC(±3%); 230VAC(-7%~+3%)
Output frequency	50/60Hz±0.2%
Output wave	Pure Sine Wave
Output distortion THD	THD≤4%(Resistive load)	THD≤3%(Resistive load)
Load power factor	0.2~1(VA≤continuous output power)
Rated input voltage	12VDC
Input voltage range	10.8~16.0VDC
Rated output efficiency①	＞88%	＞89%
Max. output efficiency②	＞93%(30% loads)
Idle current	＜0.2A
No-load current	＜1.0A	＜1.2A
USB output	5VDC/Max.1A
RS485 com. port	5VDC/200mA
Mechanical parameters
Input terminal	M6
Dimension (Length x Width x Height)	387×231.5×123mm
Mounting dimension	361×145mm
Mounting Holes	Φ6mm
Net Weight	6kg

Details Images

Conditions to start the cooling fan:

①Heat sink temperature is higher than 45℃ or The internal inverter temperature is higher than 45℃ or The output power is higher than 700W
IP1500-11-Plus(T) ；IP1500-12-Plus(T) ；IP1500-21-Plus(T) ；
IP1500-22-Plus(T) ；IP1500-41-Plus(T) ；IP1500-42-Plus(T)

②Heat sink temperature is higher than 45℃ or The internal inverter temperature is higher than 45℃ or The output power is higher than 50% of the rated power
IP1000-11-Plus(T/N) ；IP1000-12-Plus(A/E/C/T) ；IP1000-21-Plus(T/N) ；IP1000-22-Plus(A/E/C/T) ；IP2000-11-Plus(T) ；IP2000-12-Plus(T) ；IP2000-21-Plus(T) ；
IP2000-22-Plus(T) ；IP2000-41-Plus(T) ；IP2000-42-Plus(T) ；IP3000-11-Plus(T) ；
IP3000-12-Plus(T) ；IP3000-21-Plus(T) ；IP3000-22-Plus(T) ；IP3000-41-Plus(T) ；
IP3000-42-Plus(T) ；IP4000-41-Plus(T) ；IP4000-42-Plus(T) ；IP5000-42-Plus(T)

Conditions to stop the cooling fan:①Heat sink temperature is lower than 40℃ and The internal inverter temperature is lower than 40℃ and The output power is lower than 300W
IP1000-11-Plus(T/N)；IP1000-11-Plus(T/N)10 ；IP1000-12-Plus(A/E/C/T) ；
IP1000-21-Plus(T/N) ；IP1000-22-Plus(A/E/C/T)

②Heat sink temperature is lower than 40℃ and The internal inverter temperature is lower than 40℃ and The output power is lower than 500W
IP1500-11-Plus(T) ；IP1500-12-Plus(T) ；IP1500-21-Plus(T) ；
IP1500-22-Plus(T) ；IP1500-41-Plus(T)；IP1500-42-Plus(T)

③Heat sink temperature is lower than 40℃ and The internal inverter temperature is lower than 40℃ and The output power is lower than 40% of the rated power
IP2000-11-Plus(T) ；IP2000-12-Plus(T) ；IP2000-21-Plus(T) ；IP2000-22-Plus(T) ；IP2000-41-Plus(T)；
IP2000-42-Plus(T) ；IP3000-11-Plus(T) ；IP3000-12-Plus(T) ；IP3000-21-Plus(T) ；IP3000-22-Plus(T)；
IP3000-41-Plus(T) ；IP3000-42-Plus(T)；IP4000-41-Plus(T) ；IP4000-42-Plus(T) ；IP5000-42-Plus(T)；

Symbols of A/E/C/N/T mean different AC outlets: A-Australia/New Zealand, E-European, C-Chinese dual socket, N-North America, and T-Terminal.
