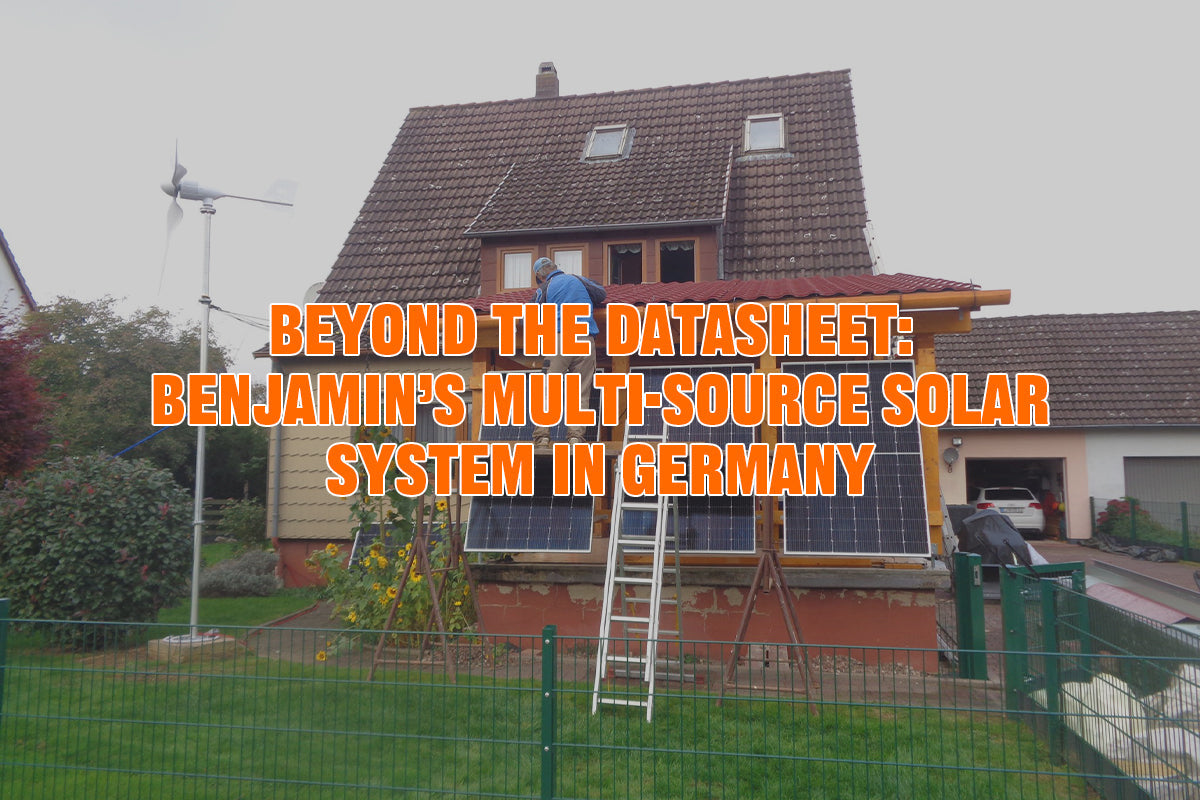

In Germany, Benjamin Bode, a technically experienced user with a background in electrical work and IT began building a renewable energy system tailored to his own requirements. Rather than following a fixed installation plan, he approached the project as a continuous engineering process, gradually installing, testing, and refining the system based on real operating behavior.
Over time, what started as a standard photovoltaic installation developed into two independent energy systems. Both were built around POWMR technology and a LiFePO4 battery storage setup, forming a flexible hybrid energy configuration that evolved over several years of practical use.
System One: 6.2KW Solar Inverter Based Power System
The first system is built around a PowMr 6.2kW hybrid inverter, which serves as the central energy conversion unit between solar input, 48V battery storage, and AC household loads.
At the core of the solar side is a 6200W PowMr solar inverter with the following key specifications:
- PV Input Voltage Range: 0–450V DC
- Max PV Voltage: 500V DC
- Nominal PV Operating Voltage: ~240V DC
- Full Load MPPT Range: 240–450V DC
- Max Solar Charging Current: 120A
- Maximum PV Input Power: 6200W
On the AC side, the inverter delivers stable grid-form output:
- Output Voltage: 220/230/240V AC
- Frequency: 50/60Hz
- Maximum Efficiency: up to 97%
This system forms the core of the installation and is responsible for primary solar energy conversion and household power supply. On the energy generation side, Benjamin gradually refined his configuration through long-term observation of system behavior under different load and irradiance conditions.
Getting the PV Voltage Right: The Most Misunderstood Rule in MPPT Inverter Design
One of the most important lessons from this installation did not come from hardware limitations, but from how MPPT operating ranges are interpreted in real-world use.
At the beginning, the photovoltaic array was configured at relatively low string voltages, typically around 60V to 120V DC. Although the inverter operated normally, long-term testing revealed noticeable differences in performance under sustained load conditions.
The following behavior was observed:
- Increased fan noise during operation
- Higher internal temperature under continuous 2–3 kW load
- Reduced stability during prolonged summer operation
After extended testing, a key realization emerged. This was not due to hardware failure or wiring complexity, but rather because the PV input specifications printed on the inverter are often misinterpreted during system design, which can lead to suboptimal configurations.
Reclarifying the PV Voltage Labels in MPPT Inverter Design
To help clarify this, it is important to understand that the different labeled voltage values actually represent different physical and operational limits within the inverter.
- PV Input Voltage Range (0–450V DC): This is the operating window in which the inverter can function normally. If the voltage exceeds this range, the inverter may shut down or trigger protection modes.
- Max PV Voltage (500V DC): This represents the absolute hardware limit. If the open-circuit voltage (Voc) of the PV string exceeds this value, internal components such as capacitors or power devices may be permanently damaged. In real system design, a safety margin of around 10%–20% is typically considered, especially for cold weather conditions where PV voltage increases.
- Nominal PV Operating Voltage (~240V DC): This is the approximate internal MPPT design point where the inverter achieves optimal tracking behavior under typical conditions.
- Full Load MPPT Range (240–450V DC): While MPPT tracking can start at lower voltages, reaching the inverter’s rated power output generally requires operation within this higher voltage window due to internal current limitations. If PV voltage remains below this region, the inverter may still operate but may not reach its full rated output.
It is also important to note that these values are based on controlled test conditions, and real-world performance varies with temperature, irradiance, and system configuration.
Instead of relying only on theoretical ranges, system performance should be evaluated under different PV voltage configurations to identify the most suitable operating point for actual environmental conditions. In this case, Benjamin gradually adjusted his system by changing PV string configurations and observing differences in temperature, fan behavior, and overall stability.
System Two: Multi-Source MPPT Charging Architecture
The second system was developed as an expansion of the overall energy setup, incorporating both solar and wind energy as complementary generation sources. Over time, Benjamin explored how different renewable inputs behave under real operating conditions, and how they interact with storage and charging control systems.
Solar generation in this system is based on photovoltaic arrays such as a 3-string × 400W configuration, connected through MPPT charging architecture. Solar energy is inherently a voltage-driven power source, where output voltage and current continuously vary with irradiance and temperature. MPPT controllers are therefore required to dynamically track the maximum power point, ensuring the system remains at optimal efficiency under changing conditions.
Wind energy, on the other hand, is implemented using small-scale wind turbines in the 1.3m to 2m rotor class. These systems typically become effective at wind speeds above approximately 4–5 m/s and are installed at elevated mast heights of around 10–12 meters to access more stable airflow.
Unlike photovoltaic systems, wind turbines behave more like current-driven energy sources with their own internal control characteristics. Their output may be three-phase AC or rectified DC depending on design, and they require dedicated wind charging control logic rather than photovoltaic MPPT algorithms. Each energy source therefore relies on its own appropriate control method to ensure stable and safe charging behavior.
This separation of control logic is an important design consideration when integrating multiple renewable energy sources into a single storage system.
Conclusion: System-Level Optimization Through Real-World Testing
Benjamin's overall conclusion highlights a consistent theme throughout the project: MPPT-based systems should not be treated as fixed, plug-and-play solutions based only on specification sheets. Instead, performance depends heavily on real-world tuning, correct voltage selection, system-level integration, and iterative practical testing under real operating conditions.
His experience shows that true system stability only emerges when the entire installation is viewed as a complete energy system rather than isolated components. Voltage behavior, thermal response, control interactions, and grounding all influence long-term performance, and these factors can only be properly understood through hands-on testing.
Overall, the project reinforces a practical engineering mindset. Reliable performance is achieved not by relying solely on theoretical specifications, but by continuously validating and optimizing the system in real environments until the most stable operating configuration is found.
