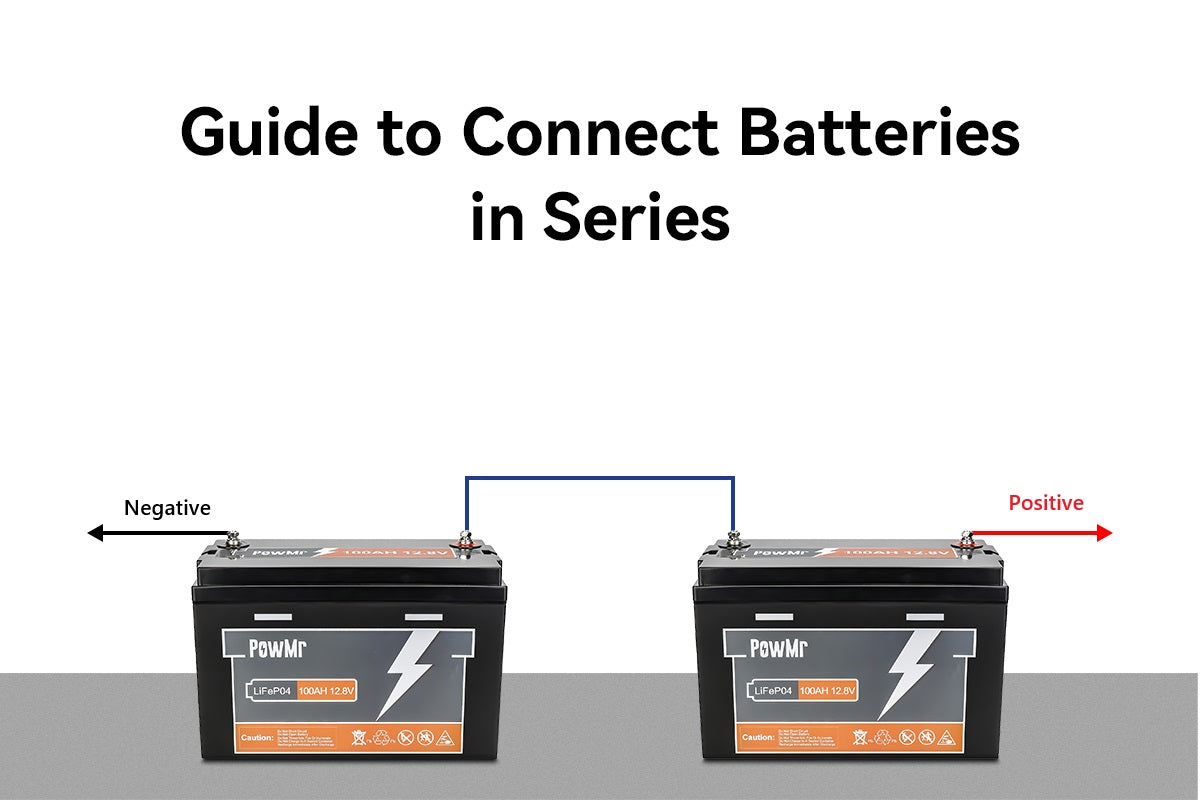

Complete Guide to Wiring Batteries in Series

Wiring batteries in series is a common method used in solar power systems, RVs, golf carts, and other DC setups. 12V batteries are the most popular, offering flexibility for configuring direct current systems.This approach is essential when powering inverters or equipment that requires 24V, 36V, or 48V instead of a single 12V battery.

This guide explains how to safely connect batteries in series, outlines key safety precautions, and explores how voltage and amp-hour ratings change. It also highlights the main benefits and limitations of series wiring.

What happens when wiring batteries in series

Batteries in series, the main effect is that their voltages combine while the amp-hour (Ah) rating stays the same. This simple change can make a big difference in how your system performs, especially when you need to run equipment that requires higher input voltage. Let’s break it down further.



Amp hours of batteries in series

The amp-hour (Ah) rating, which represents the battery's storage capacity, does not increase in a series circuit. Because the electrical current flows through each battery in a single path, the total capacity is limited by the capacity of a single battery in the string.

If you connect four 12V 200Ah batteries in series, you get a 48V 200Ah battery bank. You do not get 800Ah.

This is the opposite of connecting batteries in parallel, where connecting the same four batteries would result in a 12V 800Ah bank. In series, your run-time remains the same, but you can now power higher-voltage equipment.

Voltage of batteries in series

In a series connection, you create a chain by connecting the positive (+) terminal of one battery to the negative (-) terminal of the next. This forces the current to flow through each battery in sequence, and their individual voltages add up.

For example, connecting two 12V batteries in series forms a 24V bank, while four 12V batteries in series form a 48V bank. If each 12V battery is 100Ah, both the 24V and 48V banks will have a capacity of 100Ah.

Advantages of connecting batteries in series

Wiring batteries in series offers several powerful benefits for larger systems:

• Reduce current and power loss: Lower current (amps) significantly reduces resistive heat loss in your wiring. For a 1000W load, a 12V system draws about 83A, while a 48V system draws only about 21A (Power = Voltage × Current). Lower current (amps) significantly reduces resistive heat loss in your wiring.
• Save on cable costs: Lower current allows you to use thinner, more flexible, and less expensive copper cables, which can lead to significant savings on an installation.
• Increase system efficiency: Less energy wasted as heat means more power from your batteries is delivered to your appliances, resulting in a more efficient system.

Disadvantages of wiring batteries in series

While powerful, a series connection has trade-offs that require careful management:

• Weakest battery effect: The entire string's performance is limited by the weakest battery. If one battery is older or has lower capacity, it will underperform and drag down the entire bank.
• Imbalance risk: Over time, small differences can cause one battery to discharge more deeply than others. This imbalance can damage the entire string if not corrected. Regular monitoring is key.
• Complex fault diagnosis: If the bank fails, it can be difficult to identify which specific battery is causing the problem without testing each one individually.

Steps to connect batteries in series

Battery series connection safety precautions

CRITICAL SAFETY WARNING: Improper handling or connection of batteries can cause equipment damage, fire, explosion, or serious injury. Please follow these important precautions and carefully adhere to the manufacturer’s instructions.

• Always use protective gear: Wear insulated gloves and safety glasses at all times. Batteries can release corrosive materials and produce dangerous electrical arcs.
• Disconnect all loads and chargers: Ensure your entire system is powered down. No inverters, solar charge controllers, or other devices should be connected to the battery bank during installation.
• Use insulated tools: A metal wrench accidentally touching a positive and negative terminal will create a dangerous short circuit. Use tools with rubber or plastic handles to prevent this.
• Strictly match your batteries: Choose batteries that match in voltage, chemistry, capacity, age, and brand. Using mismatched batteries can cause uneven discharge, reduce lifespan, and may damage the entire system.
• Never mix chemistries: Do not mix different battery types, such as AGM, Gel, Flooded Lead-Acid, or Lithium. They have different charging requirements and internal resistances, and mixing them will lead to rapid failure.
• Correct gauge battery cables: Use cables between batteries that can safely carry the maximum charge or discharge current. Size the wires from the charge controller according to its rated amperage, and choose cables from the battery to the inverter based on the inverter’s expected load current.
• Ensure equipment compatibility: Verify that your charger and inverter are designed to handle the final combined voltage of your series bank.
• Maintain proper ventilation: This is especially crucial for flooded lead-acid batteries, which can release explosive hydrogen gas during charging. Ensure adequate airflow in your battery compartment.

Step 1. Preparation and inspection

Begin by inspecting each battery. Measure their voltage and state of charge using a multimeter to ensure they are nearly identical (within 0.1V)). If the voltages differ significantly, balance the batteries first. This step prevents uneven discharge and extends battery life.

Prepare a jumper cable of appropriate gauge to handle your system’s maximum current. Proper preparation ensures a safe and efficient connection process.

Step 2. Safe layout

Position the batteries close together on a stable, non-conductive surface, leaving a small gap for ventilation. Ensure your workspace is clean and that all system loads and chargers are completely disconnected from the battery bank.

Step 3. Connect the batteries in series

To form a series connection, link each battery in sequence using jumper cables. Connect the negative (-) terminal of the first battery to the positive (+) terminal of the next battery, and continue this pattern until all batteries are connected. After completing the chain, there will be one free positive terminal at the start and one free negative terminal at the end.

Before proceeding, verify the polarity with a multimeter to prevent reverse connections that could damage equipment. Make sure every connection is tight and secure, as loose joints can cause heat buildup, voltage drops, or sparks.

Step 4. Install overcurrent protection

For safety, each branch from the battery bank, one to the charge controller and one to the inverter, should have a battery fuse installed on the positive (+) cable as close to the battery positive terminal as possible for overcurrent protection.

You can use a DC battery breaker for resettable protection and convenient disconnection during maintenance, or a fuse for cost-effective high-fault protection. If using a fuse, consider pairing it with a separate switch for easier system control.

Step 5. Connect to system components

After installing protection, connect the battery bank to your devices using proper AWG wire gauge cables. Connect the battery to the charge controller first, then attach the solar panels. Next, run a separate cable set to the inverter for AC loads.

If using a battery monitor, install its shunt on the main negative terminal. Before powering on, use a multimeter to verify total voltage, confirm correct polarity, and ensure no voltage is present on the load side with the breaker off.

FAQs on series battery wiring

Can you mix different battery types in series (AGM vs Lead Acid)?

No. You absolutely cannot mix different battery chemistries like AGM, Gel, or flooded lead-acid. They have different internal resistances and require different charging voltages (profiles). Mixing them will cause one battery to be chronically undercharged while the other is overcharged, leading to rapid failure of the entire bank and posing a serious safety risk. Always use identical models.

Do Batteries in series discharge evenly?

In theory, yes, because the same current flows through each one. In reality, minor imperfections in manufacturing, temperature differences, and age will cause a slight imbalance over time. One battery might drift to a lower voltage than the others. That's why periodic maintenance, like an equalization charge for lead-acid batteries, is crucial to keep the bank healthy and balanced.

Can I mix different Ah batteries in series?

This is highly discouraged. The total capacity of your series string will be limited by the smallest battery. For example, connecting a 100Ah battery in series with a 200Ah battery effectively gives you a bank with only 100Ah of usable capacity. The smaller battery will be subjected to deeper discharge cycles, causing it to fail prematurely and rendering your larger investment useless.

Can I wire lithium batteries in series?

Yes, wiring lithium (LiFePO4) batteries in series is very common and effective, but only under one condition: a proper Battery Management System (BMS) must be used. A BMS is the brain of a lithium battery pack. It monitors each cell, ensures they remain balanced during charging and discharging, and protects them from over-voltage, under-voltage, and extreme temperatures.

Why must batteries be the same type and state when wired in series?

Consistency is key to longevity. Batteries of the same model and age have similar resistance and charge/discharge behavior, ensuring they share the workload evenly. Mixing types is like pairing a sprinter with a marathon runner. They soon fall out of sync, causing one to fail long before the others.
