SKU: POW-SunSmart 10K

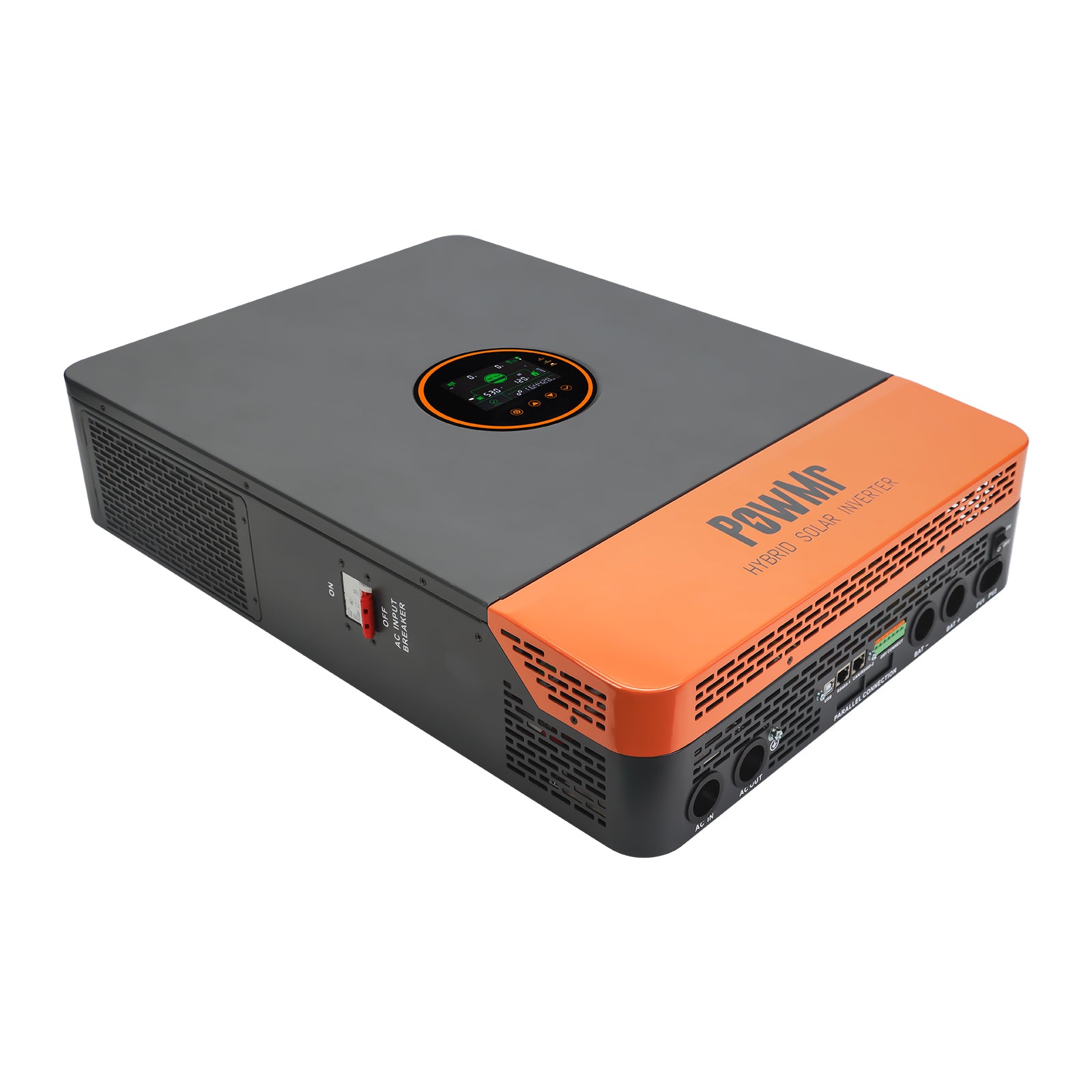

10KW 48Vdc Hybird Inverter 110/240Vac Split Phase

Sale price$1,659.00 USD Regular price$2,299.00 USD
Save 28%
5.0

10kw pure sine hybrid inverter charger with battery activation
01

Dual Activation Function

Pow-SunSmart-10K supports Li-ion battery remains dormant until activated by either the mains power supply or the photovoltaic power supply. Once accessed, it promptly activates, providing reliable power backup. This versatile battery seamlessly integrates into various systems, allowing users to choose their preferred power source and harness the benefits of both technologies.

10kw hybrid inverter charger supports 110v or 220v split phase
02

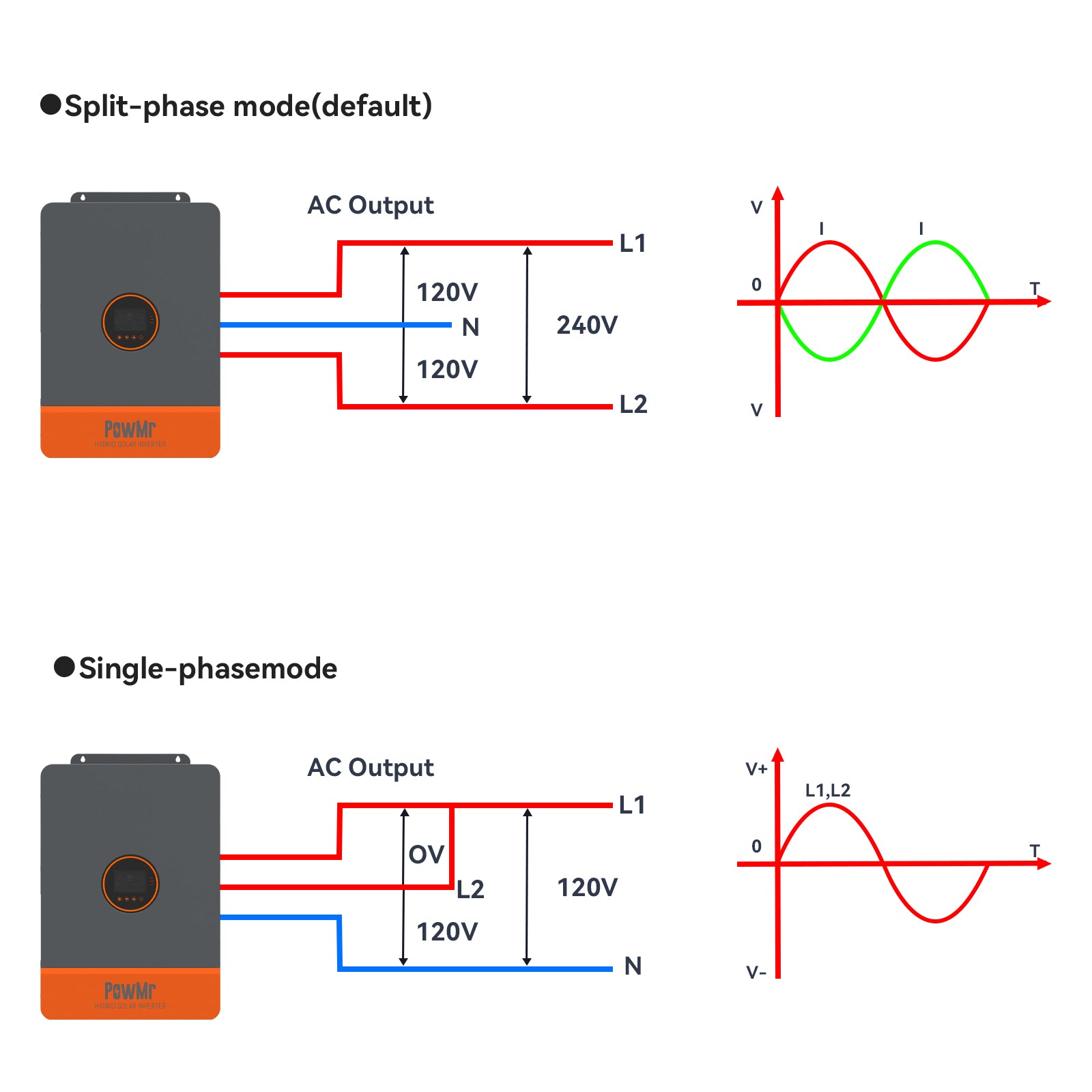

10kW Pure Sine Wave Split Phase Inverter

This 110V/240 Split Phase Inverter offers 4 voltage levels per phase: 100Vac, 105Vac, 110Vac, and 120Vac. It supports CAN, USB, and RS485 communication for enhanced connectivity. Experience reliable and efficient power conversion with this versatile inverter, perfect for a variety of applications.

10000w solar inverter with two 200amp mppt solar charge controller
03

Dual 200Amp MPPT Solar Charge Controllers for Higher Power

Pow-Sunsmart-10K features 2 built-in 200Amp MPPT solar charge controllers, each with 99.9% efficiency and 22A current(Max. PV Input) in a single circuit. With support for 2 solar inputs and simultaneous tracking of 2 solar maximum power charging/carrying capacity functions, it maximizes your solar power efficiency.

working modes of sunsmart 10k/10ke
04

Flexible Charging & Output Modes

Versatile solar inverter that comes equipped with four charging modes (Solar Only, Mains Priority, Solar Priority, Hybrid Charging) and 2 output modes(Utility Bypass and Inverter Output). Also, it features full system protection, including protection against short circuits, over/under voltage, overload, and backfill, among other features.

inverter with eco mode to saving money
05

Peak Shaving & Valley Filling

With the definable time-solt, this inverter charger enables efficient peak and valley power conversion. Excess solar energy generated during the day is intelligently stored in the battery, ready for use by home appliances during the evening peak of electricity consumption. This not only ensures reliable electricity usage but also significantly reduces energy expenses. Zero battery discharge time enables inverter as UPS power supply.

01

Dual Activation Function

Pow-SunSmart-10K supports Li-ion battery remains dormant until activated by either the mains power supply or the photovoltaic power supply. Once accessed, it promptly activates, providing reliable power backup. This versatile battery seamlessly integrates into various systems, allowing users to choose their preferred power source and harness the benefits of both technologies.

02

10kW Pure Sine Wave Split Phase Inverter

This 110V/240 Split Phase Inverter offers 4 voltage levels per phase: 100Vac, 105Vac, 110Vac, and 120Vac. It supports CAN, USB, and RS485 communication for enhanced connectivity. Experience reliable and efficient power conversion with this versatile inverter, perfect for a variety of applications.

03

Dual 200Amp MPPT Solar Charge Controllers for Higher Power

Pow-Sunsmart-10K features 2 built-in 200Amp MPPT solar charge controllers, each with 99.9% efficiency and 22A current(Max. PV Input) in a single circuit. With support for 2 solar inputs and simultaneous tracking of 2 solar maximum power charging/carrying capacity functions, it maximizes your solar power efficiency.

04

Flexible Charging & Output Modes

Versatile solar inverter that comes equipped with four charging modes (Solar Only, Mains Priority, Solar Priority, Hybrid Charging) and 2 output modes(Utility Bypass and Inverter Output). Also, it features full system protection, including protection against short circuits, over/under voltage, overload, and backfill, among other features.

05

Peak Shaving & Valley Filling

With the definable time-solt, this inverter charger enables efficient peak and valley power conversion. Excess solar energy generated during the day is intelligently stored in the battery, ready for use by home appliances during the evening peak of electricity consumption. This not only ensures reliable electricity usage but also significantly reduces energy expenses. Zero battery discharge time enables inverter as UPS power supply.

10kw pure sine hybrid inverter charger with battery activation10kw hybrid inverter charger supports 110v or 220v split phase10000w solar inverter with two 200amp mppt solar charge controllerworking modes of sunsmart 10k/10keinverter with eco mode to saving money

PowMr Inverter Charger Specification

Important Notice:
Please Read Product Manual Before Buying. Detailed specifications and features provided. Contact our support team for assistance. Thank you for choosing us.

Model

POW-SUNSMART 10K

Rated Load Power

10000W

Ac Out Put

110/240V

DC Out Put

48Volt

Phase

Single Phase / Split Phase (110/240Vac)

Customer Reviews

Based on 6 reviews
100%
(6)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
C
Carolyn Ruecker

Equipment arrived in good condition and without any physical details, it has not been tested, but as soon as it is assembled we will update it in the app

V
Vincenza Hagenes

hi em more than happy thank you

P
Puerto Data
Excellent, working as expected.

Running with 12 550W panels (6.6 Kw. peak), six in L1 and six in L2, and 4 12 Volt 250 amp gel batteries in series obtaining the 48 vols input needed (12 Kw/h).
Runing all the house including air conditioning, the company electricity is used only some hours at night when batteries deplete, maybe installing 4 more batteries will run full day.
It's installed at Dominican Republic, lots of sun even in winter.

S
S.u.
10kw Hybrid split phase Inverter

Installation / instructions were straightforward. Unit worked perfectly upon startup, has worked as designed so far. Using with a single 5.6kw lithium battery, 12 - 450w pv panels into a 50 amp AC sub panel, to operate 240v irrigation pump, lighting / outlets.
