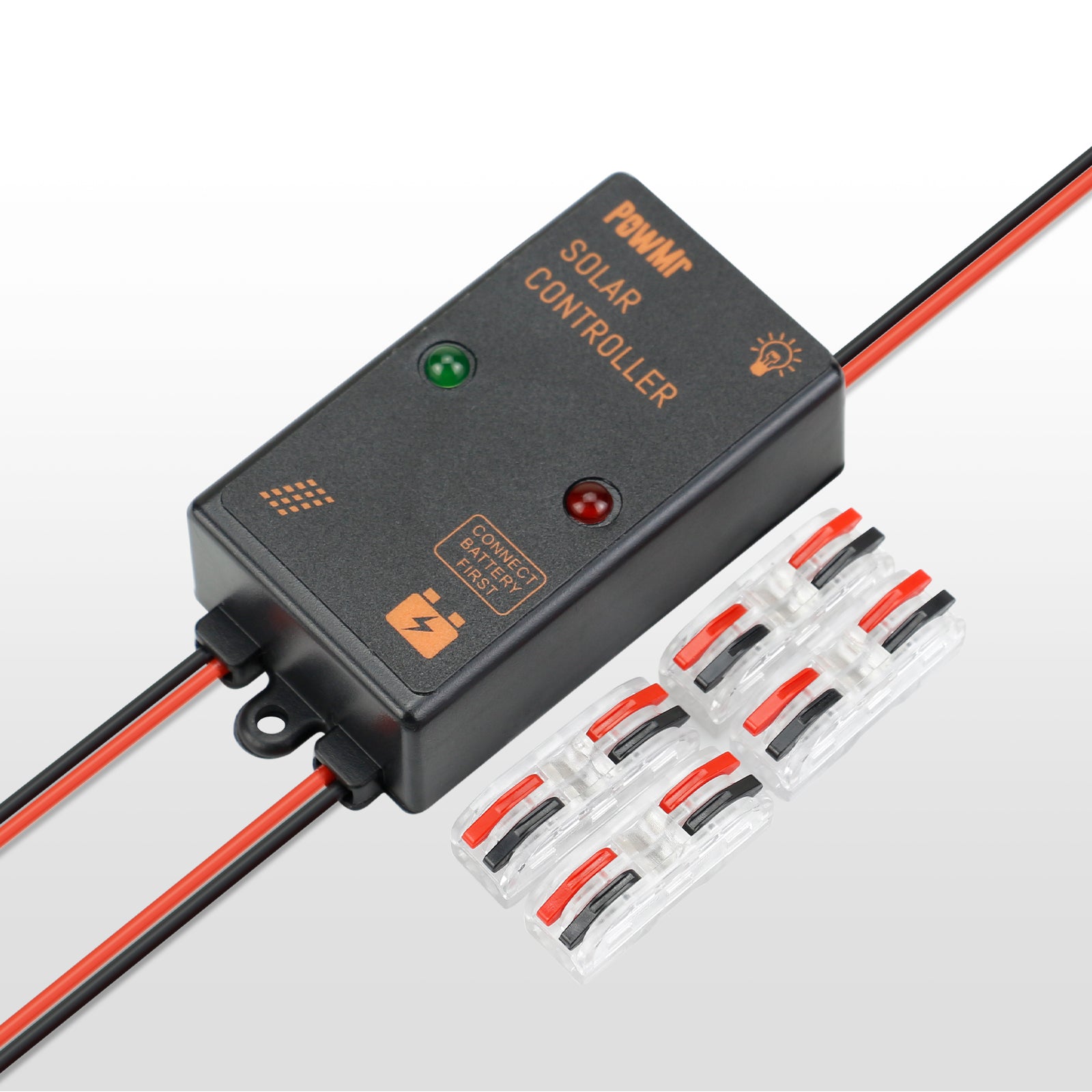

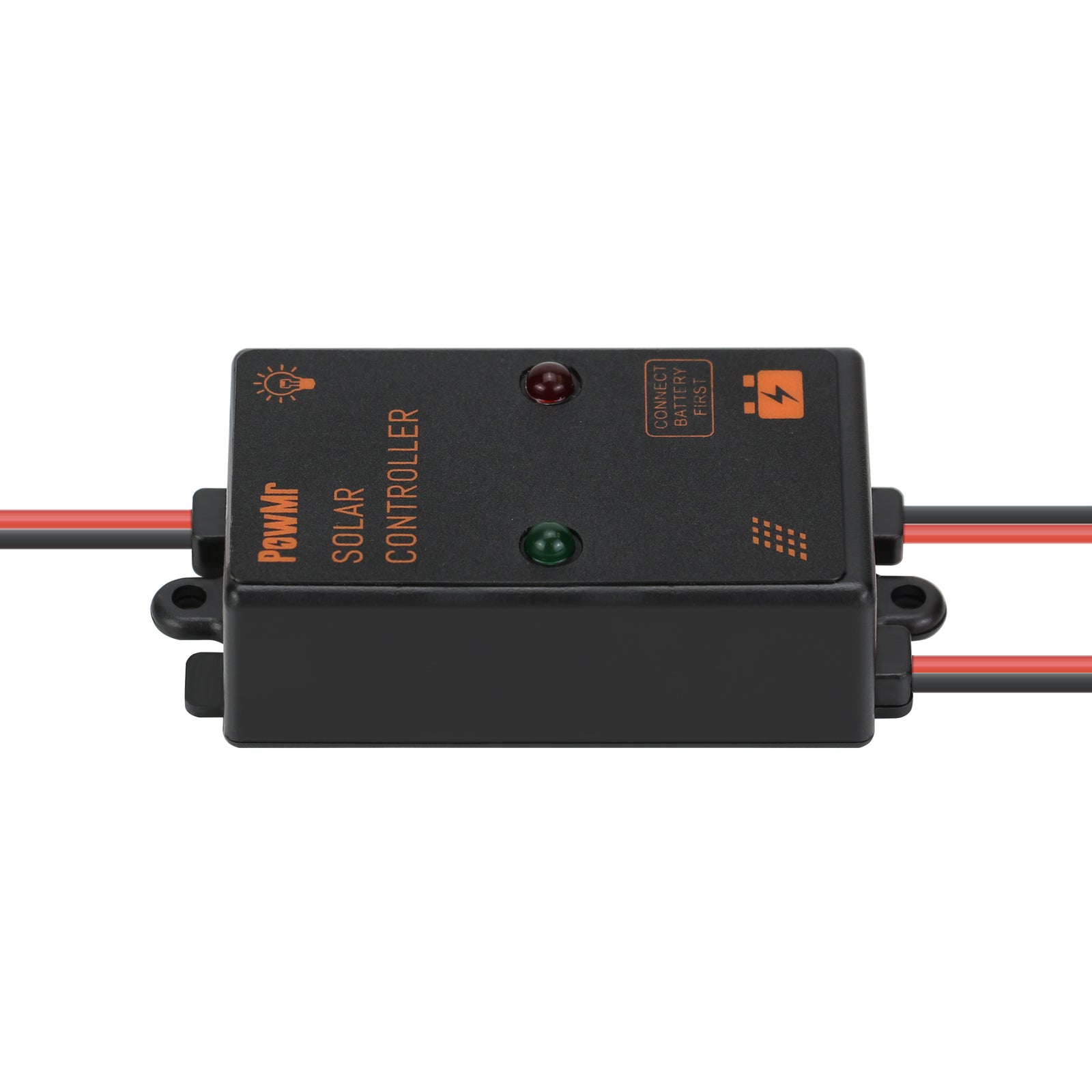

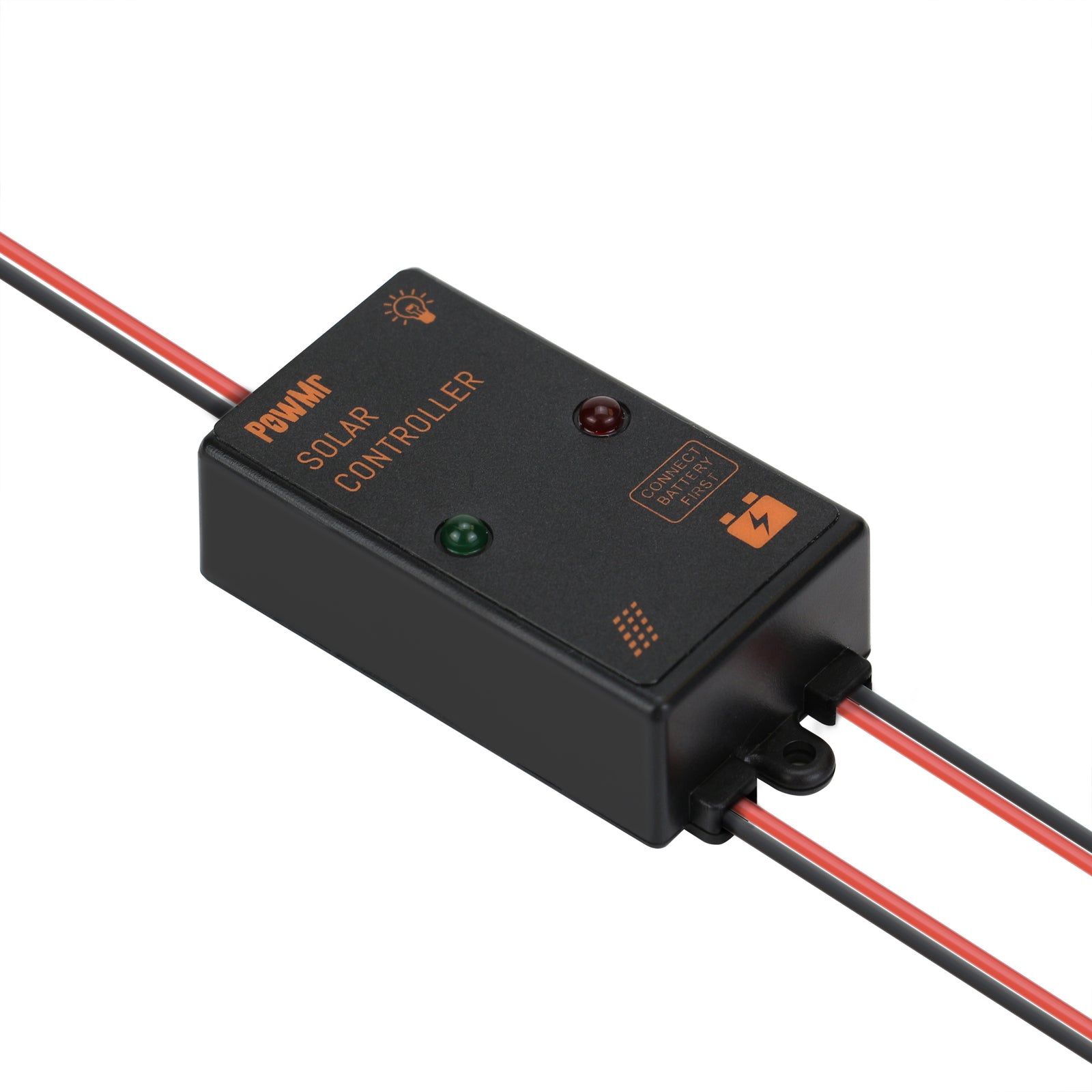

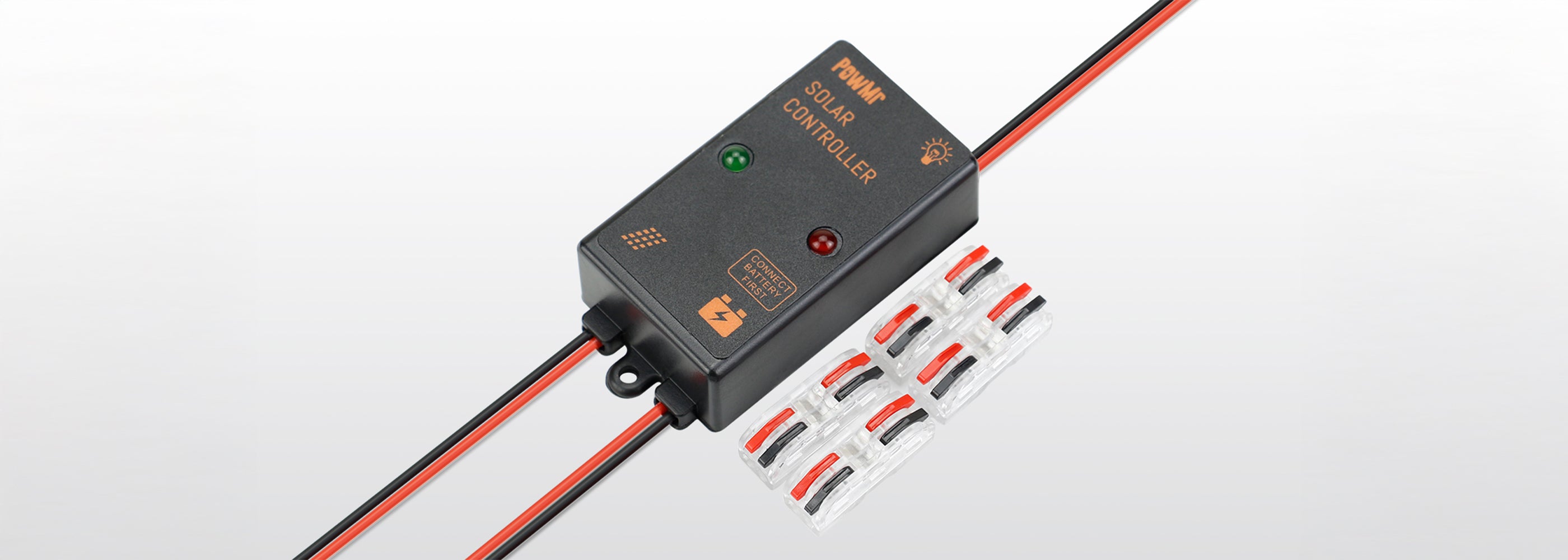

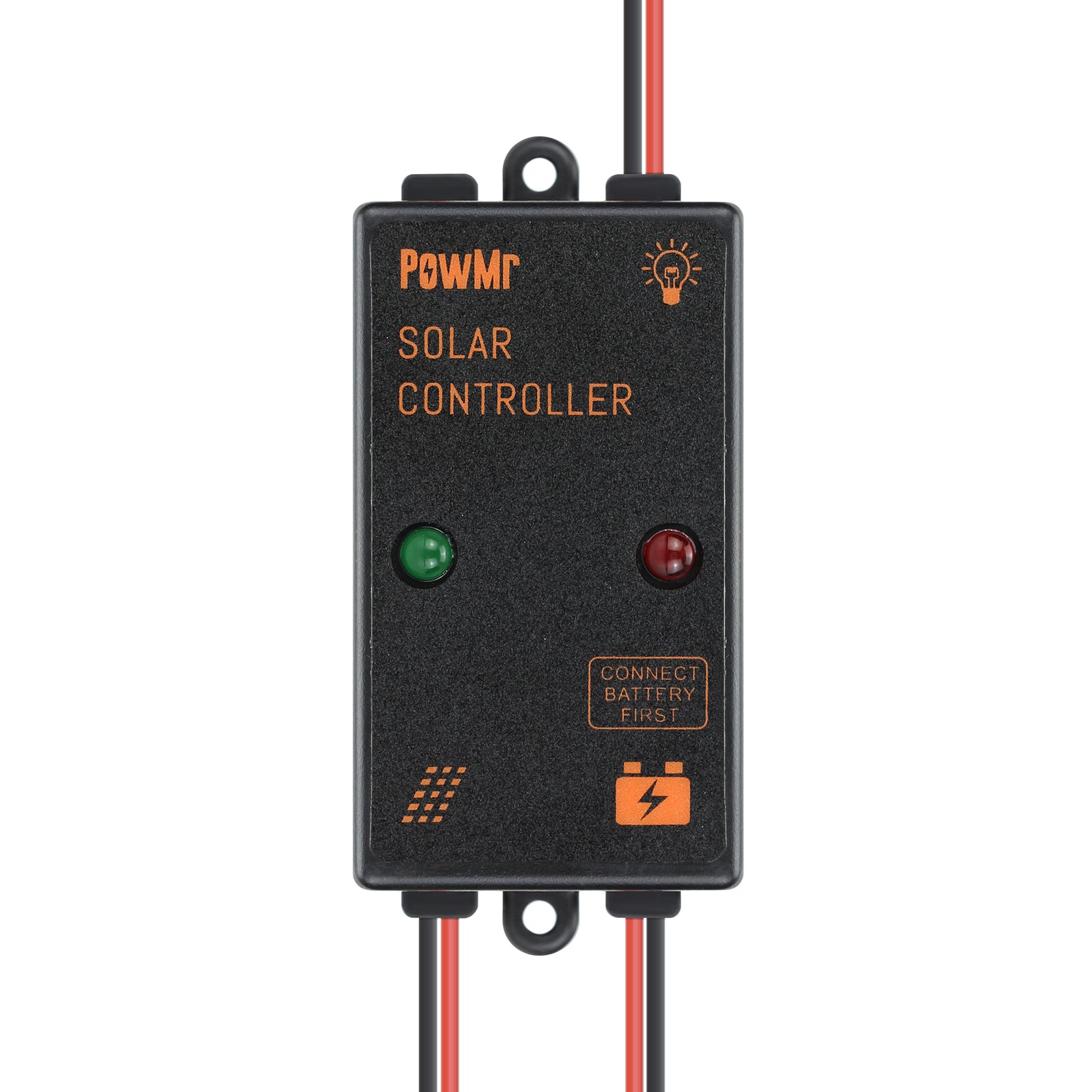

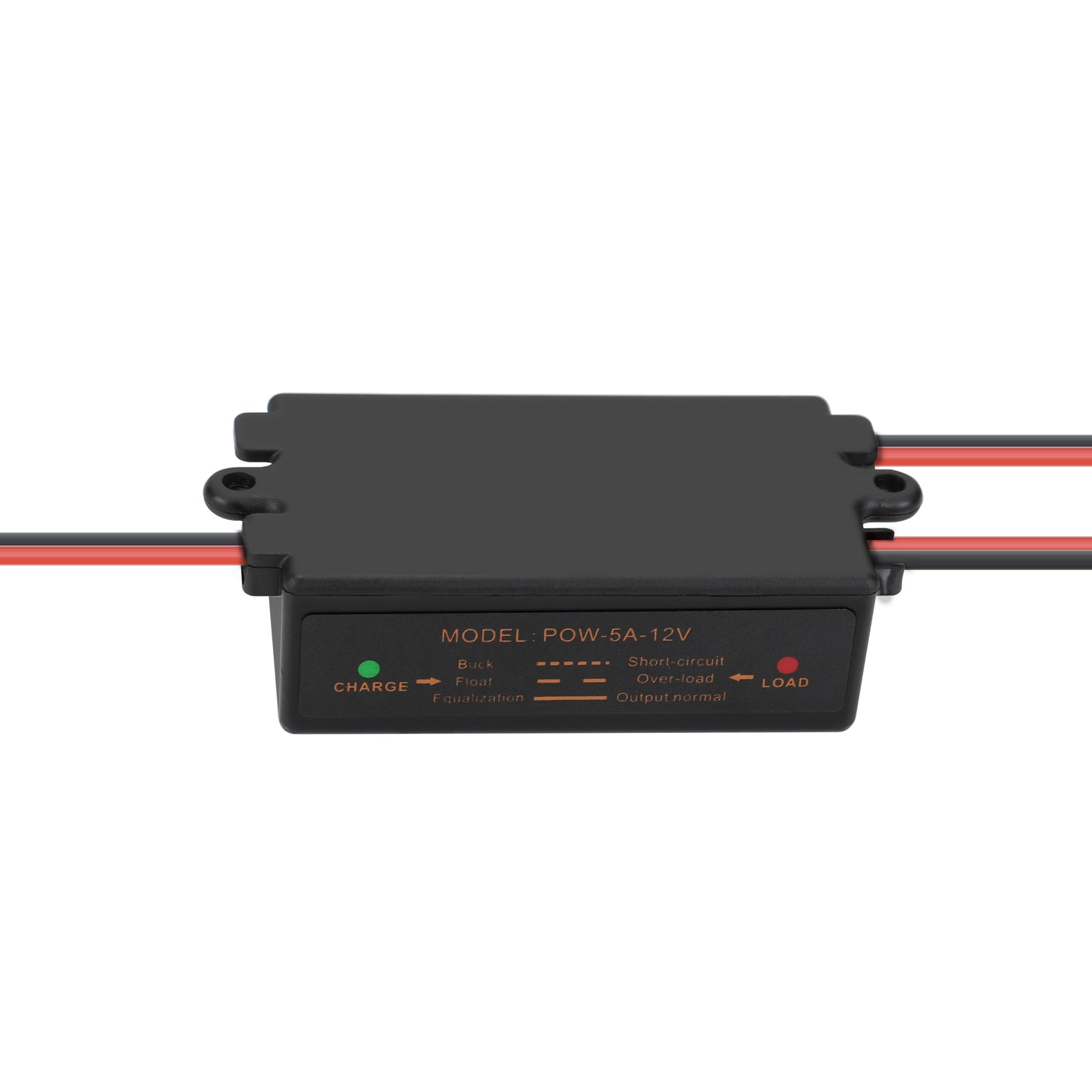

5A 12Volt PWM Solar Charge Controller
Description
Batt voltage | 12V auto adapt |
Charge/Discharge current | 5A |
Battery Type | Lead-Acid batteries (Open, AGM, Gel) |
Max Solar input | 22V |
Charge drop | <0.2V |
Discharge drop | <0.25V |
Equalization | 14.8V |
Bulk | 14.5V |
Acceptance | 14.2V PWM |
Float | 13.8V |
Charge reconnect | 13.0V |
Discharge stop | 11.2V |
Discharge reconnect |
12.6V |
Self-consume | <10mA |
Shipping
Free shipping to most countries, please consult us if you have any questions.
Warranty
2 year warranty inverters & controllers, 5 year warranty batteries, 15 year warranty solar panels.

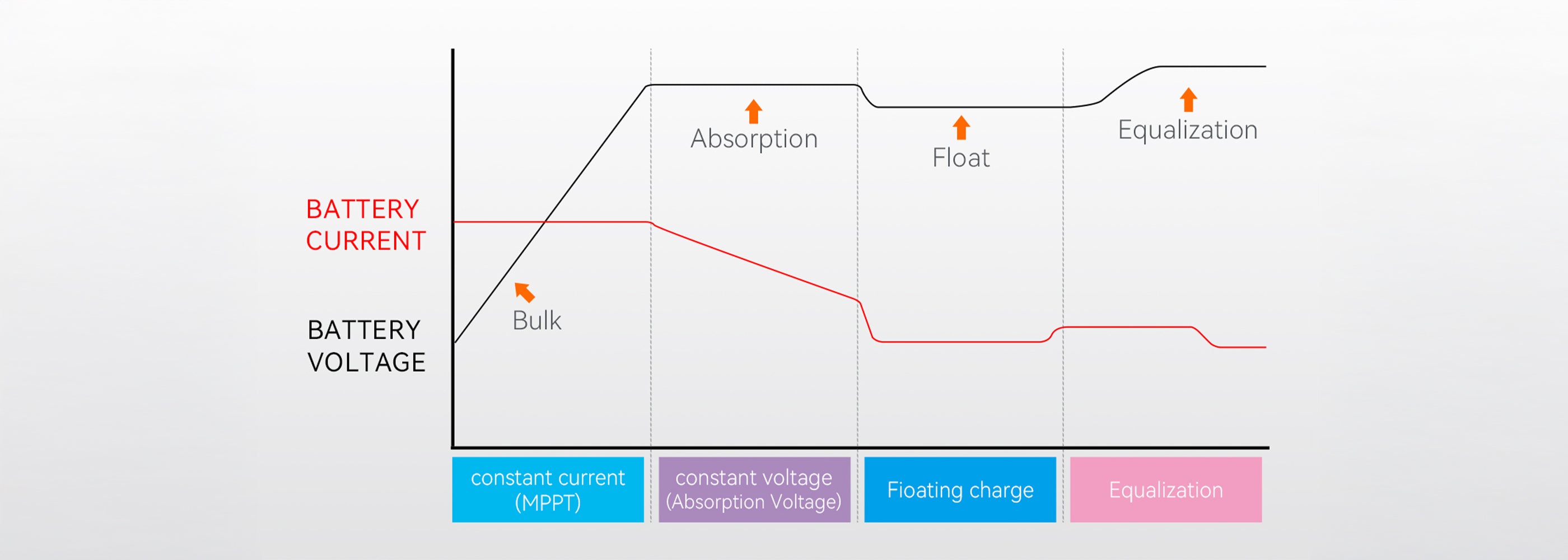

Intelligent 4-Stage PWM Charging

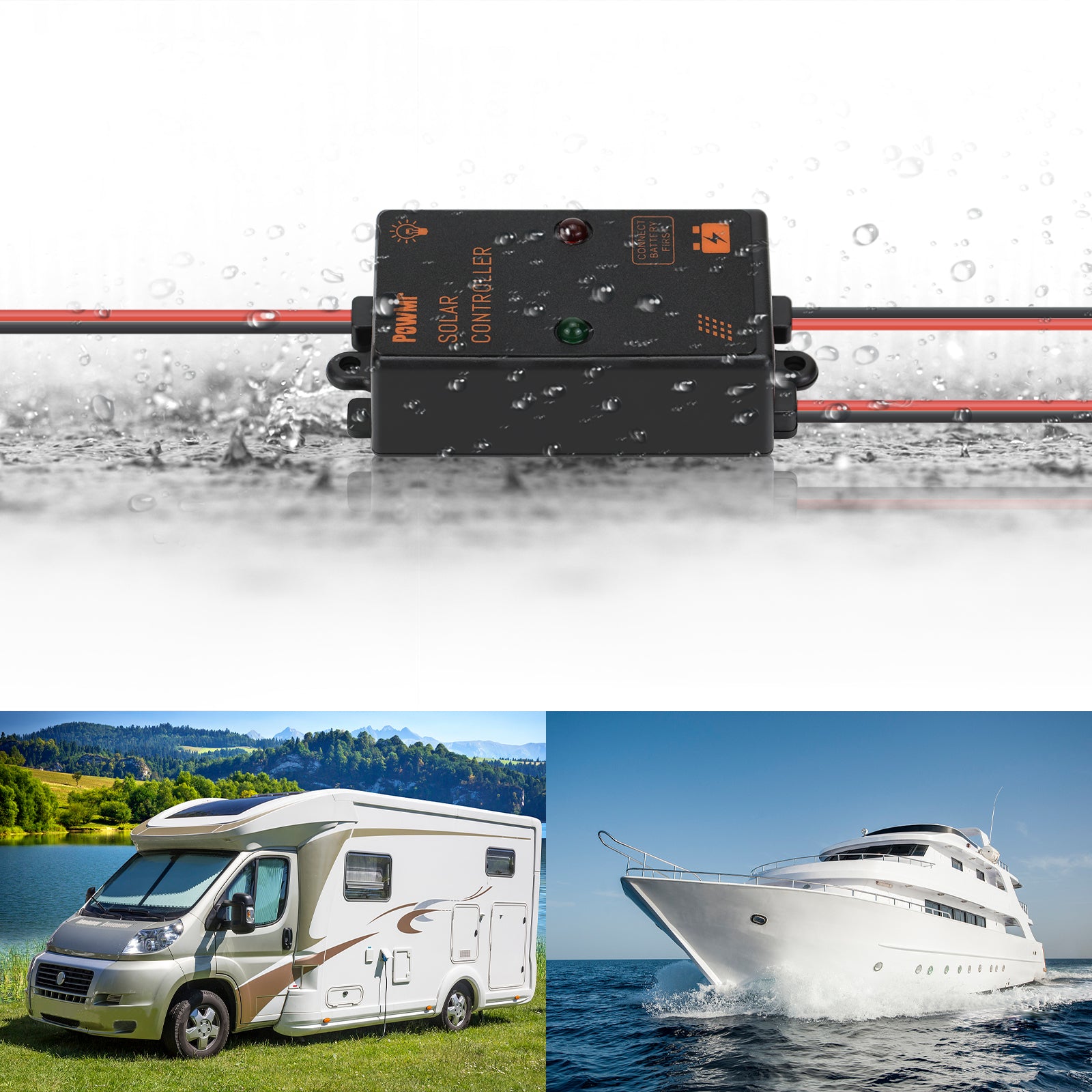

IP65 Water & Dust Proof

Full System Protection

Easy to Install
Intelligent 4-Stage PWM Charging
IP65 Water & Dust Proof
Full System Protection
Easy to Install
