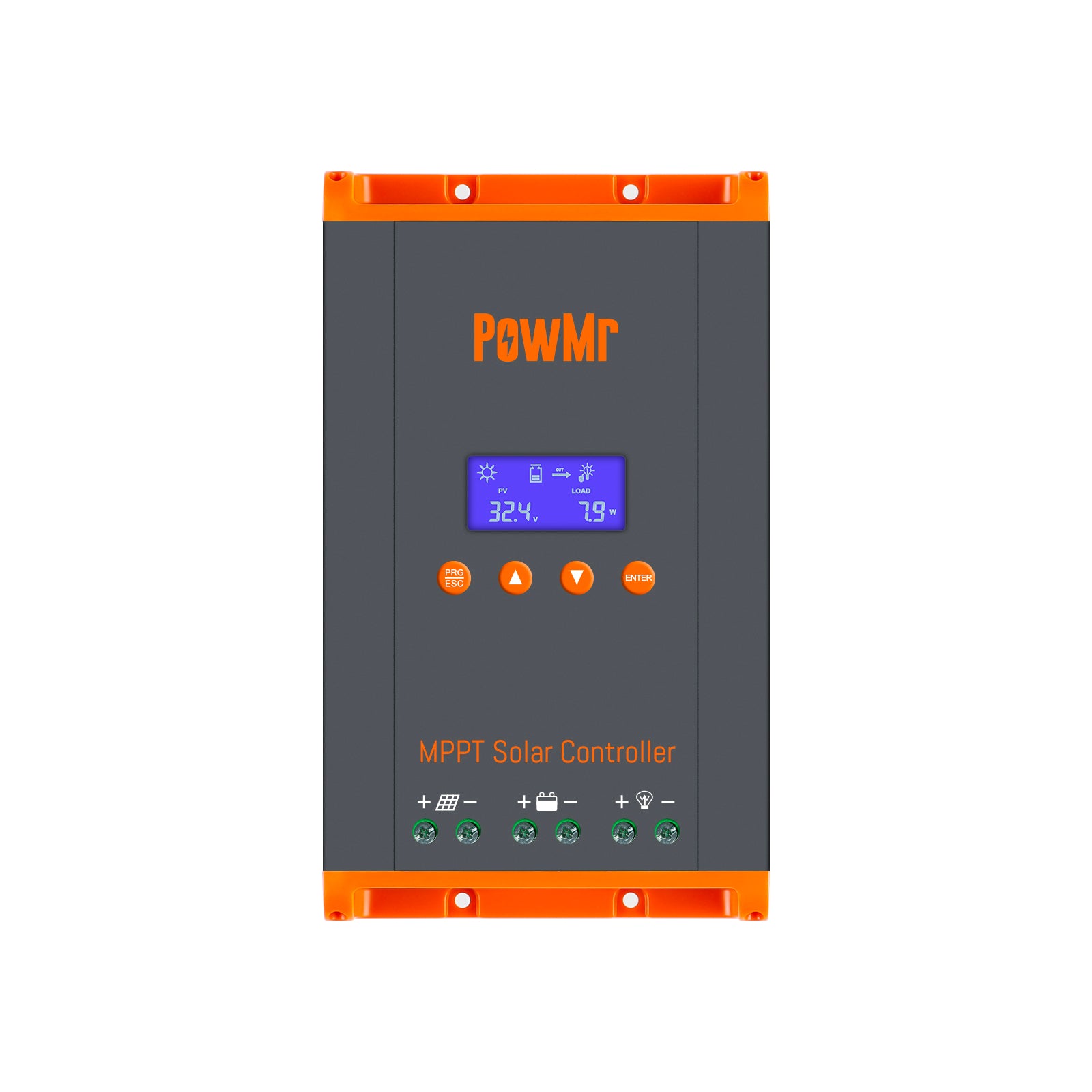

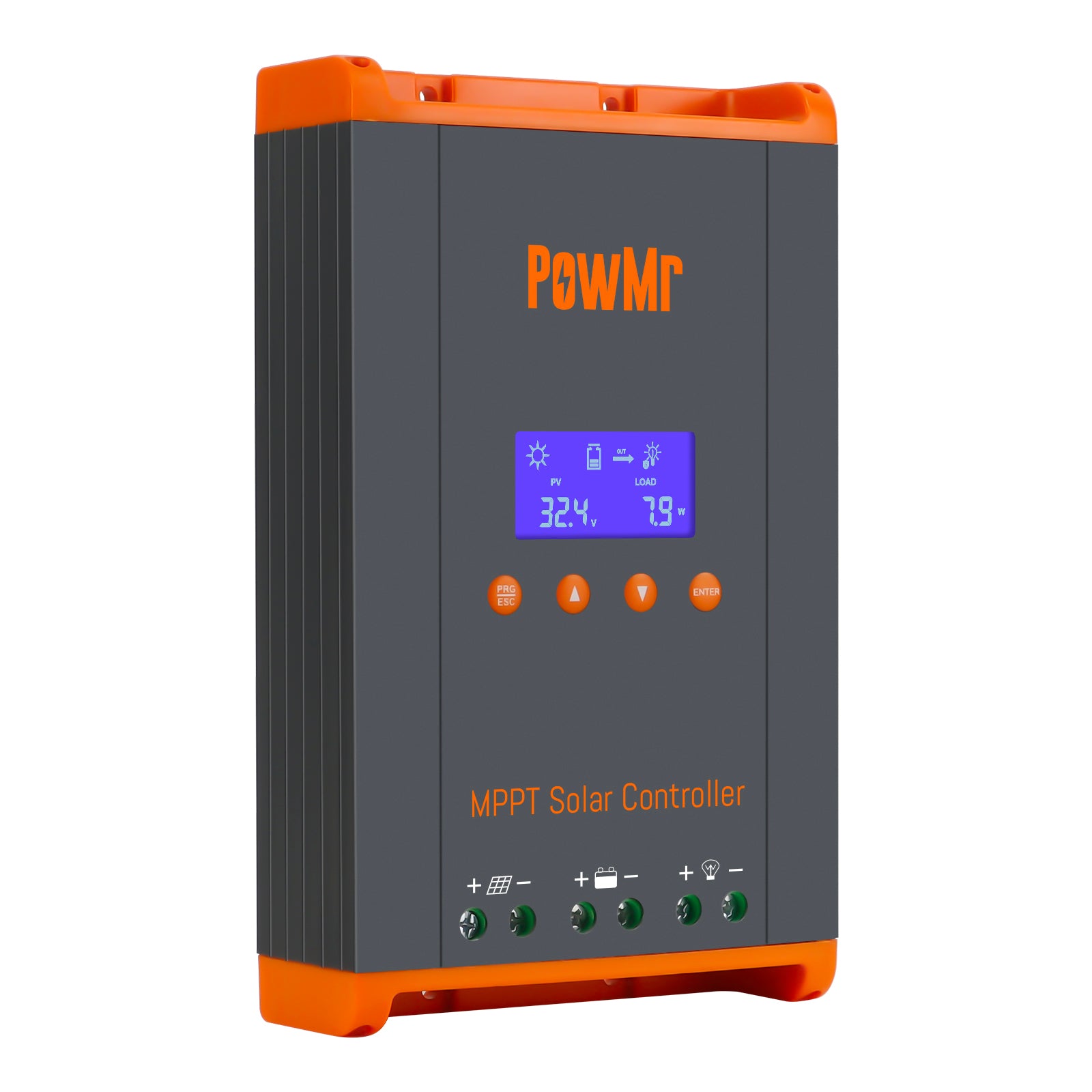

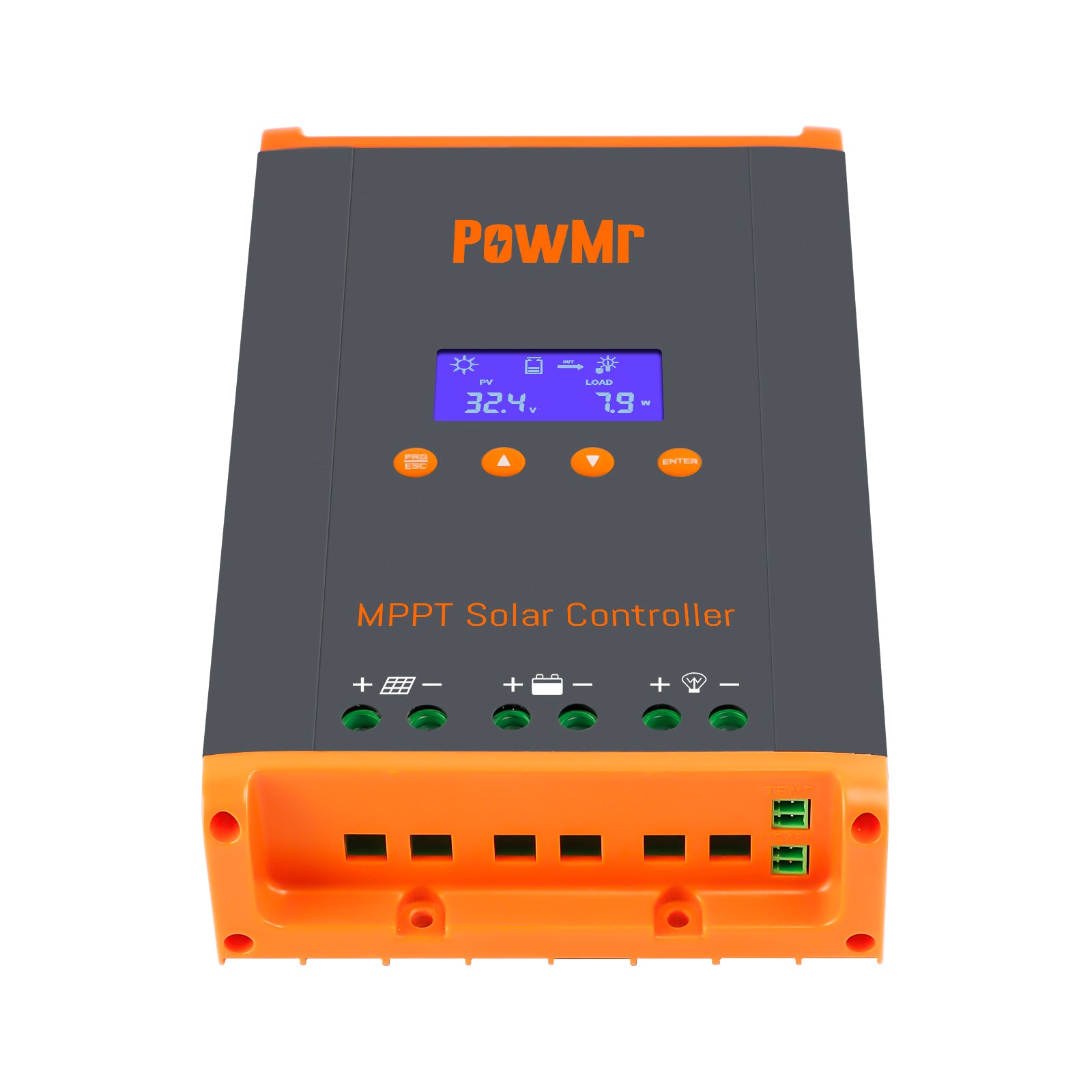

60A MPPT Solar Charge Controller for Parallel
60A MPPT Solar Charge Controller for Parallel
60A MPPT Solar Charge Controller for Parallel
60A MPPT Solar Charge Controller for Parallel

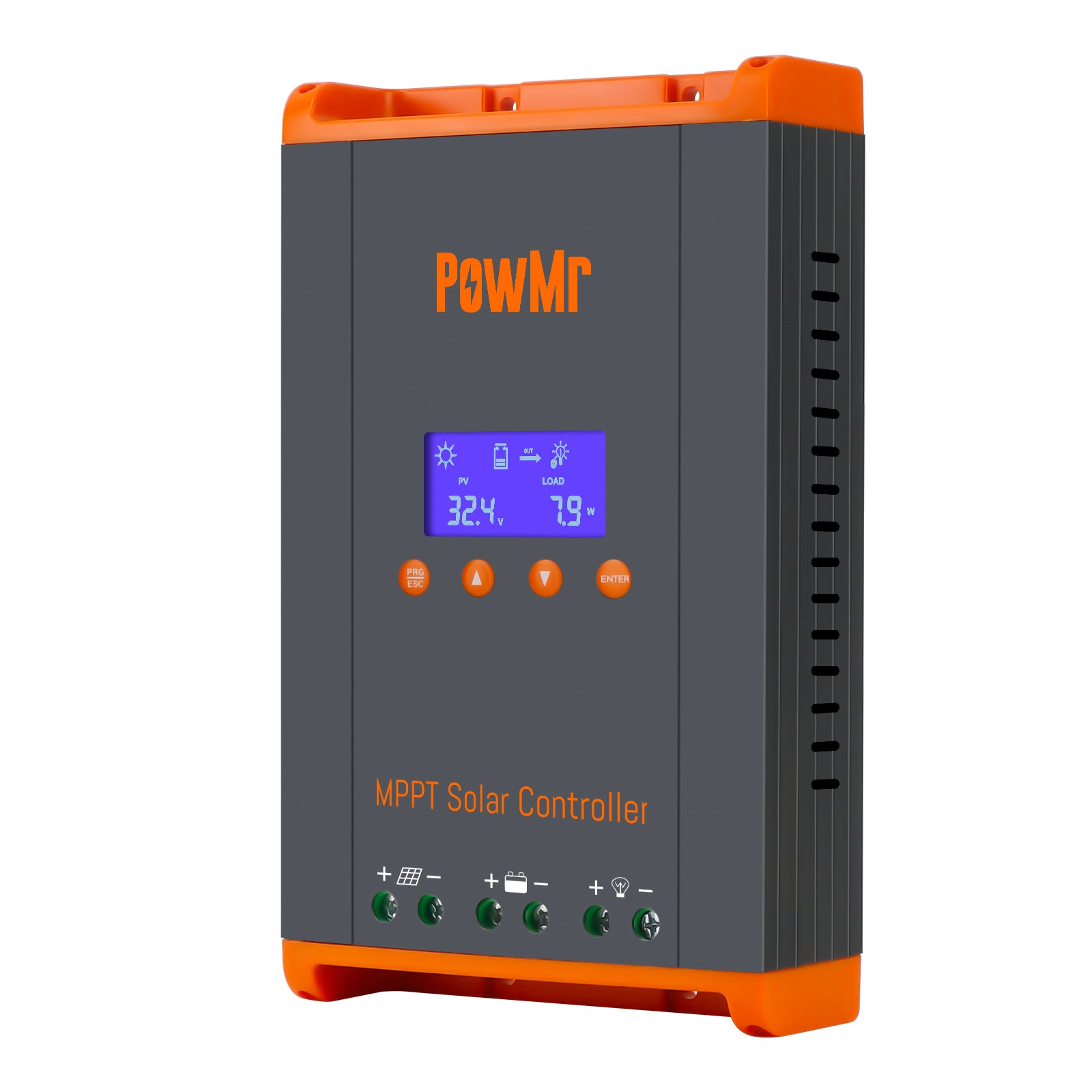

SKU: HHJ60-PRO

60A MPPT Solar Charge Controller for Parallel

Sale price$105.00 USD Regular price$119.00 USD
Save 12%

01

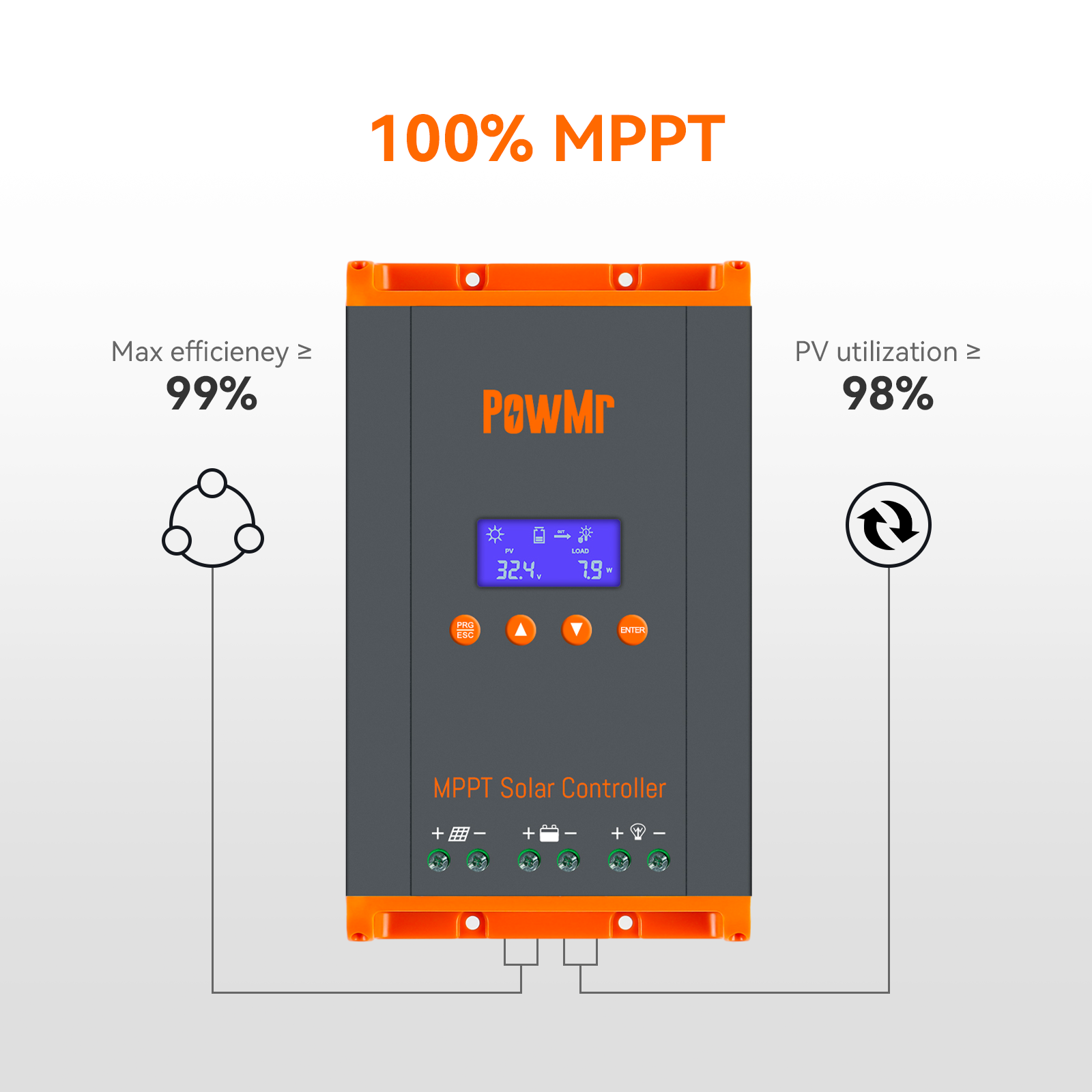

High-Efficiency Charging

Innovative MPPT technology with a tracking efficiency of up to 99.9% and a peak conversion efficiency of up to 98%, reducing power consumption, minimizing heat generation, and lowering operating temperatures. MPPT technology tracks the maximum power point voltage (Vmp) of the array as it varies with weather conditions, ensuring the collection of maximum power from the array throughout the day.

02

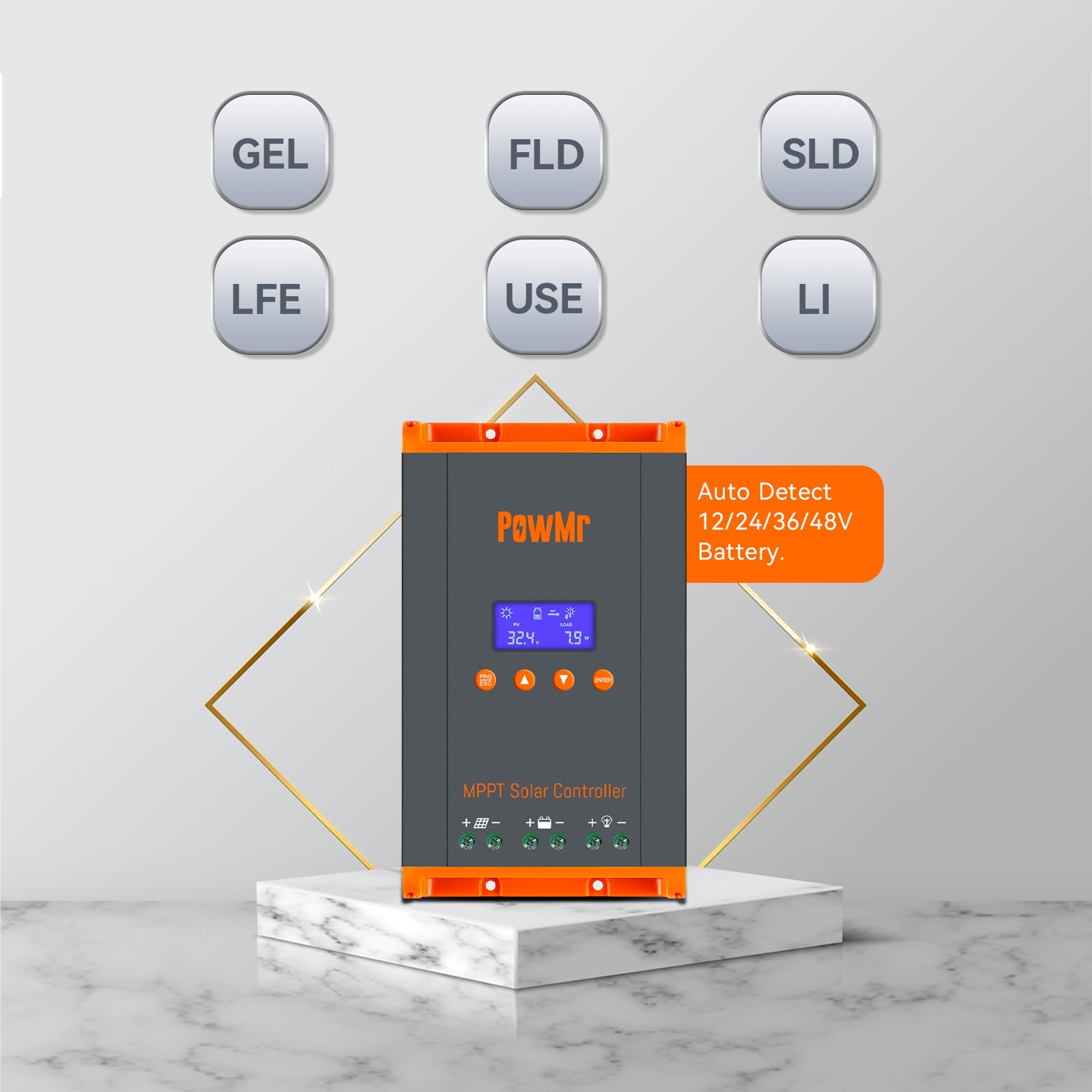

Versatile Application

The built-in DSP controller, coupled with high-performance capabilities, automatically detects 12V, 24V, 36V, and 48V solar battery voltages. It offers compatibility with a wide range of Deep Cycle battery options, including Lithium, LiFePO4, Li(NiCoMn)O2, Flooded, Sealed, Gel, and User-Defined batteries.

03

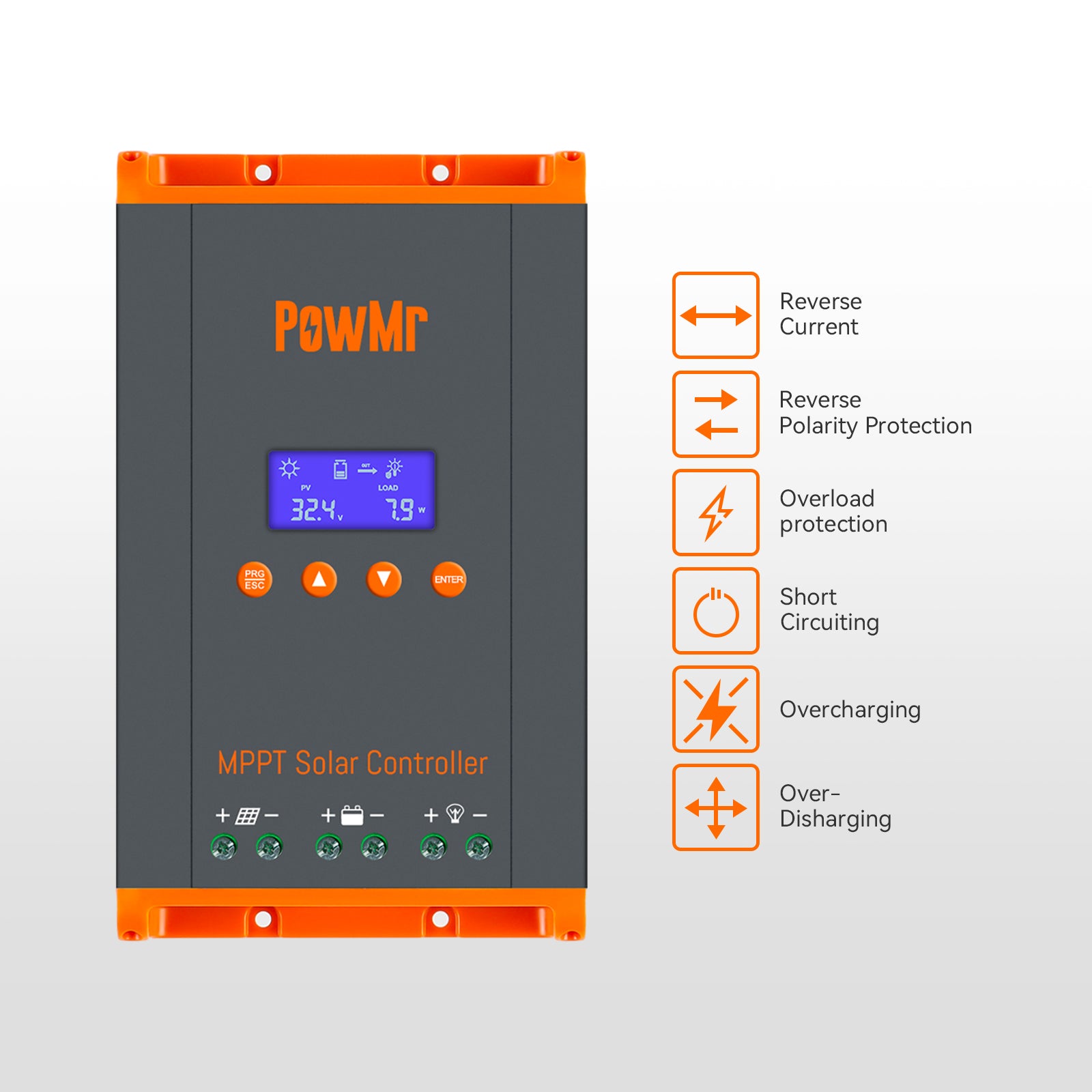

Multiple Electronic Protections

This MPPT solar charge controller offers comprehensive protection against PV short circuit, reverse polarity, battery overvoltage, overdischarge, load overcurrent, load short circuit, and over-temperature conditions to keep your system safe at all times. The intuitive LCD screen allows effortless adjustment of charging mode parameters to meet your requirements.

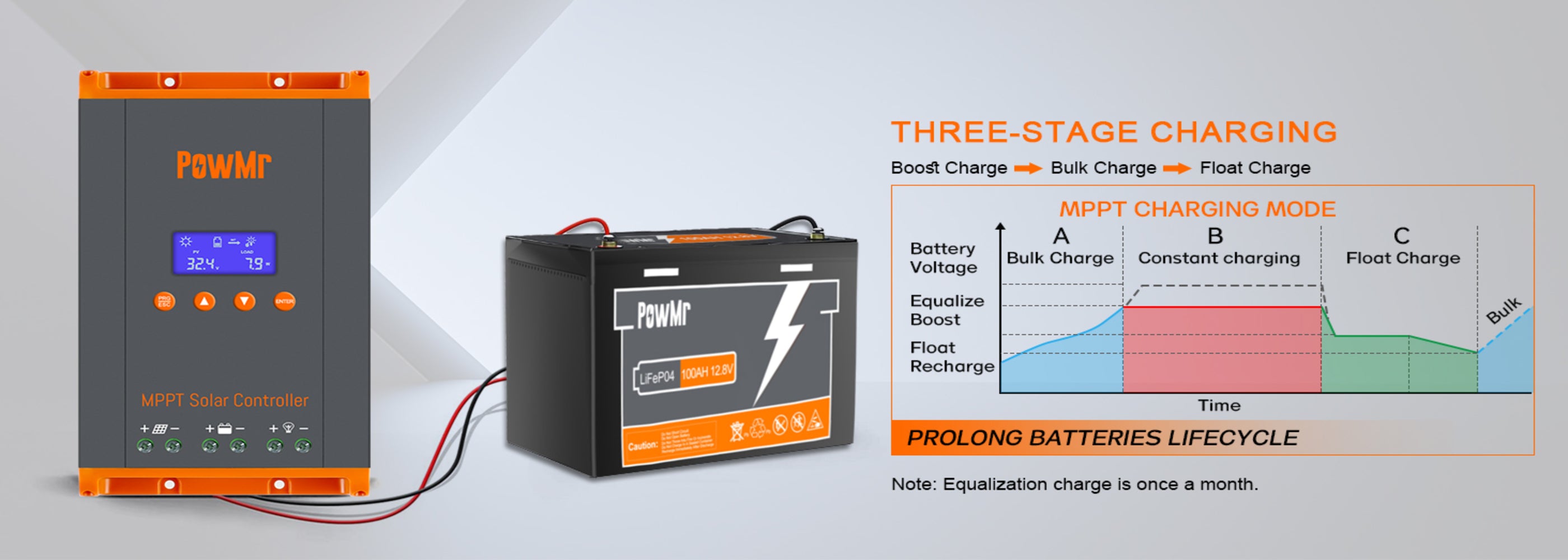

Solar charge controller three stage charging
04

Adaptive Boost Charging

During the initial charging phase, adaptive boost charging monitors battery response and automatically determines the duration of the boost stage for each independent charging cycle, ensuring that the battery is fully charged at any discharge level or capacity while avoiding overcharging during the boost charging stage (extends battery life).

05

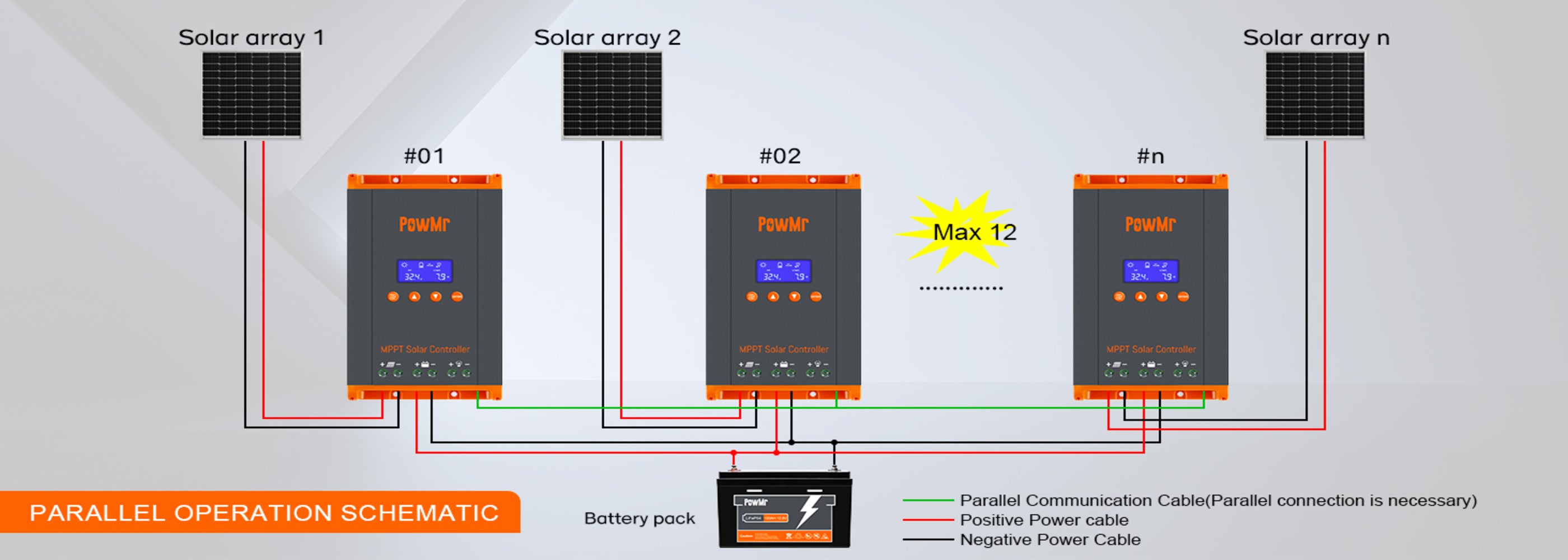

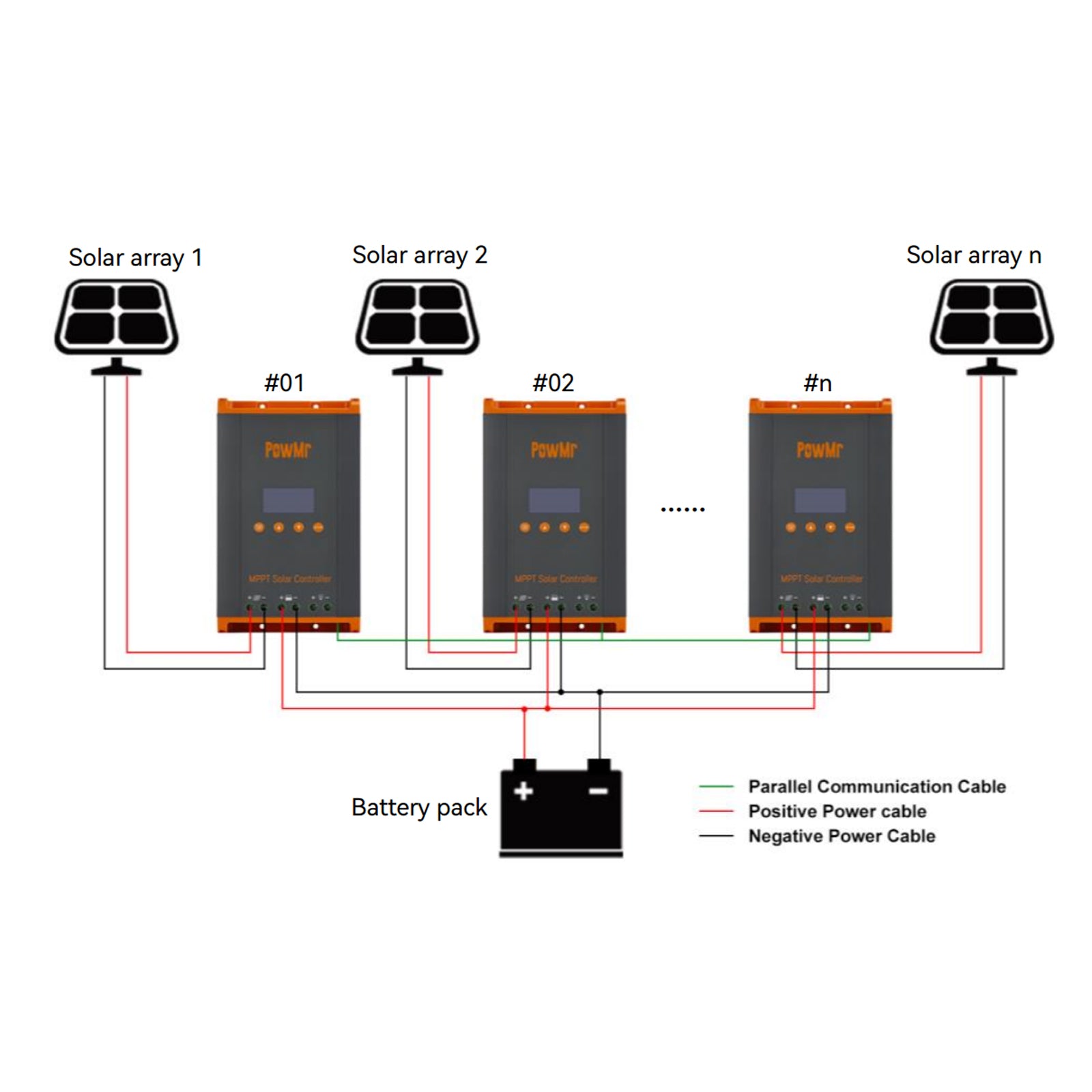

Up to 12 Units in Parallel

The parallel operation function allows for easy expansion of the solar panel configuration and energy storage capacity limits, thus increasing the scale of energy storage.
01

High-Efficiency Charging

Innovative MPPT technology with a tracking efficiency of up to 99.9% and a peak conversion efficiency of up to 98%, reducing power consumption, minimizing heat generation, and lowering operating temperatures. MPPT technology tracks the maximum power point voltage (Vmp) of the array as it varies with weather conditions, ensuring the collection of maximum power from the array throughout the day.

02

Versatile Application

The built-in DSP controller, coupled with high-performance capabilities, automatically detects 12V, 24V, 36V, and 48V solar battery voltages. It offers compatibility with a wide range of Deep Cycle battery options, including Lithium, LiFePO4, Li(NiCoMn)O2, Flooded, Sealed, Gel, and User-Defined batteries.

03

Multiple Electronic Protections

This MPPT solar charge controller offers comprehensive protection against PV short circuit, reverse polarity, battery overvoltage, overdischarge, load overcurrent, load short circuit, and over-temperature conditions to keep your system safe at all times. The intuitive LCD screen allows effortless adjustment of charging mode parameters to meet your requirements.

04

Adaptive Boost Charging

During the initial charging phase, adaptive boost charging monitors battery response and automatically determines the duration of the boost stage for each independent charging cycle, ensuring that the battery is fully charged at any discharge level or capacity while avoiding overcharging during the boost charging stage (extends battery life).

05

Up to 12 Units in Parallel

The parallel operation function allows for easy expansion of the solar panel configuration and energy storage capacity limits, thus increasing the scale of energy storage.

Solar charge controller three stage charging

Solar Controller

Product specification

Important Notice: Please Read Product Manual Before Buying. Detailed specifications and features provided. Contact our support team for assistance. Thank you for choosing us.

Model

HHJ60-PRO

Nominal System Voltage (V)

12/24/36/48

Rated Charging Current (A)

60

12V System (W/V)

720/20~80

24V System (W/V)

1440/37~105
