Step1. Installation

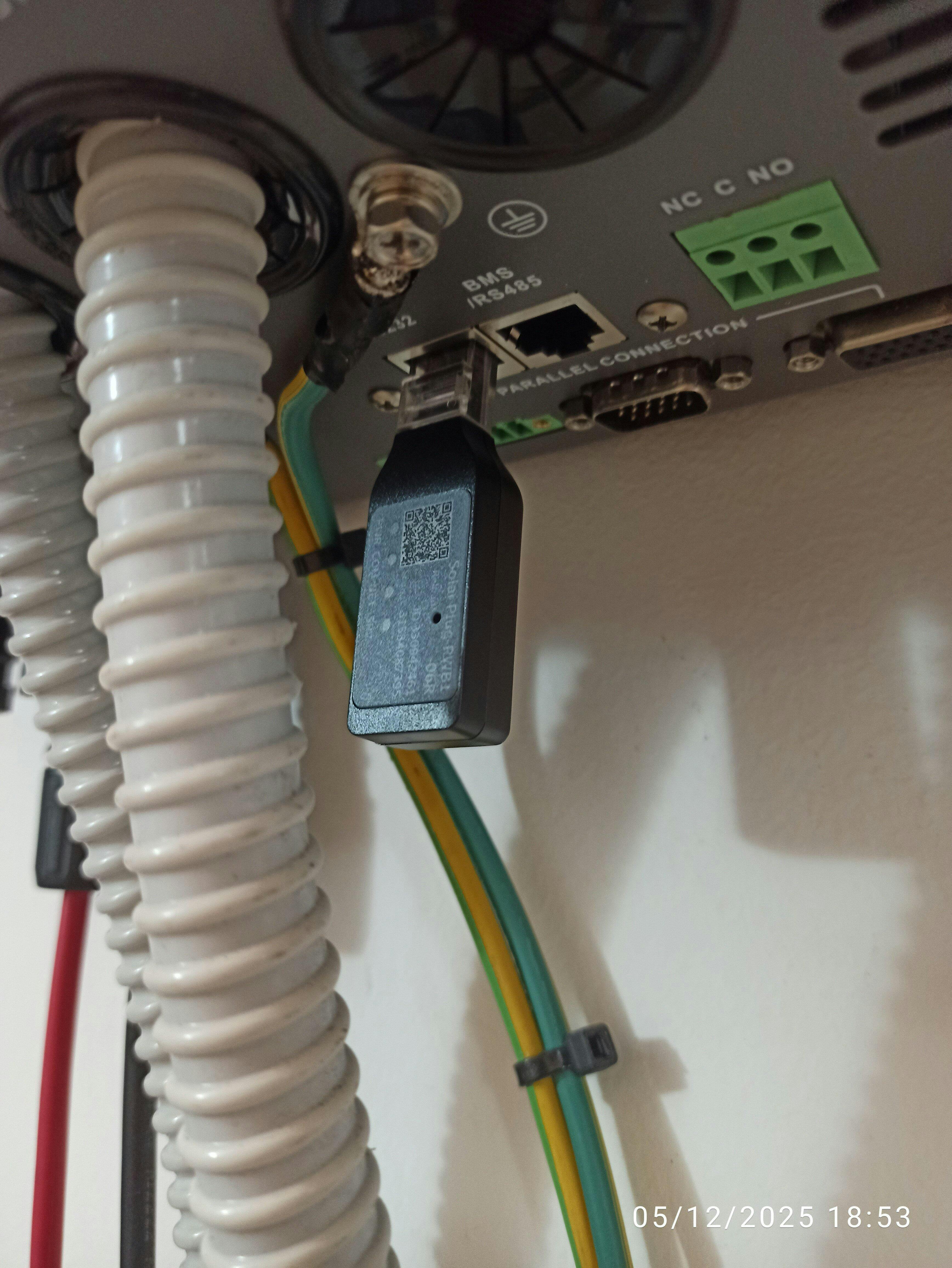

β Align the RJ45 aviation plug of the Wi-Fi Plug Pro with the inverter and plug it in.
β‘ Confirm the status of the LED indicator (When 4 LED indicators keep on, showing the normal working status).
Note:
1. This WIFI module is only compatible with the inverter below:
POW-RELAB 3KU
POW-RELAB 3KE
POW-RELAB 5KU
POW-RELAB 5KE
POW-RELAB 10KU
POW-RELAB 10KE
2. Please do not place the wifi module directly on the inverter to avoid inverference.
Step2. Wireless Router Connection
2.1 Download APP and Wi-Fi connection
β Scan the QR Code from the cover of this guideline and download the APP.
β‘ Open the APP and select "BLE Config" on the login interface.
2.2 Wi-Fi Config
β Wait for the APP to scan for nearby bluetooth devices, and select the bluetooth device with the same PN number as the WFBLE.RTU.PlugPro for pairing and connection.
β‘ After the connection is successful, go to "Network Settings".
2.3 Network Setting
β router and password that can access the Internet, and click "Settings" to complete the network settings.
β‘ After the data collector is restarted successfully, and shows that βthe Wi-Fi configuration is successful", click the confirm button.
Step3. Create Account And Datalogger
3.1 Create Account
β Open the APP, tap the Register button.
β‘ According to the prompt information, complete creating an account.
3.2 Add Datalogger
β Login the account and click the list button on the bottom of the home page.
β‘ Tap the βοΌβ button on the top-right corner of the list page.
β’ Scan the datalogger PN on the WFBLE.RTU.PlugPro, or input it manually.
β£ According to the prompts, type in the information to finish add datalogger.
