10A 24V 36V 48V 60V 72V MPPT Solar Charge Controller

SKU: POW-Boost 10A

10A 24V 36V 48V 60V 72V MPPT Solar Charge Controller

Name: 10A 24V 36V 48V 60V 72V MPPT Solar Charge Controller
Brand: PowMr
SKU: POW-Boost 10A
Price: 36.00 USD
Availability: InStock

$36.00 USD

$39.99 USD

Save 10%

5.0

Quantity:

Description

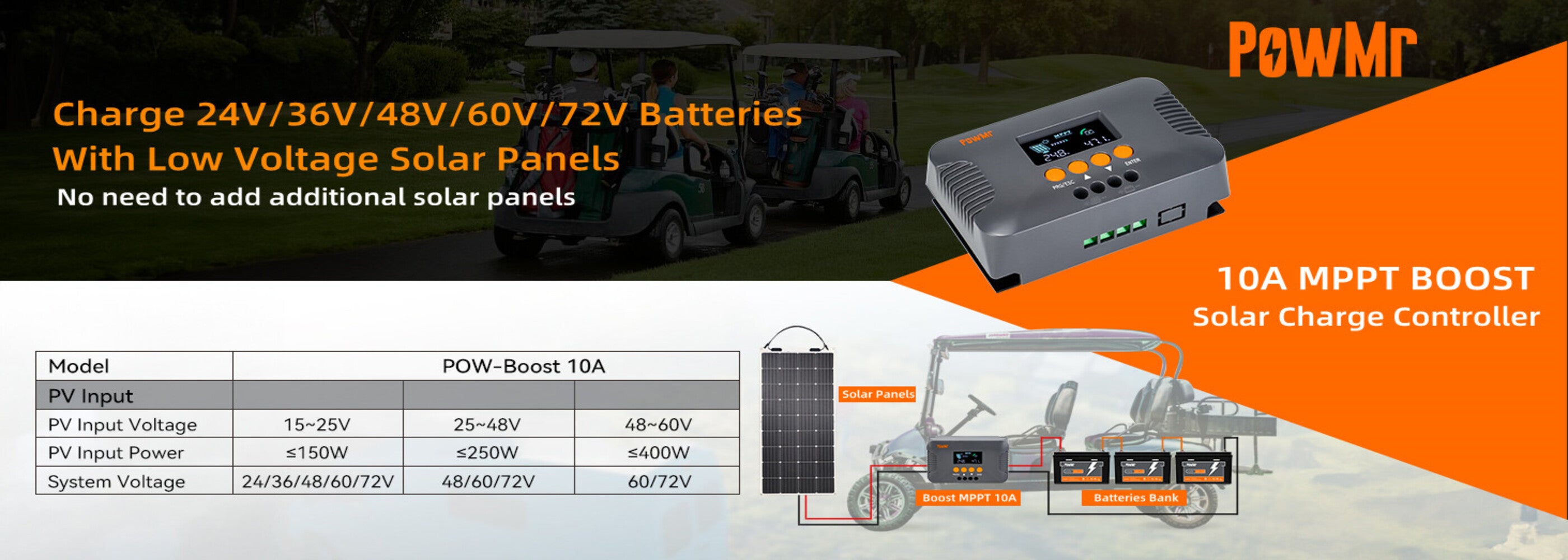

PV Input
PV Input Voltage	15~25V 25~48V 48~60V
PV Input Power	≤150W ≤250W ≤400W
System Voltage	24/36/48/60/72V 48/60/72V 60/72V
Charging Mode
Charging technology	MPPT
Charge Algorithm	3-Stage
Self-consumption	<2W
Nominal System Voltage	24V/36V/48V/60V/72V
Battery Voltage Range	20~88V
Environment
Operating Temperature	-35℃~+65℃
Humidity Range	≤95%
General Specification
Protection Class	IP32
Dimension	1408550mm
Net weight	305g

01

Boost Voltage Charging Controller

Designed for scenarios where the photovoltaic input voltage is lower than the battery voltage, this controller effectively boosts the voltage to match the battery's charging requirements. It overcomes limitations caused by insufficient voltage from a single photovoltaic panel, ensuring reliable battery charging. This 10Amp MPPT solar charge controller has up to 99% tracking efficiency and peak conversion efficiency of 98% to allow you to charge the battery from solar panes at the maximumpower point!

Solar charge controller three stage charging

02

Multi-stage Charge Algorithm

Optimize your battery charging with three-stage MPPT charging capability. From bulk charge to boost charge, Float Charge, it ensures comprehensive and efficient charging. Customize your charging voltages effortlessly via the LCD screen, tailoring the charging process to your specific requirements.

03

Flexible Application

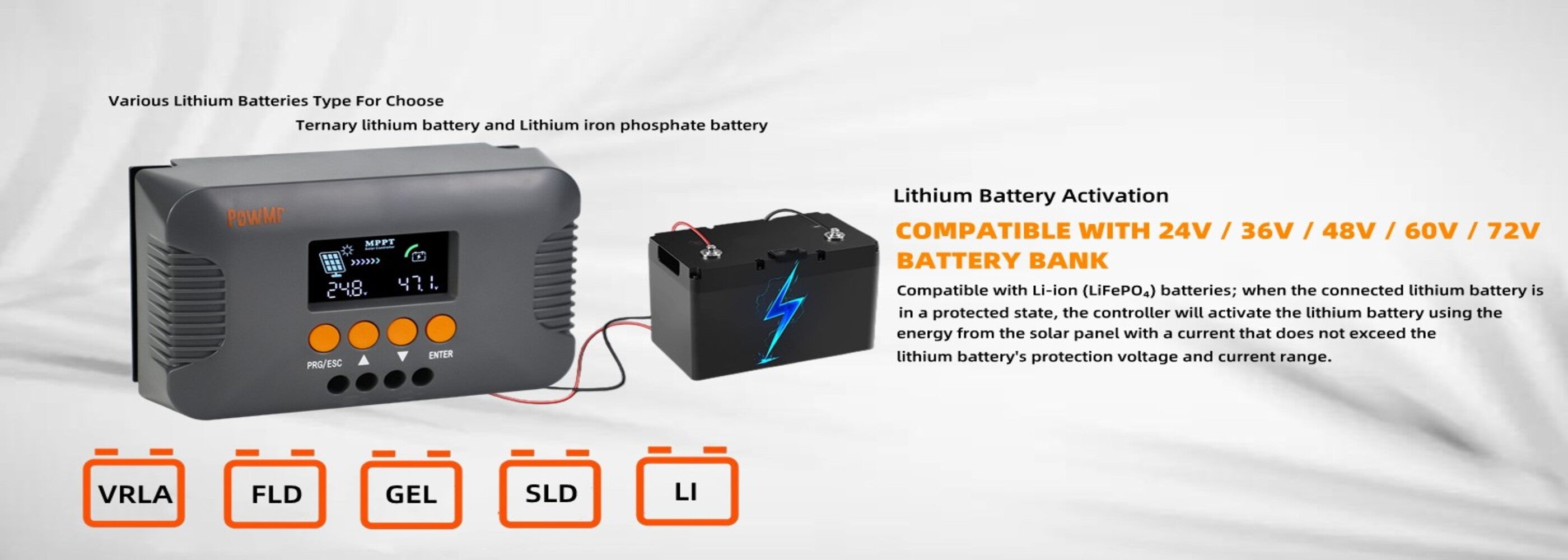

Integrated charge presets combined with adaptive charge logic are well suited for most common battery types, such as LiFePO4, Gel and flooded lead-acid. Compatible with 24V/36V/48V/60V/72V system voltage.

04

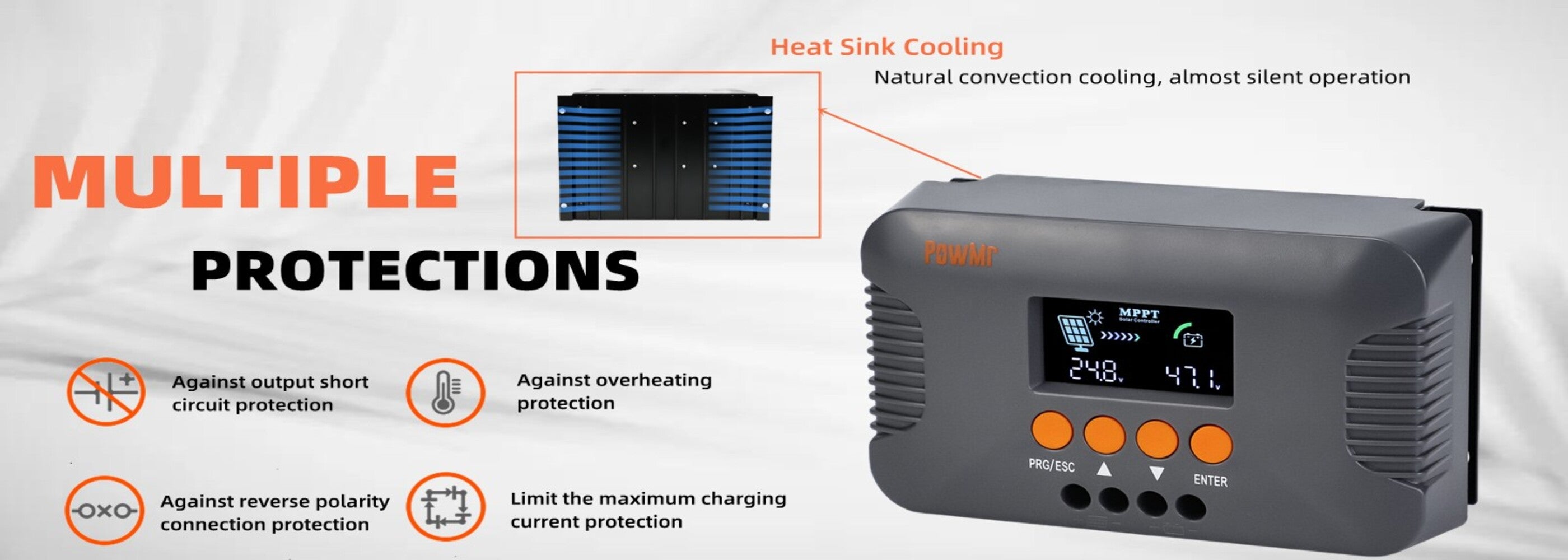

Durable & Safe

Adaptive boost charge monitors the battery’s response during initial charging and intelligently determines the appropriate boost charge duration for each individual charge cycle. This ensures that the battery is fully recharged regardless of the discharge level or capacity and avoids excessive time at the elevated boost charging voltage (that can accelerate battery aging).

01

Boost Voltage Charging Controller

Designed for scenarios where the photovoltaic input voltage is lower than the battery voltage, this controller effectively boosts the voltage to match the battery's charging requirements. It overcomes limitations caused by insufficient voltage from a single photovoltaic panel, ensuring reliable battery charging. This 10Amp MPPT solar charge controller has up to 99% tracking efficiency and peak conversion efficiency of 98% to allow you to charge the battery from solar panes at the maximumpower point!

02

Multi-stage Charge Algorithm

Optimize your battery charging with three-stage MPPT charging capability. From bulk charge to boost charge, Float Charge, it ensures comprehensive and efficient charging. Customize your charging voltages effortlessly via the LCD screen, tailoring the charging process to your specific requirements.

03

Flexible Application

Integrated charge presets combined with adaptive charge logic are well suited for most common battery types, such as LiFePO4, Gel and flooded lead-acid. Compatible with 24V/36V/48V/60V/72V system voltage.

04

Durable & Safe

Adaptive boost charge monitors the battery’s response during initial charging and intelligently determines the appropriate boost charge duration for each individual charge cycle. This ensures that the battery is fully recharged regardless of the discharge level or capacity and avoids excessive time at the elevated boost charging voltage (that can accelerate battery aging).

10A 24V 36V 48V 60V 72V MPPT Solar Charge Controller

Boost Voltage Charging Controller

Multi-stage Charge Algorithm

Flexible Application

Durable & Safe
