6.5KW 48Vdc Hybrid Inverter 110/240Vac Split Phase Supports 6 Units in Parallel

Note: Grid-feed rules vary by region. Contact us before purchase if grid export is needed.

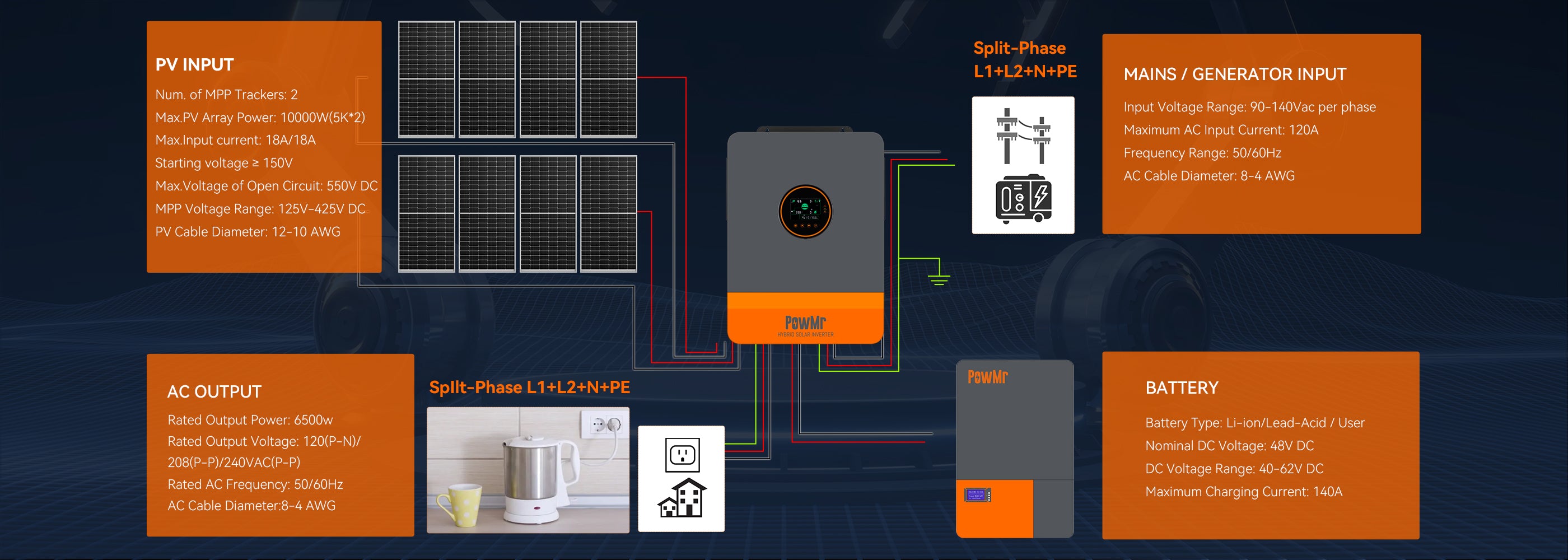

6500W pure sine wave inverter delivers stable 120V/240V AC output, combining energy from solar array, battery, and AC grid for reliable, efficient, and flexible power in off-grid solar or home energy storage systems.

Supports single-phase (100–120V) or split-phase (120/240V) operation with configurable voltage settings per phase, including 100V, 105V, 110V, 120V, and 127V, to meet diverse appliance power requirements.

Built-in dual 140A (70*2) MPPT charge controllers achieve 99.9% tracking efficiency, allowing separate solar arrays for flexible system design based on varying environmental conditions and diverse installation site power demands.

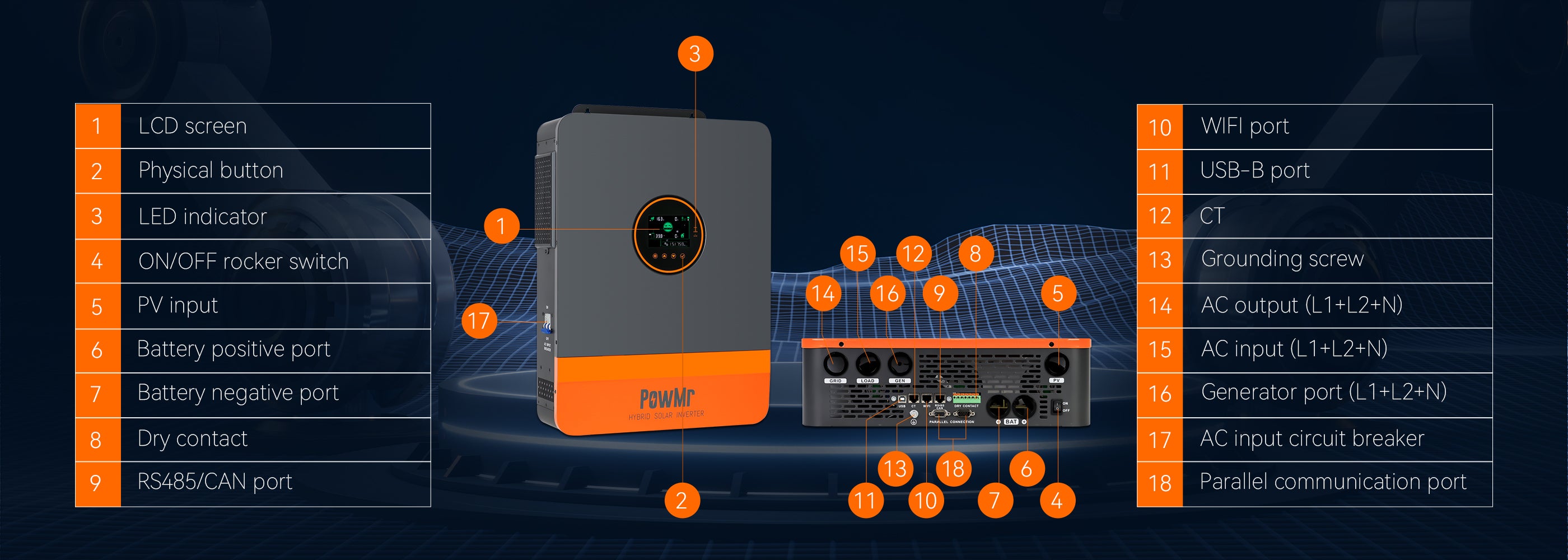

Supports fast charging up to 140A for most battery types, including LiFePO4, lithium-ion, lead-acid, sealed, and user-defined batteries. Equipped with CAN, USB, and RS485 communication and complete protection against short circuits, over/under voltage, overload, and reverse current.

Supports up to 6 inverters in parallel for a combined output of up to 39,000W. Parallel configuration enables two-phase or three-phase 208V output for larger systems and scalable commercial or industrial power applications.

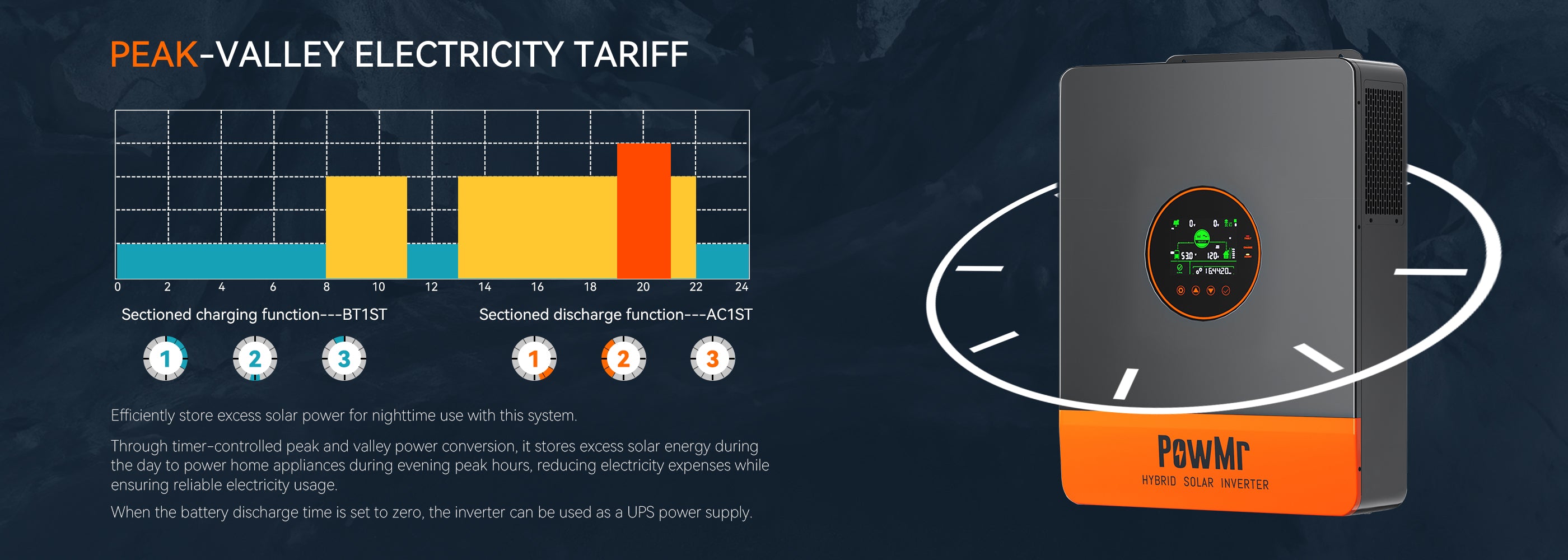

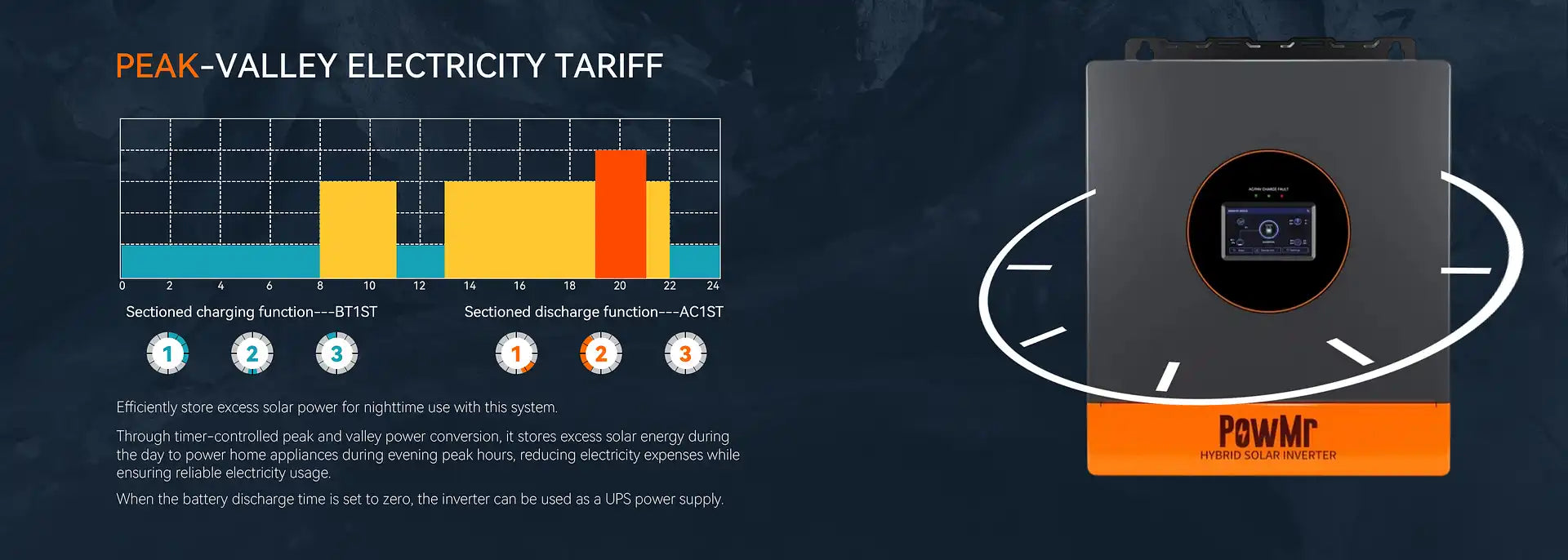

With a programmable timer, the inverter optimizes energy usage by shifting load between peak and off-peak periods. Features four charging modes (Solar Only, Mains Priority, Solar Priority, Hybrid) and two output modes (Utility Bypass and Inverter Output).
