10KW 48Vdc العاكس الهجين 110/240Vac مرحلة مقسمة يدعم 6 وحدات بالتوازي

Note: Grid-feed rules vary by region. Contact us before purchase if grid export is needed.

Meet high energy demand for 120V/240V AC home and small businesses with the 10,000W solar inverter. Pure sine wave output delivers stable, clean power, efficiently managing energy flow between solar, battery, and grid.

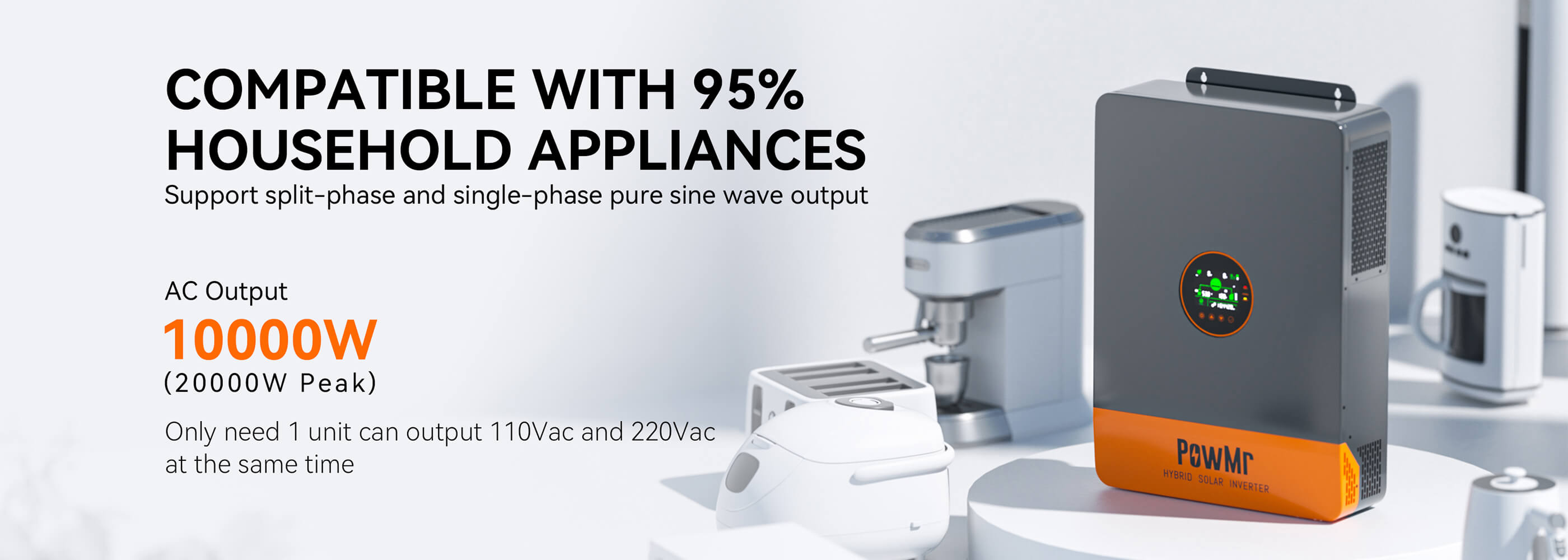

Supports both single-phase (100–120V) and split-phase (120/240V) operation, with adjustable voltage per phase (100V, 105V, 110V, 120V, or 127V), ensuring compatibility with a wide range of appliances.

Achieve 99.9% tracking efficiency with 200A(100*2) MPPT charge controllers, separately managing 5,500W of solar input each. Maximizes energy harvest under changing conditions and complex installation layouts.

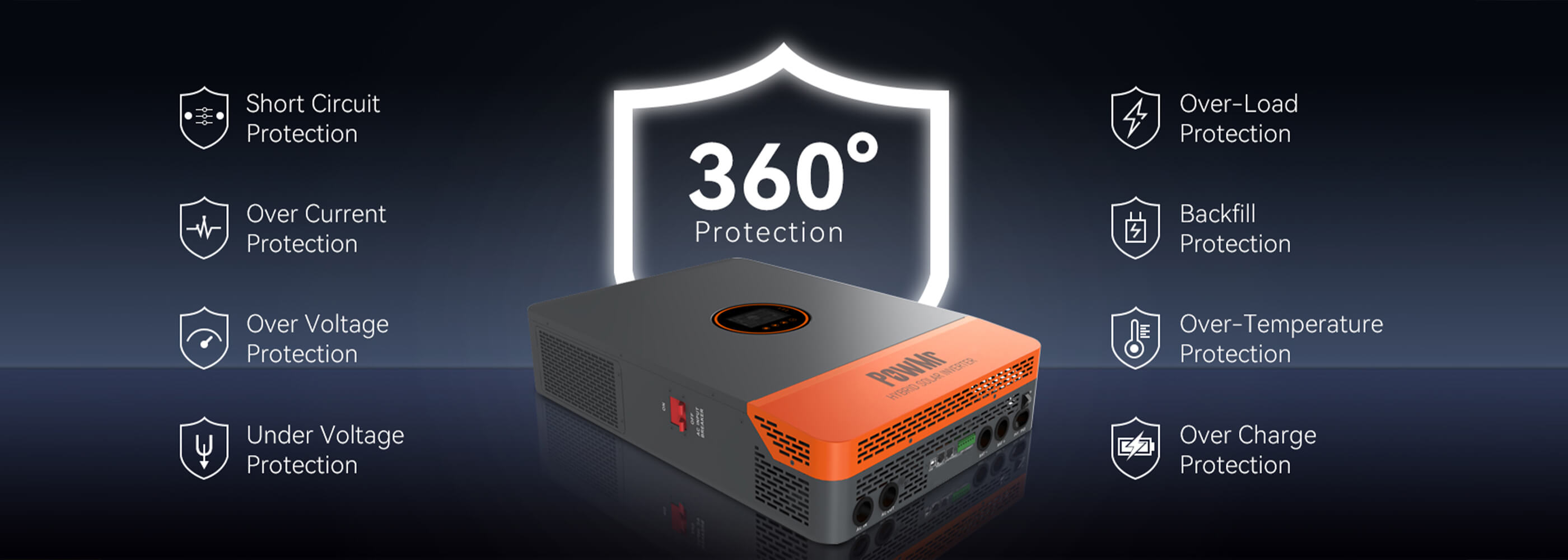

Supports fast charging up to 200A for most battery types, including LiFePO4, lithium-ion, lead-acid, sealed, and user-defined batteries. Equipped with CAN, USB, and RS485 communication and complete protection against short circuits, over/under voltage, overload, and reverse current.

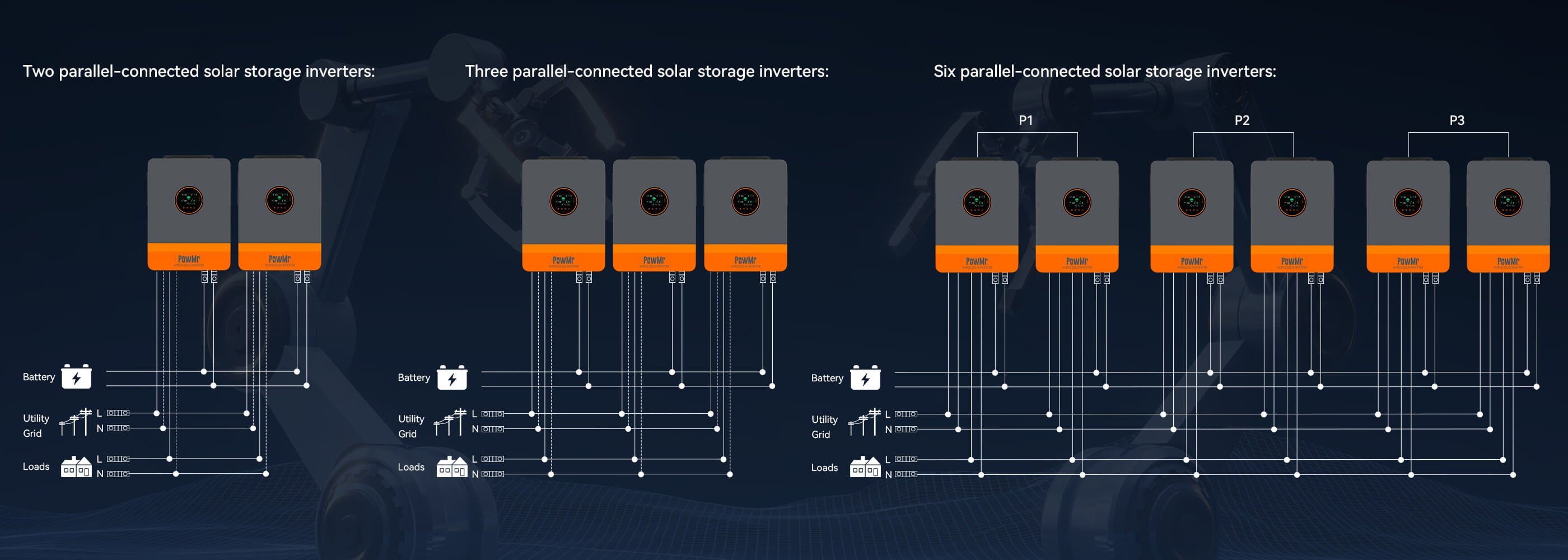

Supports up to 6 inverters in parallel for a combined output of up to 60,000W. Parallel configuration enables two-phase or three-phase 208V output for larger systems and scalable commercial or industrial power applications.

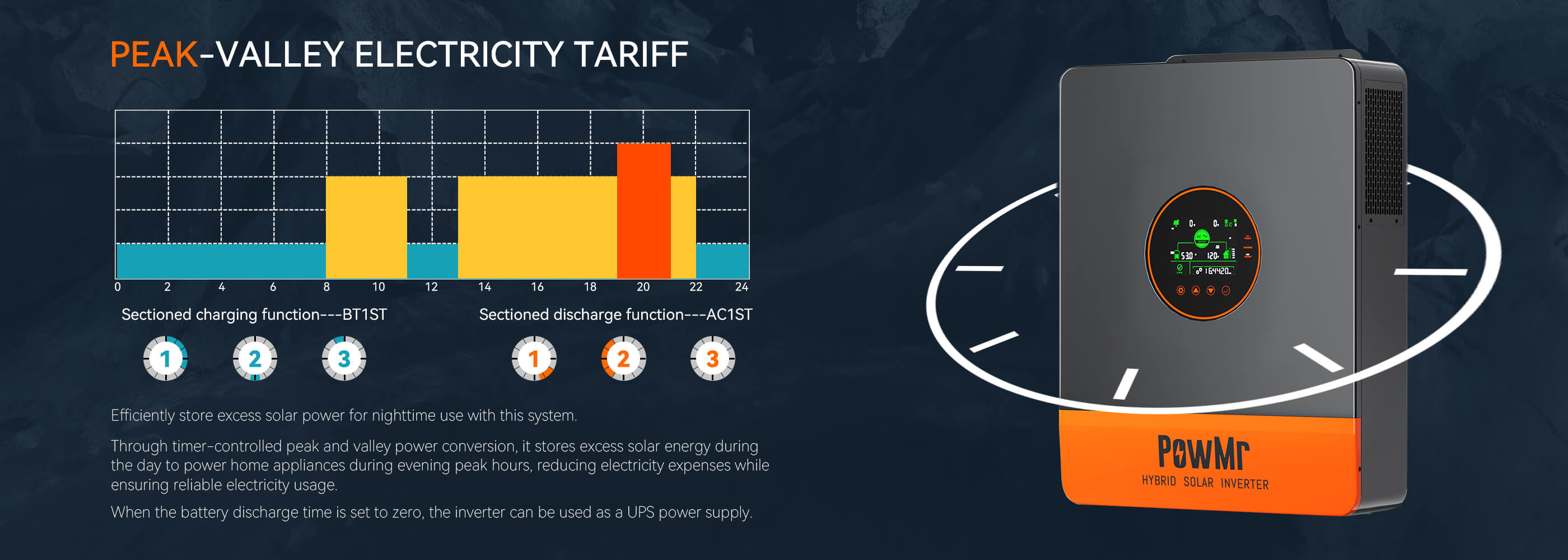

With a programmable timer, the inverter optimizes energy usage by shifting load between peak and off-peak periods. Features four charging modes (Solar Only, Mains Priority, Solar Priority, Hybrid) and two output modes (Utility Bypass and Inverter Output).
