Solar Inverter and Lithium Battery Matching Guide: Voltage, Capacity,

Matching a solar inverter with a lithium battery requires understanding four key system parameters: voltage compatibility, power and surge capacity, energy storage sizing (kWh/DoD), and BMS communication with protection limits.

An incorrect combination can lead to insufficient battery supply, frequent inverter alarms, or even system startup failure.These issues are especially common in off-grid homes, RV systems, and backup power applications, where voltage mismatches or inadequate capacity often cause system instability.

This guide breaks down the essential matching rules between inverters and lithium batteries, covering voltage ranges, kWh capacity calculations, depth of discharge (DoD), and real-world configuration examples—helping you achieve optimal system design and energy management.

Table of Content

Inverter Specs That Determine Battery Compatibility
Battery Capacity Sizing: Matching kWh Storage to Inverter Power and Daily Load
Practical Matching Example

Inverter Specs That Determine Battery Compatibility

A spec sheet is full of numbers—but which ones really matter? What is the difference between Rated rated and surge power, and how do voltage range, charging profile, and BMS communication affect lithium battery compatibility? Below, we break down the key inverter parameters where most system matching issues occur.

Rated Power vs. Peak/Surge Power Capacity

The rated power of a solar inverter indicates continuous output—typically 3kW, 5kW, or 8kW for residential systems. However, peak power or surge power capacity directly determines whether your lithium battery can support the load without triggering BMS protection.

Motors, water pumps, and refrigerators demand 2-3x their running watts at startup. A 5kW hybrid inverter with 10kW surge rating can handle these loads—but only if the lithium battery's BMS allows peak discharge current high enough to deliver that surge.

For example, a 12.8V 100Ah LiFePO4 battery with 100A continuous / 200A peak discharge (≈2,560W peak) cannot support a 10kW surge demand from a 48V system inverter. The BMS will cut output, leaving the inverter unable to start the appliance even with full battery charge.

Matching rule: Inverter surge power (W) ÷ Battery nominal voltage (V) = Required battery peak discharge current (A). Your battery's BMS peak threshold must exceed this value.

Input Voltage Range and Battery Voltage Compatibility

The battery voltage operating window of a solar inverter defines the acceptable DC voltage range from your battery bank. For lithium battery inverter pairing, this range must accommodate your battery's full charge and discharge curve—not just the nominal voltage.

A 12V LiFePO4 battery operates at 12.8V nominal with a working range of 10.8V–14.6V, while a 48V battery system (four 12V units in series) delivers 51.2V nominal, discharging down to 43.2V (0% SOC) and charging up to 57.6V–58.4V (100% SOC). If your inverter's battery low-voltage cut-off exceeds the battery's discharged voltage, the system will shut down prematurely even with remaining capacity. If the max charge voltage is too low, the battery never reaches full charge.

Matching rule: Inverter battery voltage low cut-off < Battery discharged voltage (0% SOC). Inverter max charge voltage ≥ Battery fully charged voltage (100% SOC).

Charge Profile Matching for LiFePO4 Batteries

Not every inverter is compatible with all lithium battery chemistries, regardless of nominal voltage matching."Standard inverters often default to lead-acid charging algorithms with three-stage charging (bulk, absorption, float). LiFePO4 batteries require CC/CV (Constant Current/Constant Voltage) profiles with precise voltage cutoffs: 14.2V–14.6V for 12V systems, no float stage, and strict overvoltage protection at 14.8V per 12V pack.

Using a lead-acid profile on lithium cells causes chronic overcharging (damaging cells via float voltage) or chronic undercharging (stopping at 13.8V, leaving capacity unused). Worse, some inverters lack BMS communication (CAN, RS485, or dry contact), meaning they cannot receive temperature, voltage, or fault data from the battery—creating a dangerous blind spot.

Matching rule: Confirm your inverter supports LiFePO4 charging profile or allows custom voltage setpoints. For hybrid inverter battery systems, prioritize models with active BMS communication to enable coordinated charge control and fault shutdown.

BMS Communication and Protection Protocols

Voltage matching and correct charge profiles ensure daily operation, but BMS communication determines what happens when something goes wrong. Lithium batteries rely on their Battery Management System(BMS) to monitor cell voltage, temperature, and current—cutting output when limits are exceeded. If the inverter cannot receive or respond to these signals, the battery and inverter operate in dangerous isolation.

Three communication levels exist. Level 1: No communication (basic inverters). The inverter charges blindly; the BMS may cut output unexpectedly, leaving you without power and no error code explaining why. Level 2: Dry contact signals (simple fault relay). The BMS tells the inverter "stop" but transmits no data—useful for emergency shutdown, useless for preventive adjustment. Level 3: Active protocols (CAN, RS485, Modbus). The inverter receives real-time voltage, current, temperature, and state-of-charge data, adjusting charge current or triggering controlled shutdown before the BMS needs to act.

Matching rule: For lithium battery inverter pairing, prioritize inverters with active BMS communication (CAN or RS485). At minimum, ensure dry contact compatibility so the BMS can force inverter shutdown during critical faults. Without this link, your "matched" system becomes two independent devices guessing at each other's state.

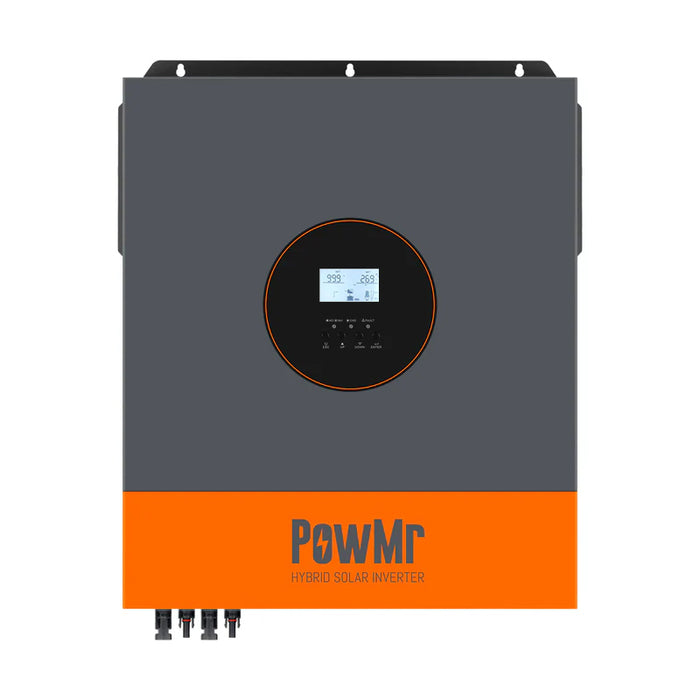

11kW All-In-One Solar Inverter

11kW hybrid solar inverter with dual MPPT controllers, pure sine wave output, and intelligent battery charging support.

View Product

100Ah 51.2V Rack Mount Lithium Battery

5.12kWh LiFePO4 battery with built-in BMS protection and communication support for residential energy storage systems.

View Product

Battery Capacity Sizing: Matching kWh Storage to Inverter Power and Daily Load

Matching voltage and charge profiles ensures compatibility, but battery capacity sizing determines whether your system lasts through the night, survives a cloudy day, or powers critical loads during an outage. Capacity is measured in kilowatt-hours (kWh) or ampere-hours (Ah), yet many users fixate on Ah ratings without converting to actual usable energy.

Start with your daily energy demand. A refrigerator drawing 200W for 24 hours consumes 4.8kWh; a water pump at 750W for 2 hours adds 1.5kWh. Total daily load: 6.3kWh. But your battery cannot deliver 100% of its rated capacity. LiFePO4 batteries typically allow 80% depth of discharge (DoD) for long cycle life—meaning a 10kWh battery yields only 8kWh usable energy. To cover 6.3kWh daily demand with 80% DoD, you need 7.9kWh minimum rated capacity—round up to 10kWh for cloudy-day autonomy.

Next, match capacity to inverter power profile, not just voltage. A 5kW inverter paired with a 5kWh battery creates a 1:1 power-to-energy ratio—fine for short backup, insufficient for overnight off-grid use. Industry practice recommends 2–4 hours of runtime at rated inverter power: a 5kW inverter ideally pairs with 10–20kWh battery capacity. Undersizing forces the battery to discharge at high C-rates (e.g., 1C or faster), reducing efficiency, heating cells, and triggering BMS current limits.

Matching rule: Calculate daily load (kWh) ÷ target DoD (%) (80% for LiFePO4) = Minimum battery capacity. Then verify: Battery capacity (kWh) ÷ Inverter rated power (kW) ≥ 2 hours runtime. If the ratio falls below 2, expect shortened battery life and potential BMS overload during peak demand.

Practical Matching Example: POW-HVM11KP + POW-LIO48100-3.5U

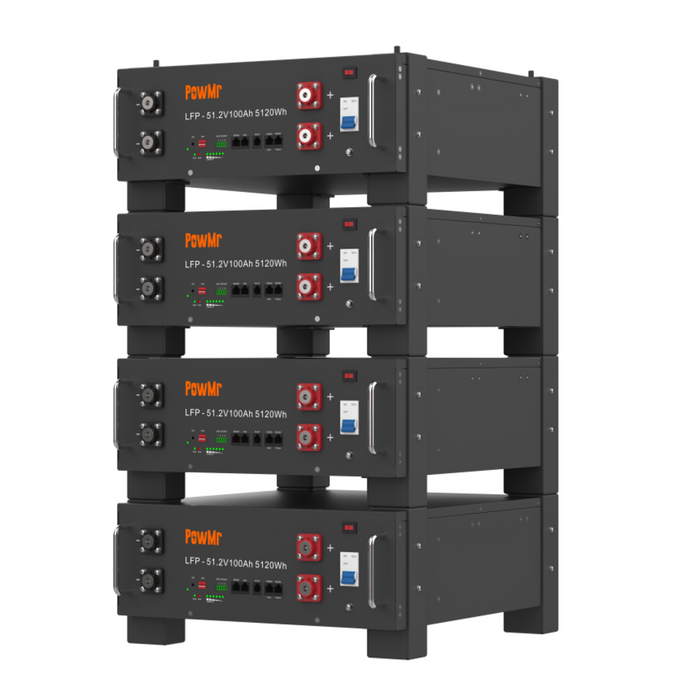

Consider a 5kW hybrid home backup system pairing the 11KW all-in-one Inverter (SKU: POW-HVM11KP) all-in-one solar inverter with a single 100Ah 51.2V lithium battery (SKU: POW-LIO48100-3.5U) 5.12kWh LiFePO4 battery module.

Voltage compatibility check: The 5.12kWh LiFePO4 battery operates at 51.2V nominal (16S LiFePO4 configuration), with a working range of approximately 43.2V–58.4V. The 11KW all-in-one Inverter features configurable battery voltage settings via LCD, allowing users to set the low-voltage cut-off and charge voltage to match this 48V-class lithium battery. However, since the inverter manual officially specifies lead-acid battery compatibility only, lithium pairing requires manual configuration of charge voltage to 57.6V (3.6V per cell) and disabling any float charge stage to prevent chronic overcharging.

Power and surge capacity check: The 5.12kWh LiFePO4 battery delivers 100A continuous discharge and 100A maximum charging current, translating to 5,120W continuous power at nominal voltage. For a 5kW inverter, this creates a tight 1:1 power-to-energy ratio—sufficient for short-duration backup but marginal for extended off-grid operation. The battery's BMS includes primary discharge protection at 110A and secondary protection at 200A, meaning brief surge demands above 5,120W may trigger BMS intervention if the inverter's 10kW surge rating exceeds what the single battery can deliver.

Capacity sizing reality: With 80% DoD, the usable capacity is 4.1kWh—enough to power essential loads (refrigerator, lights, router) for 4–6 hours, but insufficient for whole-home backup during extended outages. The 5.12kWh LiFePO4 battery supports parallel expansion up to 16 units (81.92kWh total), allowing gradual scaling. For reliable 5kW inverter operation, two batteries in parallel (10.24kWh) is recommended, achieving the 2-hour runtime rule at rated power and reducing individual battery stress.

Communication advantage: Unlike basic lithium batteries, the POW-LIO48100-3.5U features RS485/CAN/dry contact communication ports with integrated BMS protocols for inverter compatibility. If the POW-HVM11KP supports these interfaces, the battery can transmit real-time voltage, temperature, and fault data—enabling coordinated charge control and preventing the "blind charging" risk common in lead-acid-lithium mismatches.
