4200W DC 24V AC 220V All In One Solar Inverter
4200W DC 24V AC 220V All In One Solar Inverter
4200W DC 24V AC 220V All In One Solar Inverter
SKU: POW-HVM4.2M-24V-N

4200W DC 24V AC 220V All In One Solar Inverter

Sale price$339.00 USD Regular price$479.00 USD
Save 29%
4.8

4.2kw pure sine wave inverter with mppt solar charge controller
01

4.2kW Pure Sine Wave Hybrid Inverter

Efficient 4.2kW Pure Sine Wave Hybrid Inverter effortlessly converts AC 220V to DC 24V or vice versa, guaranteeing compatibility with the grid, solar panels and generator. Utilize the LCD setting to configure input voltage range for appliances and fine-tune battery charging current for optimal performance.

mppt solar charge contrller for 24v solar batteries
02

24V Built-In MPPT Solar Charge Controller

This integrated controller designed for exceptional compatibility with 24V lithium, lead-acid, and user-defined batteries combines an MPPT solar charge controller with an AC battery charger, providing efficient and rapid charging. With a maximum charging current of 140A (MPPT plus AC), it optimizes the charging process for your battery system.

working mode ofpow hvm3.6/4.2/6.2/8.2/10.2
03

Various Charging and Output Options

Experience versatility with our Inverter Charger, featuring 3 charging modes (Only Solar, Utility First, or Solar&Utility) and 2 output modes (Solar First, Utility First). Customize power delivery based on your power source preference. In Solar Priority Mode, the inverter intelligently switches between utility and battery, maximizing solar energy utilization by setting a specific battery voltage point.

charge controller with full system protection
04

Total System Safeguard

With robust protection features, it auto-restarts during AC power recovery, ensuring uninterrupted operation. Benefit from overload, over-temperature, and short circuit protection, safeguarding your system. The smart battery charger optimizes performance for longer lifespan.
01

4.2kW Pure Sine Wave Hybrid Inverter

Efficient 4.2kW Pure Sine Wave Hybrid Inverter effortlessly converts AC 220V to DC 24V or vice versa, guaranteeing compatibility with the grid, solar panels and generator. Utilize the LCD setting to configure input voltage range for appliances and fine-tune battery charging current for optimal performance.

02

24V Built-In MPPT Solar Charge Controller

This integrated controller designed for exceptional compatibility with 24V lithium, lead-acid, and user-defined batteries combines an MPPT solar charge controller with an AC battery charger, providing efficient and rapid charging. With a maximum charging current of 140A (MPPT plus AC), it optimizes the charging process for your battery system.

03

Various Charging and Output Options

Experience versatility with our Inverter Charger, featuring 3 charging modes (Only Solar, Utility First, or Solar&Utility) and 2 output modes (Solar First, Utility First). Customize power delivery based on your power source preference. In Solar Priority Mode, the inverter intelligently switches between utility and battery, maximizing solar energy utilization by setting a specific battery voltage point.

04

Total System Safeguard

With robust protection features, it auto-restarts during AC power recovery, ensuring uninterrupted operation. Benefit from overload, over-temperature, and short circuit protection, safeguarding your system. The smart battery charger optimizes performance for longer lifespan.

4.2kw pure sine wave inverter with mppt solar charge controllermppt solar charge contrller for 24v solar batteriesworking mode ofpow hvm3.6/4.2/6.2/8.2/10.2charge controller with full system protection

PowMr Inverter Charger Specification

Important Notice:
Please Read Product Manual Before Buying. Detailed specifications and features provided. Contact our support team for assistance. Thank you for choosing us.

Model

POW-HVM4.2M-24V-N

Rated Load Power (W)

4200

Ac Out Put (V)

220 (±5% Ajustable)

DC Out Put (V)

24

Phase

Single Phase

You may also like

Customer Reviews

Based on 38 reviews
92%
(35)
0%
(0)
5%
(2)
3%
(1)
0%
(0)
N
Nick
Bypass dont work

Hello. Please advise. I have purchased several of these inverters. However, the bypass does not work on any of them. The settings were made according to the instructions. When charging is supplied to the battery, the inverter turns off the main power output and secondary too.
Output source priority set to USB\SUB don`t make any sense

K
Katy
NECESITO MANUAL EN ESPAÑOL

Necesito el manual de éste equipo en idioma español. Inversor híbrido de 3600w. Pow LVM 3.6M- 24V

Actualmente, no tenemos el manual en español del inversor Pow LVM 3.6M-24V de 3600W, pero ya está en proceso.

I
Ivan
The fans are very noisy when operating in bypass mode

My old inverter in bypass mode worked very quietly and did not make noise. After I replaced it with the PowMr 4.2 kW model, I cannot achieve silent operation of the inverter in bypass mode with a load of up to 300 watts. Even without a connected load, it is just as noisy fans. How can this be fixed?

Off-grid inverters do inherently produce some noise, and factors like high ambient temperature and dust can increase fan noise. I recommend installing the inverter in a location away from resting areas, with good ventilation, and ideally out of direct sunlight to help minimize fan operation and noise.

G
Gnio
Consommation inmormal

bonjour j'ai un problème de réglage j'ai 2A qui rentre dans onduleur 0A qui en ressort alors que j'ai désactivé la charge de la batterie par le secteur. est-ce qu'il y a un autre réglage à faire pour éviter cette consommation de 2 A

Merci

Dear Customer，
It's normal, as the inverter has self-consumption. This is the energy it requires to maintain its operation.

M
M E

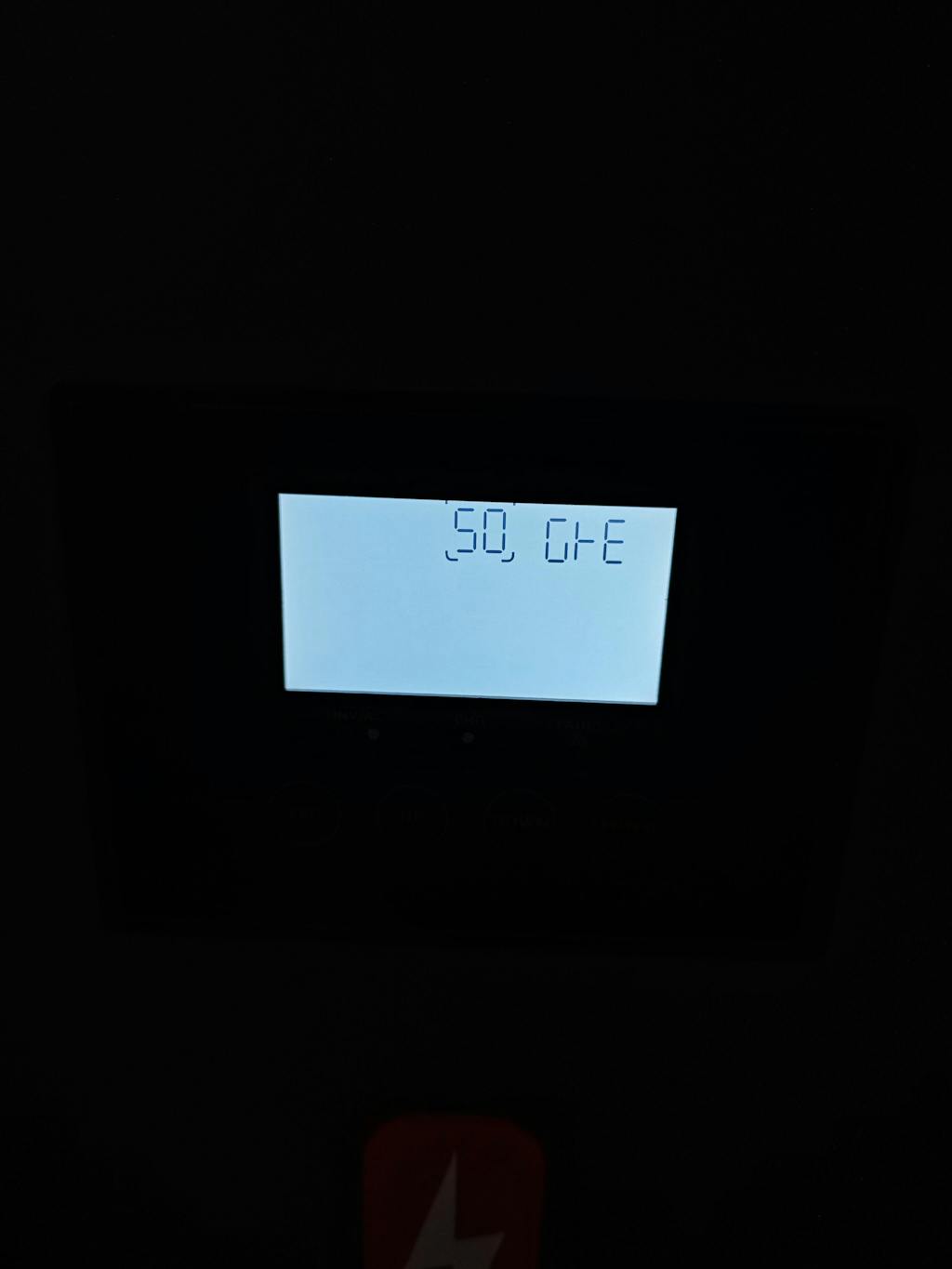

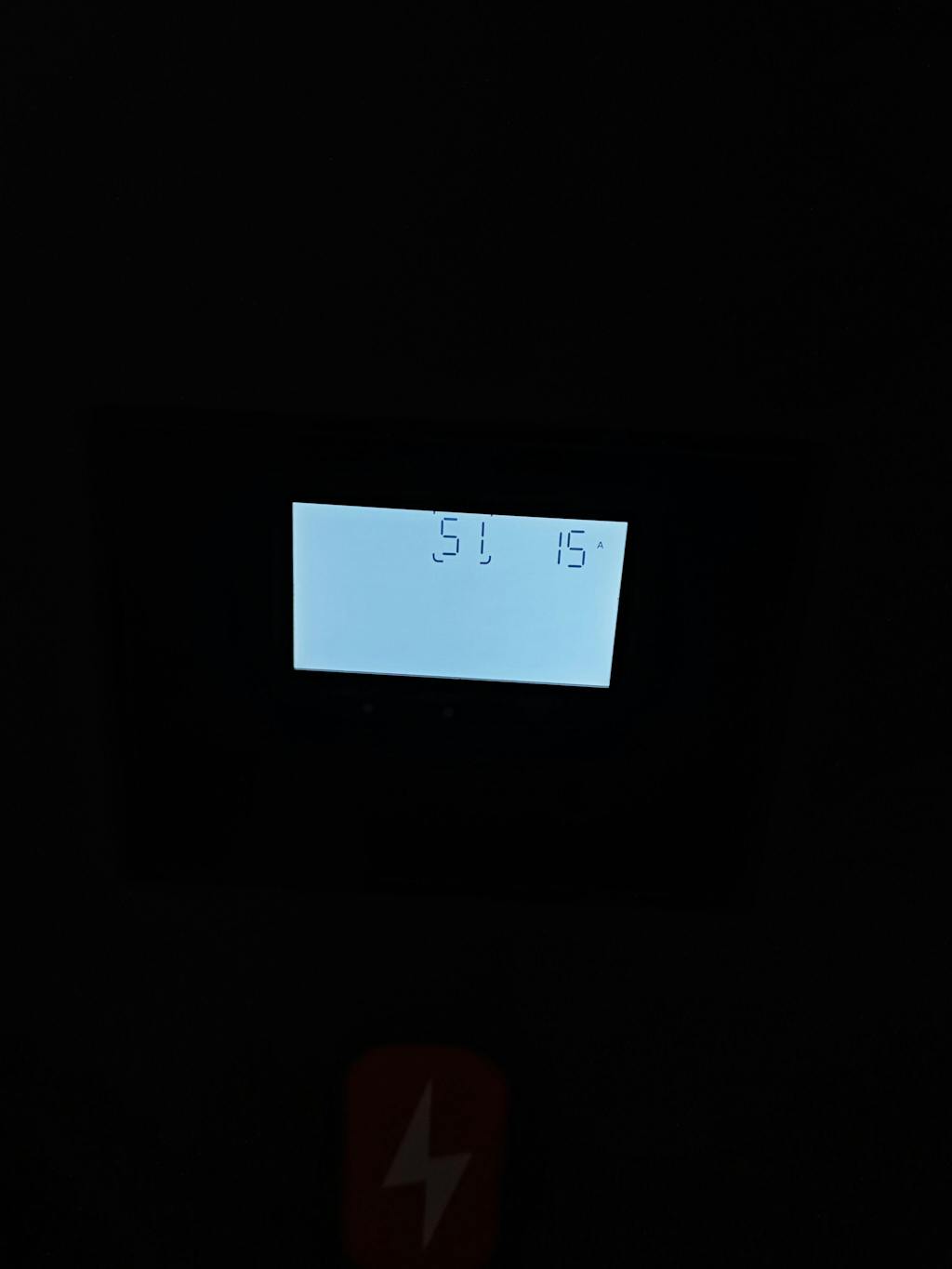

Something is sting on the meniu…

I have 43 settings to inverter and 42 settings in the manual… what is 43??!! I set “48” to the setting 43, it is minimum posibile…
Other functions are setting from 5 to 5, plus 5…, not 1 by 1, plus 1…

The 43rd item is the BMS communication address setting. Setting it to 48 by default is fine.
