وحدة إدارة المخزون: POW-K4880-H

متحكم شحن شمسي MPPT بجهد 12 فولت/24 فولت/48 فولت و80 أمبير

السعر بعد الخصم$239.00 USD السعر قبل الخصم$289.00 USD
وفِّر 17%

01

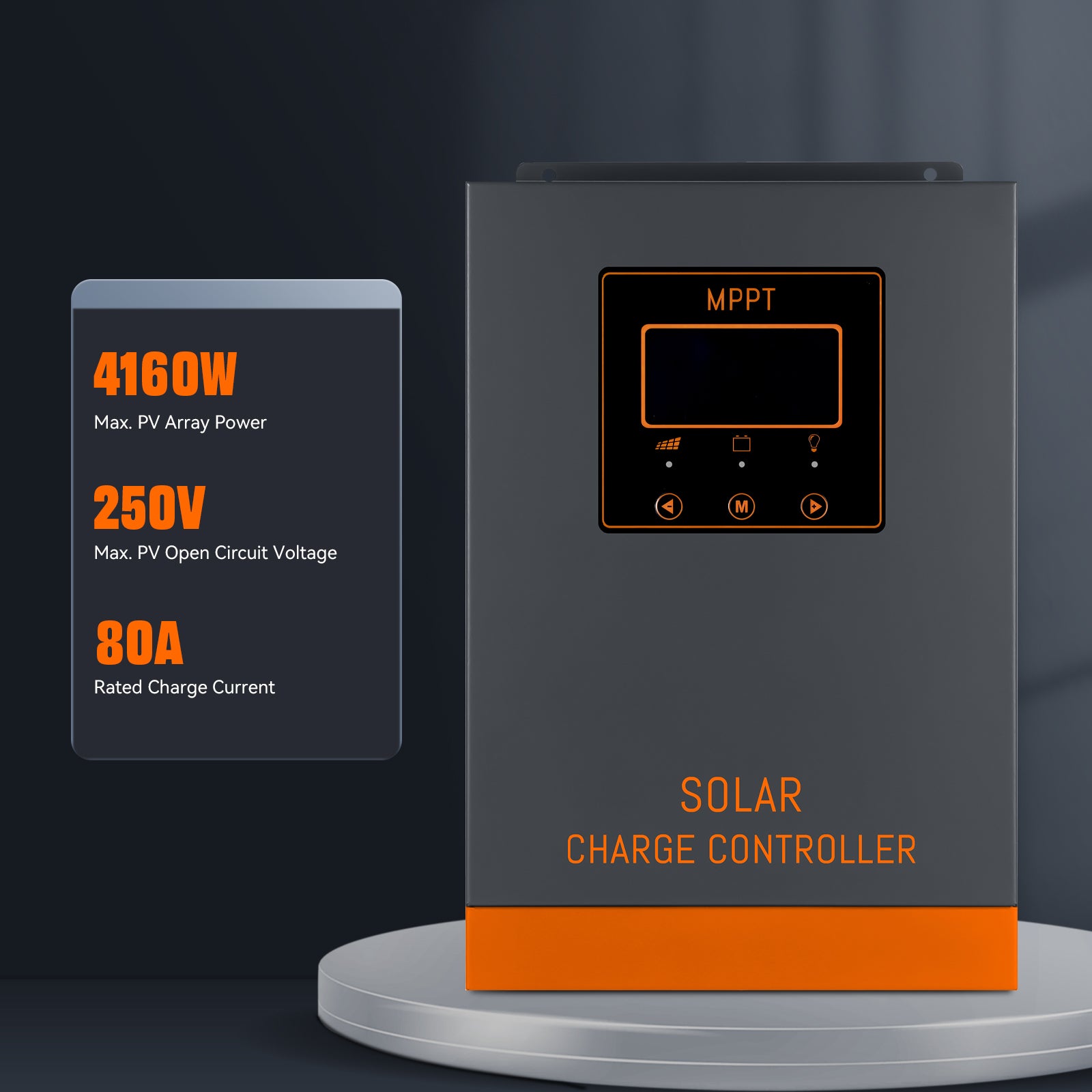

80A 250V MPPT Solar Charge Controller

This 80A solar charge controller utilizes advanced MPPT (Maximum Power Point Tracking) technology to optimize energy harvest in real time by precisely monitoring the voltage and current output from the solar panels. With a maximum PV input voltage of 250V, it supports more panels connected in series, which significantly reduces overall wiring losses and simplifies system installation. This not only enhances charging efficiency but also improves overall system performance and reliability.

02

Versatile Battery Compatibility

Different types of batteries have varying requirements for charging current. The customizable charging current limit ensures compatibility with a wide range of battery types, providing safe and efficient charging. The controller automatically detects 12V, 24V, and 48V system voltages, while 36V systems can be manually configured for flexible setup.

03

Multiple Electronic Protections

This MPPT solar charge controller offers comprehensive protection against PV short circuit, reverse polarity, battery overvoltage, overdischarge, load overcurrent, load short circuit, and over-temperature conditions to keep your system safe at all times. The intuitive LCD screen allows effortless adjustment of charging mode parameters to meet your requirements.

04

40A DC Load Output

This 80A MPPT solar charge controller features advanced MPPT technology with a tracking efficiency of up to 99% and a peak conversion efficiency of up to 97%. It maximizes solar energy utilization and ensures optimal charging performance. Additionally, it supports a 40A DC load output, providing reliable power directly to connected DC loads.
01

80A 250V MPPT Solar Charge Controller

This 80A solar charge controller utilizes advanced MPPT (Maximum Power Point Tracking) technology to optimize energy harvest in real time by precisely monitoring the voltage and current output from the solar panels. With a maximum PV input voltage of 250V, it supports more panels connected in series, which significantly reduces overall wiring losses and simplifies system installation. This not only enhances charging efficiency but also improves overall system performance and reliability.

02

Versatile Battery Compatibility

Different types of batteries have varying requirements for charging current. The customizable charging current limit ensures compatibility with a wide range of battery types, providing safe and efficient charging. The controller automatically detects 12V, 24V, and 48V system voltages, while 36V systems can be manually configured for flexible setup.

03

Multiple Electronic Protections

This MPPT solar charge controller offers comprehensive protection against PV short circuit, reverse polarity, battery overvoltage, overdischarge, load overcurrent, load short circuit, and over-temperature conditions to keep your system safe at all times. The intuitive LCD screen allows effortless adjustment of charging mode parameters to meet your requirements.

04

40A DC Load Output

This 80A MPPT solar charge controller features advanced MPPT technology with a tracking efficiency of up to 99% and a peak conversion efficiency of up to 97%. It maximizes solar energy utilization and ensures optimal charging performance. Additionally, it supports a 40A DC load output, providing reliable power directly to connected DC loads.
