20/30/50/100KWH High Voltage Cabinet Energy Storage Battery

وحدة إدارة المخزون: POW-HVC-20

بطارية تخزين الطاقة في خزانة جهد عالي 20/30/50/100 كيلو واط ساعي

$4,199.00 USD

$4,599.00 USD

وفِّر 9%

الطاقة:

204.8V 20.48KWH

204.8V 20.48KWH307.2V 30.72KWH512V 51.2KWH1024V 102.4KWH

متغير

الكمية:

PowMr POW-HVC Series is a rack-mounted high-voltage LiFePO4 battery system with standard 19-inch cabinet design, featuring 51.2V/100Ah modules (5.12kWh each), scalable from 4 to 14 modules in series and up to 8 clusters in parallel, covering 204.8V~1024V and 20.48kWh~102.4kWh. With triple-layer BMS, thermal management, fire suppression, and CAN/RS485 communication, it targets commercial & industrial energy storage, solar-storage integration, grid peak shaving, data center UPS, and large-scale microgrid applications.

نظرة عامة

Long-Life, Space-Saving Modular Design

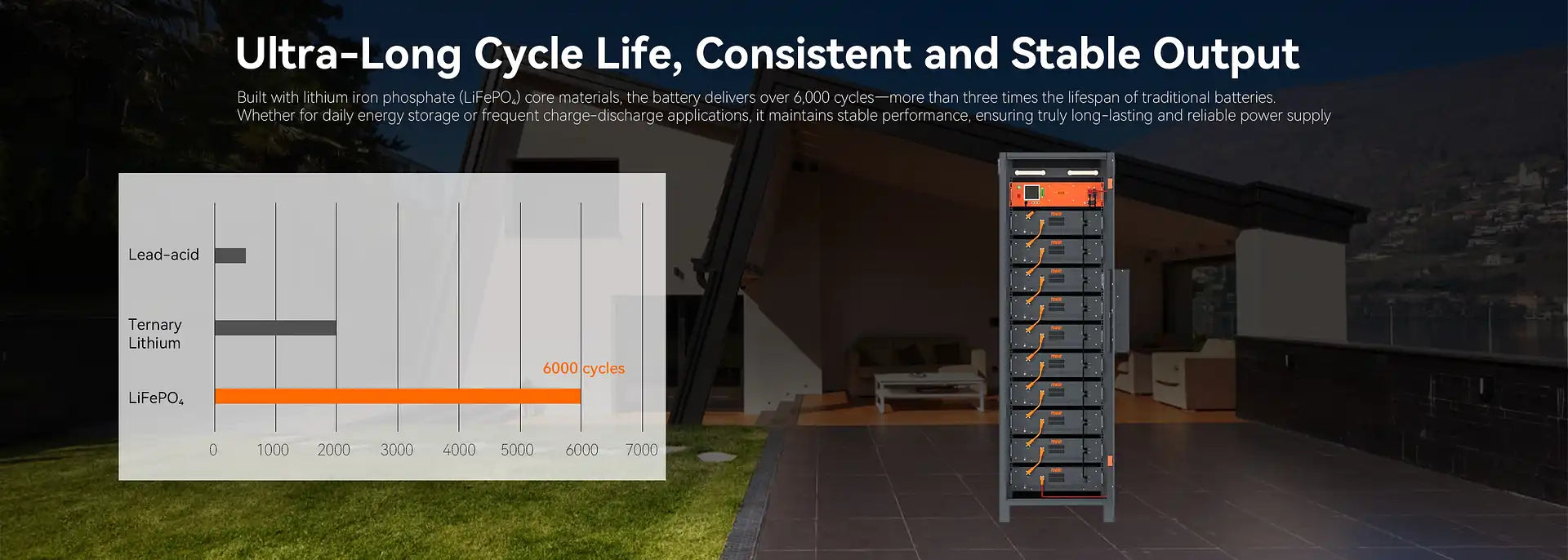

Delivers over 6,000 cycles of reliable performance, featuring a a cabinet-style stackable structure that saves space, simplifies installation and maintenance, and allows easy capacity expansion to match evolving energy needs.

Safe, Efficient Operation with Smart Cell Balancing

Features a low-voltage soft-start design to ensure safe, stable power-on and reduced standby losses, combined with intelligent cell balancing that optimizes each lithium cell for longer life, higher efficiency, and more reliable performance.

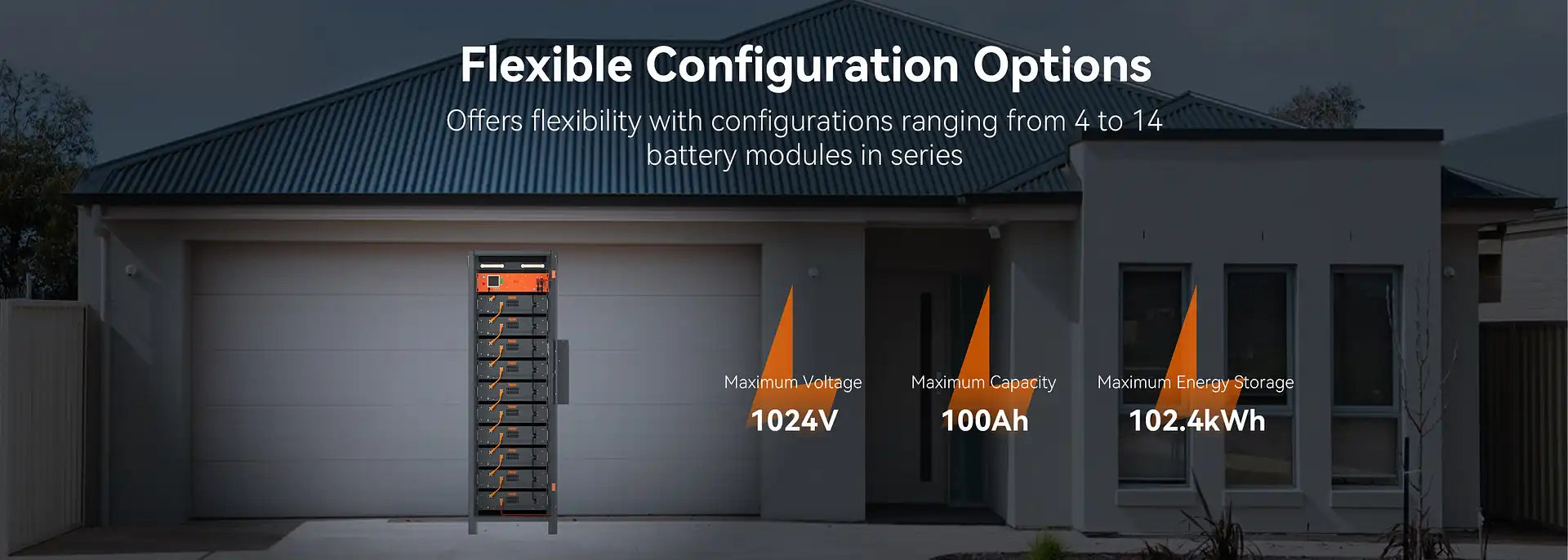

Flexible Modular & Scalable Design

Built with standard 5.12kWh battery modules, the system supports 4–14 modules in series for flexible voltage and capacity configuration. With up to 8 clusters in parallel, it delivers scalable energy storage and power to meet growing application demands.

Advanced BMS Protection

Equipped with a high-performance BMS providing comprehensive protection against overcharge, overdischarge, overcurrent, and temperature abnormalities. Ensures stable communication with the host system, enhancing safety and reducing the risk of battery damage or fire.
